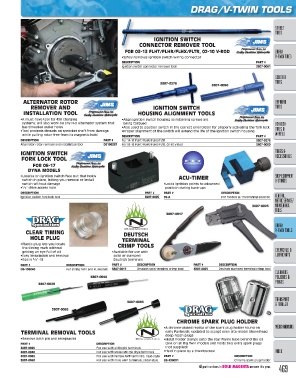

Page 469 - Tires 2017

DRAG/V-TWIN TOOLS

STREET
TIRES
IGNITION SWITCH
CONNECTOR REMOVER TOOL
FOR 03‑13 FLHT/ FLHR/ FLHX/ FLTR, 02‑10 V‑ROD DRAG/
•Safely removes ignition switch wiring connector V-TWIN TIRES
DESCRIPTION PART #
Ignition switch connector remover tool 3807‑0061

SCOOTER
3807‑0276 TIRES
3807‑0050

ALTERNATOR ROTOR OFFROAD
REMOVER AND IGNITION SWITCH TIRES
INSTALLATION TOOL HOUSING ALIGNMENT TOOLS
•A must-have tool for 45A charging •Align ignition switch housing as retaining screws are
systems; will also work on any H-D alternator system that being torqued ATV/UTV
has threaded puller holes •Also used to position switch in the correct orientation for properly activating the fork lock TIRES &
•Tool protects threads on sprocket shaft from damage •Proper alignment of the switch will extend the life of the ignition switch housing
while pulling rotor free from its magnetic hold DESCRIPTION PART # WHEELS
DESCRIPTION PART # For 14-17 FLHT/ FLHR/ FLHX/ FLTR 3807‑0276
Alternator rotor removal and installation tool DS196287 For 03-13 FLHT/ FLHR/ FLHX/ FLTR, 02-10 V-Rod 3807‑0050
TUBES &
IGNITION SWITCH ACCESSORIES
FORK LOCK TOOL
FOR 06‑17
DYNA MODELS
•Locates on ignition switch face nut that holds ACU‑TIMER SHOP EQUIPMENT
switch in place, letting you remove or install & STANDS
switch without damage •Locks ignition points to advanced
• /8” drive access hole position during tune-ups
3
DESCRIPTION PART # PART # DESCRIPTION
Ignition switch fork lock tool 3807‑0095 SS‑A For models w/ mechanical advance GENERAL,
METRIC SERVICE/
3807‑0025 MAINTENANCE
TOOLS
3807‑0017

DRAG/
CLEAR TIMING DEUTSCH V-TWIN TOOLS
HOLE PLUG TERMINAL
•Plastic plug lets you locate CRIMP TOOLS
the timing mark without CHEMICALS &
getting an eye full of oil •Available for use with
•Easy installation and removal solid or stamped LUBRICANTS
•Size is /8”-18 Deutsch terminals
5
PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION
DS‑196040 For all Big Twin and XL models 3807‑0017 Deutsch solid terminal crimp tool 3807‑0025 Deutsch stamped terminal crimp tool
CLEANERS,
3807‑0040 POLISHES &
PAINTS
3807‑0029

TRANSPORT
3807‑0063
& TRAILER
3807‑0062
CHROME SPARK PLUG HOLDER
•A chrome-plated replica of the spark plug holder found on MERCHANDISING
TERMINAL REMOVAL TOOLS early Panheads, updated to accept even late-model Shovelhead
deep-reach plugs
•Remove both pin and receptacles •Metal holder clamps onto the rear frame tube behind the oil
PART # DESCRIPTION tank on all Big Twin models and holds two extra spark plugs
3807‑0029 For use with all Delphi terminals (not supplied)
3807‑0040 For use with Molex MX-150 style terminals •Held in place by a thumbscrew INDEX
3807‑0062 For use with female AMP terminals, rigid-style PART # DESCRIPTION
3807‑0063 For use with male AMP terminals, slider-style DS‑196091 Chrome spark plug holder

469
All part numbers in BOLD MAGENTA are new this year.
