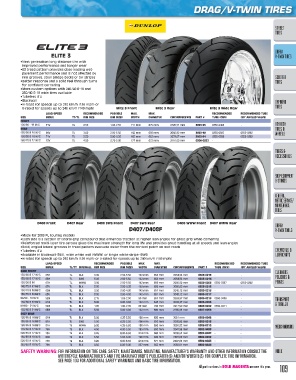

Page 109 - Tires 2017

DRAG/V-TWIN TIRES

STREET
TIRES

DRAG/
ELITE 3 V-TWIN TIRES
•Next generation long‑distance tire with
improved performance and longer wear
•E3 tread pattern provides class‑leading wet‑
pavement performance and is not affected by
rain grooves, steel bridge decks or tar stripes SCOOTER
•Better response and a solid feel through turns TIRES
for confident cornering
•More custom options with 240/40 R 18 and
250/40 R 18 wide tires available
•Tubeless (TL)
•Blackwall OFFROAD
•H‑rated for speeds up to 210 km/h (130 mph) or TIRES
V‑rated for speeds up to 240 km/h (149 mph) Elite 3 Front Elite 3 Rear Elite 3 Wide Rear
LOAD/ SPEED RECOMMENDED POSSIBLE MAX. MAX. RECOMMENDED RECOMMENDED TUBE
SIZE INDEX TT/TL RIM SIZE RIM SIZES WIDTH DIAMETER CIRCUMFERENCE PART # TUBE (CMV) (90° ANGLED VALVE)
FRONT
100/90 ‑ 19 M/C 51V TL 2.50 1.85‑2.50 111 mm 675 mm 2120,51 mm 3023‑25 0350‑0405 ‑ ATV/UTV
REAR TIRES &
130/90 B 16 M/C 64V TL 3.00 2.50‑3.50 142 mm 656 mm 2060,82 mm 3023‑40 0350‑0387 0350‑0382 WHEELS
150/80 B 16 M/C 71V TL 3.50 3.00‑4.25 165 mm 662 mm 2079,67 mm 3023‑91 0350‑0386 0350‑0382
160/70 B 17 M/C 73V TL 4.50 3.75‑5.00 177 mm 672 mm 2111,09 mm 0306‑0232 ‑ ‑

TUBES &
ACCESSORIES

SHOP EQUIPMENT
& STANDS

GENERAL,
METRIC SERVICE/
MAINTENANCE
TOOLS

D408 Front D407 Rear D408 SWS Front D407 SWS Rear D408 WWW Front D407 WWW Rear DRAG/
D407/ D408F V-TWIN TOOLS
•Made for 2009 FL touring models
•Each side is a section of lateral‑grip compound that enhances traction at higher lean angles for great grip while cornering
•Reinforced multi‑layer tire carcass gives tire maximum strength for long life and provides great handling at all speeds and lean angles
•Bold, angled lateral grooves in tread pattern evacuate water from the contact patch on wet roads
•Tubeless (TL) CHEMICALS &
•Available in blackwall (BLK), wide white wall (WWW) or single white stripe (SWS) LUBRICANTS
•H‑rated for speeds up to 210 km/h (130 mph) or V‑rated for speeds up to 240 km/h (149 mph)
LOAD/ SPEED RECOMMENDED POSSIBLE MAX. MAX. RECOMMENDED RECOMMENDED TUBE
SIZE INDEX TL/TT SIDEWALL RIM SIZE RIM SIZES WIDTH DIAMETER CIRCUMFERENCE PART # TUBE (CMV) (90° ANGLED VALVE)
D408 FRONT CLEANERS,
130/80 B 17 M/C 65H TL BLK 3.00 2.50‑3.50 142 mm 654 mm 2054,54 mm 0305‑0213 ‑ ‑ POLISHES &
130/80 B 17 M/C 65H TL SWS 3.00 2.50‑3.50 142 mm 654 mm 2054,54 mm 0305‑0214 ‑ ‑
130/90 B 16 67H TL WWW 3.00 2.50‑3.50 142 mm 656 mm 2060,82 mm 0305‑0265 0350‑0387 0350‑0382 PAINTS
140/75 R 17 M/C 67V TL BLK 3.50 3.50‑4.25 149 mm 656 mm 2060,82 mm 0305‑0215 ‑ ‑
130/70 B 18 M/C 63H TL BLK 3.50 3.00‑4.00 142 mm 651 mm 2045,12 mm 0305‑0216 ‑ ‑
130/70 R 18 M/C 63V TL BLK 3.50 3.00‑4.00 142 mm 651 mm 2045,12 mm 0305‑0217 ‑ ‑
90/90 ‑ 19 M/C 52H TL BLK 2.15 1.85‑2.50 99 mm 657 mm 2063,97 mm 0305‑0219 0350‑0408 ‑ TRANSPORT
130/60 B 19 M/C 61H TL BLK 3.00 3.00‑4.00 142 mm 645 mm 2026,27 mm 0305‑0266 ‑ ‑ & TRAILER
MH90 ‑ 21 M/C 54H TL BLK 1.85 1.60‑2.15 89 mm 706 mm 2217,90 mm 0305‑0222 0350‑0411 ‑
130/60 B 21 M/C 63H TL BLK 3.50 3.00‑4.00 142 mm 699 mm 2195,91 mm 0307‑0059 ‑ ‑
D407 REAR
180/65 B 16 M/C 81H TL BLK 5.00 4.25‑5.50 198 mm 656 mm 2061 mm 0308‑0048 ‑ ‑
180/65 B 16 M/C 81H TL SWS 5.00 4.25‑5.50 198 mm 656 mm 2060,82 mm 0306‑0218 ‑ ‑
180/65 B 16 M/C 81H TL WWW 5.00 4.25‑5.50 198 mm 656 mm 2060,82 mm 0306‑0219 ‑ ‑ MERCHANDISING
170/60 R 17 M/C 78H TL BLK 4.50 4.00‑5.50 185 mm 650 mm 2041,98 mm 0302‑0438 ‑ ‑
200/55 R 17 M/C 78V TL BLK 6.25 6.00‑6.50 214 mm 668 mm 2098,52 mm 0302‑0442 ‑ ‑
180/55 B 18 M/C 80H TL BLK 5.50 5.50‑6.00 196 mm 669 mm 2101,66 mm 0306‑0222 ‑ ‑
200/50 R 18 M/C 76V TL BLK 6.25 6.00‑6.50 214 mm 671 mm 2107,95 mm 0302‑0443 ‑ ‑
240/40 R 18 M/C 79V TL BLK 8.50 8.00‑9.00 257 mm 663 mm 2082,81 mm 0302‑0444 ‑ ‑

SAFETY WARNING: FOR INFORMATION ON TIRE CARE, SAFETY, MAINTENANCE, MOUNTING, MANUFACTURER’S WARRANTY AND OTHER INFORMATION CONSULT THE INDEX
MOTORCYCLE MANUFACTURER’S AND TIRE MANUFACTURER’S PUBLICATION(S) AND/OR WEBSITE(S) FOR COMPLETE TIRE INFORMATION.
SEE PAGE 103 FOR ADDITIONAL SAFETY WARNINGS AND BASIC TIRE INFORMATION.
109
All part numbers in BOLD MAGENTA are new this year.
