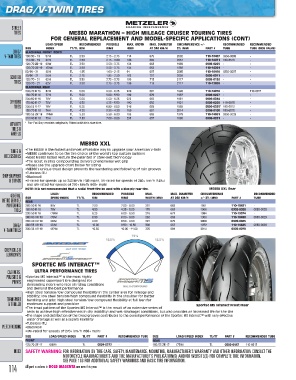

Page 114 - Tires 2017

DRAG/V-TWIN TIRES

STREET
TIRES ME880 MARATHON – HIGH MILEAGE CRUISER TOURING TIRES
FOR GENERAL REPLACEMENT AND MODEL‑SPECIFIC APPLICATIONS (CONT)
LOAD/ SPEED RECOMMENDED POSSIBLE MAX. WIDTH MAX. DIAMETER CIRCUMFERENCE +/‑ RECOMMENDED RECOMMENDED
SIZE INDEX TT/TL RIM RIMS (MM) AT 240 KM/H 2% (MM) PART # TUBE TUBE (SIDE VALVE)
DRAG/ BLACKWALL FRONT (CONT)
V-TWIN TIRES 100/90 ‑ 19 57H TL 2.50 2.15 ‑ 2.75 114 675 2002 110‑10407 0350‑0086 ‑
110/90 ‑ 19 62H TL 2.50 2.15 ‑ 3.00 126 695 2057 110‑10411 110‑6516 ‑
120/70 ZR 19 60W TL 3.50 3.50 ‑ 3.75 134 663 1969 0305‑0225 ‑ ‑
120/70 ZR 19 (60W) TL 3.50 3.50 ‑ 3.75 134 663 1969 110‑14201 ‑ ‑
80/90 ‑ 21 48H TL 1.85 1.60 ‑ 2.15 91 687 2045 110‑10410 0350‑0087 ‑
SCOOTER 90/90 ‑ 21 54H TL 2.15 1.85 ‑ 2.50 103 707 2099 0305‑0011 ‑ ‑ ‑ ‑
3.50
2117
713
2.75 ‑ 3.75
136
0305‑0133
120/70 ‑ 21
TL
62H
TIRES 120/70 ‑ 21 62V TL 3.50 2.75 ‑ 3.75 136 713 2117 110‑12893 ‑ ‑
BLACKWALL REAR
200/70 B 15 82H TL 5.50 4.50 ‑ 6.25 229 681 1996 110‑14018 ‑ 110‑6611
180/70 R 16 77H TL 5.00 5.00 ‑ 5.50 199 676 1987 0306‑0227 ‑ ‑
200/60 R 16 79V TL 5.50 5.50 ‑ 6.25 222 662 1951 0306‑0234 ‑ ‑
OFFROAD 170/60 R 17 78V TL 4.50 4.25 ‑ 5.50 190 650 1921 0306‑0228 110‑6613 ‑
TIRES 200/55 R 17 78V TL 6.25 6.00 ‑ 6.50 216 668 1969 0306‑0229 1 110‑6613 ‑
150/70 B 18 76H TL 4.25 3.50 ‑ 4.50 169 681 2014 0306‑0108 110‑6515 ‑
180/55 ZR 18 (74W) TL 5.50 5.50 ‑ 6.00 195 669 1978 110‑14351 0350‑0028 ‑
210/40 R 18 73H TL 7.50 7.00 ‑ 8.00 231 637 1888 0306‑0231 ‑ ‑
ATV/UTV 1 For Fat Boy models originally fitted with this size tire.
TIRES &
WHEELS
ME880 XXL
TUBES & •The ME880 is the fastest and most affordable way to upgrade your American V‑twin
ACCESSORIES •ME880 continues to be the tire choice of the world’s top custom builders
•Most ME880 radials feature the patented 0° steel‑belt technology
•The latest in silica compounding delivers phenomenal wet grip
•Please see the upgrade chart below for sizing
•ME880’s unique tread design prevents the wandering and following of rain grooves
•Tubeless (TL)
SHOP EQUIPMENT •Blackwall
& STANDS •V‑rated for speeds up to 240 km/h (149 mph), (V)‑rated for speeds of 240+ km/h (149+)
and (W)‑rated for speeds of 270+ km/h (168+ mph)
NOTE: It is not recommended that a radial front tire be used with a bias‑ply rear tire. ME880 XXL Rear
GENERAL, SIZE LOAD/ TT/TL RECOMMENDED POSSIBLE MAX. MAX. DIAMETER CIRCUMFERENCE PART # RECOMMENDED
WIDTH (MM)
AT 240 KM/H
+/‑ 2% (MM)
RIMS
SPEED INDEX
RIM
TUBE
METRIC SERVICE/ REAR
MAINTENANCE 240/50 R 16 84V TL 7.50 7.00 ‑ 8.00 261 662 1951 110‑10431 ‑
TOOLS 160/60 R 18 76V TL 4.50 4.25 ‑ 5.00 178 663 1960 0302‑0028 0350‑0028
200/50 R 18 (76W) TL 6.25 6.00 ‑ 6.50 216 671 1984 110‑13074 ‑
240/40 VR 18 (79V) TL 8.50 8.00 ‑ 9.00 262 663 1960 110‑10430 0350‑0029
260/40 VR 18 (84V) TL 9.00 8.50 ‑ 9.50 281 679 2008 0302‑0055 ‑
DRAG/ 280/35 VR 18 (84V) TL 10.00 9.50 ‑ 10.50 306 667 1972 110‑14885 0350‑0029
V-TWIN TOOLS 300/35 VR 18 (87W) TL 10.50 10.00 ‑ 11.00 325 681 2014 0302‑0070 ‑

CHEMICALS &
LUBRICANTS
SPORTEC M5 INTERACT™
CLEANERS, ULTRA PERFORMANCE TIRES
POLISHES & •Sportec M5 Interact™ is the most highly
PAINTS engineered supersport tire designed for
demanding riders who face all riding conditions
and demand the best performance
•High steel tension/ low compound flexibility in the center area for mileage and
stability; low steel tension/ high compound flexibility in the shoulder for better
TRANSPORT handling and grip; high steel tension/ low compound flexibility at full lean for
& TRAILER maximum support and precision Sportec M5 Interact Front/ Rear
•The tread pattern of the Sportec M5 Interact™ is the result of an extensive series of
tests to achieve high effectiveness in dry (stability) and wet (drainage) conditions, but also provides an increased life for the tire
•The shape and distribution of the tread grooves contributes to the overall performance of the Sportec M5 Interact™ with very effective
water drainage as well as a superb flexibility
•Tubeless (TL)
MERCHANDISING •Blackwall
•(W)‑rated for speeds of 270+ km/h (168+ mph)
SIZE LOAD/ SPEED INDEX TL/TT PART # RECOMMENDED TUBE SIZE LOAD/ SPEED INDEX TL/TT PART # RECOMMENDED TUBE
FRONT REAR
120/70 ZR 17 (58W) TL 0301‑0272 ‑ 180/55 ZR 17 (73W) TL 0302‑0447 110‑6613

INDEX SAFETY WARNING: FOR INFORMATION ON TIRE CARE, SAFETY, MAINTENANCE, MOUNTING, MANUFACTURER’S WARRANTY AND OTHER INFORMATION CONSULT THE
MOTORCYCLE MANUFACTURER’S AND TIRE MANUFACTURER’S PUBLICATION(S) AND/OR WEBSITE(S) FOR COMPLETE TIRE INFORMATION.
SEE PAGE 103 FOR ADDITIONAL SAFETY WARNINGS AND BASIC TIRE INFORMATION.
114 All part numbers in BOLD MAGENTA are new this year.
