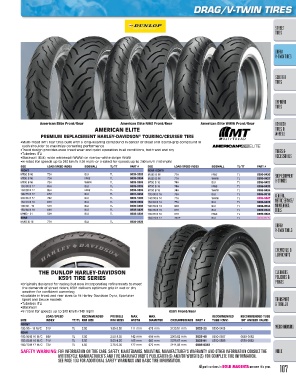

Page 107 - Tires 2017

DRAG/V-TWIN TIRES

STREET
TIRES

DRAG/
V-TWIN TIRES

SCOOTER
TIRES

OFFROAD
TIRES

American Elite Front/Rear American Elite NWS Front/Rear American Elite WWW Front/Rear ATV/UTV
AMERICAN ELITE TIRES &
PREMIUM REPLACEMENT HARLEY‑DAVIDSON TOURING/ CRUISER TIRE WHEELS
®
•Multi‑Tread (MT) rear tires built with a long‑wearing compound in center of tread and lateral‑grip compound in
each shoulder to maximize cornering performance
•Tread design provides even tread wear and quiet operation in all conditions, both wet and dry TUBES &
•Tubeless (TL) ACCESSORIES
•Blackwall (BLK), wide whitewall (WWW) or narrow white stripe (NWS)
•H‑rated for speeds up to 210 km/h (130 mph) or V‑rated for speeds up to 240 km/h (149 mph)
SIZE LOAD/ SPEED INDEX SIDEWALL TL/TT PART # SIZE LOAD/ SPEED INDEX SIDEWALL TL/TT PART #
FRONT REAR (CONT)
MT90 B 16 72H BLK TL 0305‑0393 MU85 B 16 77H NWS TL 0306‑0426 SHOP EQUIPMENT
MT90 B 16 72H NWS TL 0305‑0394 MU85 B 16 77H WWW TL 0306‑0427
MT90 B 16 72H WWW TL 0305‑0395 MT90 B 16 74H BLK TL 0306‑0422 & STANDS
130/80 B 17 65H BLK TL 0305‑0305 MT90 B 16 74H NWS TL 0306‑0423
130/80 B 17 65H NWS TL 0305‑0306 MT90 B 16 74H WWW TL 0306‑0424
140/75 R 17 67V BLK TL 0301‑0633 130/90 B 16 73H BLK TL 0306‑0518 GENERAL,
200/55 R 17 78V BLK TL 0302‑1060 140/90 B 16 77H WWW TL 0306‑0467
130/70 B 18 63H BLK TL 0305‑0308 150/80 B 16 77H BLK TL 0306‑0428 METRIC SERVICE/
100/90 ‑ 19 57H BLK TL 0305‑0396 180/55 B 18 80H BLK TL 0306‑0554 MAINTENANCE
130/60 B 19 61H BLK TL 0305‑0425 180/65 B 16 81H BLK TL 0306‑0324 TOOLS
MH90 ‑ 21 54H BLK TL 0305‑0309 180/65 B 16 81H NWS TL 0306‑0325
REAR 160/70 B 17 73VF BLK TL 0306‑0572
MU85 B 16 77H BLK TL 0306‑0425
DRAG/
V-TWIN TOOLS

CHEMICALS &
LUBRICANTS

THE DUNLOP HARLEY‑DAVIDSON CLEANERS,
K591 TIRE SERIES POLISHES &
•Originally designed for racing but now incorporating refinements to meet PAINTS
the demands of street riders, K591 delivers optimum grip in wet or dry
weather for confident cornering
•Available in front and rear sizes to fit Harley‑Davidson Dyna, Sportster
Sport and Deuce models TRANSPORT
•Tubeless (TL) & TRAILER
•Blackwall
•V‑rated for speeds up to 240 km/h (149 mph) K591 Front/Rear
LOAD/ SPEED RECOMMENDED POSSIBLE MAX. MAX. RECOMMENDED RECOMMENDED TUBE
SIZE INDEX TT/TL RIM SIZE RIM SIZES WIDTH DIAMETER CIRCUMFERENCE PART # TUBE (CMV) (90° ANGLED VALVE)
FRONT
100/90 ‑ 19 M/C 51V TL 2.50 1.85‑2.50 111 mm 675 mm 2120,51 mm 3023‑25 0350‑0405 ‑ MERCHANDISING
REAR
130/90 B 16 M/C 64V TL 3.00 2.50‑3.50 142 mm 656 mm 2060,82 mm 3023‑40 0350‑0387 0350‑0382
150/80 B 16 M/C 71V TL 3.50 3.00‑4.25 165 mm 662 mm 2079,67 mm 3023‑91 0350‑0386 0350‑0382
160/70 B 17 M/C 73V TL 4.50 3.75‑5.00 177 mm 672 mm 2111,09 mm 0306‑0232 ‑ ‑

SAFETY WARNING: FOR INFORMATION ON TIRE CARE, SAFETY, MAINTENANCE, MOUNTING, MANUFACTURER’S WARRANTY AND OTHER INFORMATION CONSULT THE INDEX
MOTORCYCLE MANUFACTURER’S AND TIRE MANUFACTURER’S PUBLICATION(S) AND/OR WEBSITE(S) FOR COMPLETE TIRE INFORMATION.
SEE PAGE 103 FOR ADDITIONAL SAFETY WARNINGS AND BASIC TIRE INFORMATION.
107
All part numbers in BOLD MAGENTA are new this year.
