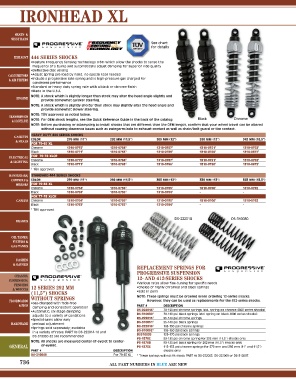

Page 738 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS
See chart
for details
EXHAUST 444 SERIES SHOCKS
•Feature Frequency Sensing Technology (FST) which allow the shocks to sense the
frequency of a bump and automatically adjust damping for superior ride quality
•Deflective disc valving
CARBURETORS •Adjust spring pre-load by hand, no special tool needed
& AIR FILTERS •Include a progressive rate spring and is high-pressure gas charged for
consistent performance
•Standard or heavy duty spring rate with a black or chrome finish
•Made in the U.S.A.
NOTE: A shock which is slightly longer than stock may alter the head angle slightly and
ENGINE provide somewhat quicker steering.
NOTE: A shock which is slightly shorter than stock may slightly alter the head angle and
provide somewhat slower steering.
NOTE: TÜV approved as noted below.
TRANSMISSION Black Chrome
& DRIVELINE NOTE: For OEM shock lengths, see the Quick Reference Guide in the back of the catalog.
NOTE: Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered
without causing clearance issues such as swingarm/ axle to exhaust contact as well as chain/ belt guard or tire contact.
HEAVY DUTY 444 SERIES SHOCKS
GASKETS
& SEALS COLOR 279 MM (11”) 292 MM (11,5”) 305 MM (12”) 330 MM (13”) 343 MM (13,5”)
FOR 79‑85 XL
Chrome 1310‑0772 1 1310‑0764 1 1310‑0787 1 1310‑0751 1 1310‑0752 1
Black 1310‑0771 1 1310‑0763 1 1310‑0786 1 1310‑0750 1 1310‑0872 1
ELECTRICAL FOR 79‑78 XLCR
& LIGHTING Chrome 1310‑0772 1 1310‑0764 1 1310‑0787 1 1310‑0751 1 1310‑0752 1
Black 1310‑0771 1 1310‑0763 1 1310‑0786 1 1310‑0750 1 1310‑0872 1
1 TÜV approved.
HANDLEBARS, STANDARD 444 SERIES SHOCKS
CONTROLS & COLOR 279 MM (11”) 292 MM (11,5”) 305 MM (12”) 330 MM (13”) 343 MM (13,5”)
MIRRORS FOR 79‑85 XL
Chrome 1310‑0754 1 1310‑0756 1 1310‑0785 1 1310‑0760 1 1310‑0762
Black 1310‑0753 1 1310‑0755 1 1310‑0784 1 ‑ ‑
FOR 77‑78 XLCR
CABLES Chrome 1310‑0754 1 1310‑0756 1 1310‑0785 1 1310‑0760 1 1310‑0762
Black 1310‑0753 1 1310‑0755 1 1310‑0784 1 ‑ ‑
1 TÜV approved.
DS-222014 DS-310030
BRAKES

OIL TANKS,
FILTERS &
GAS TANKS

DASHES
& GAUGES
REPLACEMENT SPRINGS FOR
PROGRESSIVE SUSPENSION
CHASSIS, 12- AND 412-SERIES SHOCKS
SUSPENSION,
FENDERS •Various rates allow fine-tuning for specific needs
& WHEELS 12 SERIES 292 MM •Choice of highly chromed and black springs
•Sold in pairs
(11,5”) SHOCKS
WITHOUT SPRINGS NOTE: These springs must be ordered when ordering 12-series shocks.
FLOORBOARDS •Gas-charged with fade-free However, they can be used as replacements for the 412-series shocks.
& PEGS damping and consistent operation PART # DESCRIPTION
•Automatic, six-stage damping DS‑222014 1 70-120 psi chrome springs (std. spring on chrome 4000 series shocks)
adjusts to a variety of conditions DS‑310030 1 70-120 psi black springs (std. spring on black 4000 series shocks)
•Special cams allow easy DS‑222015 1 95-140 psi chrome springs
HARDWARE preload adjustment DS‑310031 1 95-140 psi black springs
•Springs sold separately; available DS‑222016 1 105-150 psi chrome springs
in a variety of rates; PART #s DS-222014-16 and DS‑310032 1 105-150 psi black springs
DS-310030-32 are recommended DS310035 125-170 psi black springs
PS‑1370C 90-130 psi chrome spring for 292 mm (11,5”) shocks only
NOTE: All shocks are measured center-of-eyelet to center- PS‑1370B 90-130 psi black spring for 292 mm (11,5”) shocks only
GENERAL of-eyelet. PS‑1375C 115-155 psi chrome springs for 279 mm and 292 mm (11” and 11,5”)
PART # DESCRIPTION shocks only
DS‑310049 For 79-85 XL 1 These springs will not fit shock PART #s DS-222003, DS-222009 or DS-310087.

736 ALL PART NUMBERS IN BLUE ARE NEW
