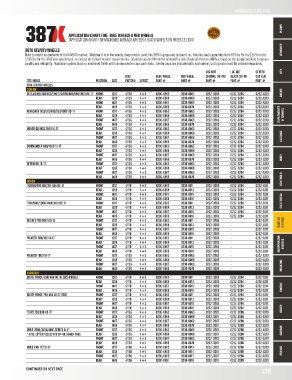

APPLICATION CHART FOR: BLUE WHEELS & RED WHEELS
(APPLICATION CHART FOR MACHINED W/BLACK WHEELS & BLACK WHEELS ON PAGES 131-134)
387X ATV/UTV WHEELS WINCHES
Built to meet the demands of the ATV/UTV market. Whether it is in the woods, deep mud or sand, the 387X is prepared to take it on. Handles load capacities from 675 lbs for the 12x7 front to
1,150 lbs for the 12x8 rear which meet, or exceed all current market requirements. Separate yourself from the herd with a line of wheels that are 100% x-rayed on the production line to ensure
quality and reliability. Available in gloss black or machined finish with chrome center caps and rivets. Center caps are included with each wheel, but lug nuts must be ordered separately.
LUG NUT LUG NUT CENTER UTV
BOLT BLUE WHEEL RED WHEEL CHROME (16-PK) BLACK (16-PK CAP (EA)
FITS MODEL POSITION SIZE PATTERN OFFSET PART # PART # PART # PART # PART #
387X ATV/UTV WHEELS
CAN-AM
OUTLANDER 330/400/500/570/650/800/850/1000 03-17 FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0203 0232-0204 0232-0210 RACKS
REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0203 0232-0204 0232-0210
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0203 0232-0204 0232-0210
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0203 0232-0204 0232-0210
RENEGADE 500/570/800/850/1000 09-17 FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0203 0232-0204 0232-0210
REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0203 0232-0204 0232-0210 IMPLEMENTS & TOWING
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0203 0232-0204 0232-0210
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0203 0232-0204 0232-0210
MAVERICK/MAX 1000 14-17 FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0203 0232-0204 0232-0210
REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0203 0232-0204 0232-0210
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0203 0232-0204 0232-0210 LUGGAGE
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0203 0232-0204 0232-0210
COMMANDER 800/1000 13-17 FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0203 0232-0204 0232-0210
REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0203 0232-0204 0232-0210
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0203 0232-0204 0232-0210
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0203 0232-0204 0232-0210 BODY
DEFENDER 16-17 FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0203 0232-0204 0232-0210
REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0203 0232-0204 0232-0210
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0203 0232-0204 0232-0210
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0203 0232-0204 0232-0210
HONDA CONTROLS
TRX650/680 RINCON 4X4 02-17 FRONT 12X7 4/110 4+3 0230-0803 0230-0811 0232-0203 0232-0204 0232-0211
REAR 12X8 4/110 4+4 0230-0804 0230-0812 0232-0203 0232-0204 0232-0211
FRONT 14X7 4/110 4+3 0230-0807 0230-0815 0232-0203 0232-0204 0232-0211
REAR 14X8 4/110 4+4 0230-0808 0230-0816 0232-0203 0232-0204 0232-0211
TRX420AT/500AT RANCHER 09-17 FRONT 12X7 4/110 4+3 0230-0803 0230-0811 0232-0203 0232-0204 0232-0211 ELECTRICAL
REAR 12X8 4/110 4+4 0230-0804 0230-0812 0232-0203 0232-0204 0232-0211
FRONT 14X7 4/110 4+3 0230-0807 0230-0815 0232-0203 0232-0204 0232-0211
REAR 14X8 4/110 4+4 0230-0808 0230-0816 0232-0203 0232-0204 0232-0211
BIG RED 700 MUV 09-13 FRONT 12X7 4/110 4+3 0230-0803 0230-0811 0232-0209 - 0232-0211 WHEELS & TIRES
REAR 12X8 4/110 4+4 0230-0804 0230-0812 0232-0209 - 0232-0211
FRONT 14X7 4/110 4+3 0230-0807 0230-0815 0232-0209 - 0232-0211
REAR 14X8 4/110 4+4 0230-0808 0230-0816 0232-0209 - 0232-0211
PIONEER 500/700 14-17 FRONT 12X7 4/110 4+3 0230-0803 0230-0811 0232-0209 - 0232-0211
REAR 12X8 4/110 4+4 0230-0804 0230-0812 0232-0209 - 0232-0211 SUSPENSION & DRIVE
FRONT 14X7 4/110 4+3 0230-0807 0230-0815 0232-0209 - 0232-0211
REAR 14X8 4/110 4+4 0230-0808 0230-0816 0232-0209 - 0232-0211
PIONEER 1000 16-17 FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0209 - 0232-0210
REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0209 - 0232-0210
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0209 - 0232-0210 BRAKING
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0209 - 0232-0210
KAWASAKI
BRUTE FORCE 650I 4X4 06-16 (IRS MODEL) FRONT 12X7 4/110 4+3 0230-0803 0230-0811 0232-0203 0232-0204 0232-0211
REAR 12X8 4/110 4+4 0230-0804 0230-0812 0232-0203 0232-0204 0232-0211
FRONT 14X7 4/110 4+3 0230-0807 0230-0815 0232-0203 0232-0204 0232-0211 ENGINE
REAR 14X8 4/110 4+4 0230-0808 0230-0816 0232-0203 0232-0204 0232-0211
BRUTE FORCE 750 4X4 05-17 (IRS) FRONT 12X7 4/110 4+3 0230-0803 0230-0811 0232-0203 0232-0204 0232-0211
REAR 12X8 4/110 4+4 0230-0804 0230-0812 0232-0203 0232-0204 0232-0211
FRONT 14X7 4/110 4+3 0230-0807 0230-0815 0232-0203 0232-0204 0232-0211
REAR 14X8 4/110 4+4 0230-0808 0230-0816 0232-0203 0232-0204 0232-0211 RIDER
TERYX 750/800 08-17 FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0207 0232-0208 0232-0210
REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0207 0232-0208 0232-0210
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0207 0232-0208 0232-0210
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0207 0232-0208 0232-0210
MULE 2500/3000/4010 SERIES ALL* FRONT 12X7 4/136 4+3 0230-0863 0230-0865 0232-0207 0232-0208 0232-0210 GARAGE
* NOTE; LIFT KIT NEEDED FOR 26” OR LARGER TIRES REAR 12X8 4/136 4+4 0230-0864 0230-0866 0232-0207 0232-0208 0232-0210
FRONT 14X7 4/136 4+3 0230-0867 0230-0869 0232-0207 0232-0208 0232-0210
REAR 14X8 4/136 4+4 0230-0868 0230-0870 0232-0207 0232-0208 0232-0210
MULE PRO FXT 15-17 FRONT 12X7 4/156 4+3 0230-0805 0230-0813 0232-0207 0232-0208 0232-0210
REAR 12X8 4/156 4+4 0230-0806 0230-0814 0232-0207 0232-0208 0232-0210 PROMO
FRONT 14X7 4/156 4+3 0230-0809 0230-0817 0232-0207 0232-0208 0232-0210
REAR 14X8 4/156 4+4 0230-0810 0230-0818 0232-0207 0232-0208 0232-0210
CONTINUED ON NEXT PAGE 139
