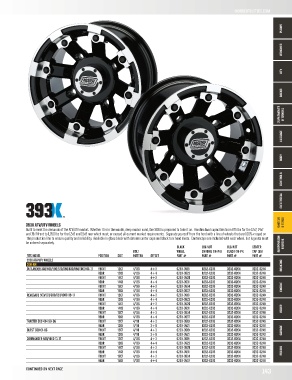

393X ATV/UTV WHEELS WHEELS & TIRES
Built to meet the demands of the ATV/UTV market. Whether it is in the woods, deep mud or sand, the 393X is prepared to take it on. Handles load capacities from 675 lbs for the 12x7, 14x7
and 15x7 front to 1,150 lbs for the 12x8 and 15x8 rear which meet, or exceed all current market requirements. Separate yourself from the herd with a line of wheels that are 100% x-rayed on
the production line to ensure quality and reliability. Available in gloss black with chrome center caps and black torx head rivets. Center caps are included with each wheel, but lug nuts must
be ordered separately. TM SUSPENSION & DRIVE
BLACK LUG NUT LUG NUT CENTER
BOLT WHEEL CHROME (16-PK) BLACK (16-PK CAP (EA)
FITS MODEL POSITION SIZE PATTERN OFFSET PART # PART # PART # PART #
393X ATV/UTV WHEELS
CAN-AM BRAKING
OUTLANDER 330/400/500/570/650/800/850/1000 03-17 FRONT 12X7 4/136 4+3 0230-0518 0232-0203 0232-0204 0232-0248
REAR 12X8 4/136 4+4 0230-0523 0232-0203 0232-0204 0232-0248
FRONT 14X7 4/136 4+3 0230-0526 0232-0203 0232-0204 0232-0248
REAR 14X8 4/136 4+4 0230-0531 0232-0203 0232-0204 0232-0248
FRONT 15X7 4/136 4+3 0230-0534 0232-0203 0232-0204 0232-0248 ENGINE
REAR 15X8 4/136 4+4 0230-0537 0232-0203 0232-0204 0232-0248
RENEGADE 500/570/800/850/1000 09-17 FRONT 12X7 4/136 4+3 0230-0518 0232-0203 0232-0204 0232-0248
REAR 12X8 4/136 4+4 0230-0523 0232-0203 0232-0204 0232-0248
FRONT 14X7 4/136 4+3 0230-0526 0232-0203 0232-0204 0232-0248
REAR 14X8 4/136 4+4 0230-0531 0232-0203 0232-0204 0232-0248 RIDER
FRONT 15X7 4/136 4+3 0230-0534 0232-0203 0232-0204 0232-0248
REAR 15X8 4/136 4+4 0230-0537 0232-0203 0232-0204 0232-0248
TRAXTER 500 4X4 99-06 FRONT 12X7 4/110 4+3 0230-0519 0232-0203 0232-0204 0232-0249
REAR 12X8 4/110 2+6 0230-0521 0232-0203 0232-0204 0232-0249
QUEST 650 01-06 FRONT 12X7 4/110 4+3 0230-0519 0232-0203 0232-0204 0232-0249 GARAGE
REAR 12X8 4/110 2+6 0230-0521 0232-0203 0232-0204 0232-0249
COMMANDER 800/1000 13-17 FRONT 12X7 4/136 4+3 0230-0518 0232-0203 0232-0204 0232-0248
REAR 12X8 4/136 4+4 0230-0523 0232-0203 0232-0204 0232-0248
FRONT 14X7 4/136 4+3 0230-0526 0232-0203 0232-0204 0232-0248
REAR 14X8 4/136 4+4 0230-0531 0232-0203 0232-0204 0232-0248 PROMO
FRONT 15X7 4/136 4+3 0230-0534 0232-0203 0232-0204 0232-0248
REAR 15X8 4/136 4+4 0230-0537 0232-0203 0232-0204 0232-0248
CONTINUED ON NEXT PAGE 143
