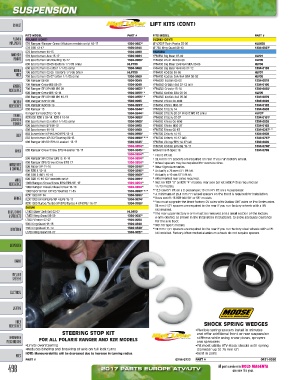

Page 498 - ATV 2017

SUSPENSION

EXHAUST LIFT KITS (CONT)

FITS MODEL PART # FITS MODEL PART #
PLOWS & POLARIS (CONT) SUZUKI (CONT)
IMPLEMENTS 570 Ranger/ Ranger Crew (Midsize models only) 14‑17 1304-0687 4 LT‑V700F Twin Peaks 03‑05 HLK650
570 RZR 12‑17 1304-0543 LT‑750 King Quad 08‑10 1304-0027 3
570 Sportsman 14‑15 1304-0460 YAMAHA
WINCHES & 570 Sportsman Ace 15‑17 1304-0601 YFM350 Big Bear 87‑96 HLY01
MOUNTS 570 Sportsman SP/ Touring 15‑17 1304-0688 4 YFM350 Bruin 4x4 04‑06 HLY05
600 Sportsman 03‑05 (before 1/1/05 only) HLP700 YFM400 Big Bear 2x4/ 4x4 SRA 00‑06 HLY06
600 Sportsman 05 (after 1/1/05 only) 1304-0460 YFM400 Big Bear 4x4 IRS 07‑12 1304-0159
AUDIO & 700 Sportsman 02‑05 (before 1/1/05 only) HLP700 YFM400 Kodiak 93‑98 HLY01
VIDEO 700 Sportsman 05‑07 (after 1/1/05 only) 1304-0460 YFM400 Kodiak 2x4/ 4x4 SRA 00‑06 HLY05
700 Ranger 06‑08 1304-0049 YFM400i Kodiak 05‑06 1304-0079
GENERAL 700 Ranger Crew IRS 08‑09 1304-0049 YFM450i Grizzly 4x4 07‑12 (all) 1304-0160
ACCESSORIES 700 Ranger EFI XP/HD IRS 09 1304-0455 6, 11 YFM450i Grizzly 13‑14 1304-0692 4
800 Ranger Crew IRS 10‑14 1304-0455 6, 11 YFM450 Kodiak SRA 03‑04 HLY05
800 Ranger EFI XP/HD IRS 10‑13 1304-0455 6, 11 YFM450i Kodiak 4x4 05‑06 1304-0079
RACKS & 800 Ranger RZR 07‑08 1304-0203 YFM450 Rhino 04‑M06 1304-0028
ACCESSORIES 800 Ranger RZR 09‑13 1304-0291 9 YFM450 Rhino M06‑07 1304-0162
800 Ranger 13 1304-0544 13 YFM550 Grizzly 14 1304-0603
TRUNKS, Ranger EV (electric) 10‑13 1304-0544 13 YFM660 Grizzly 02‑07 (Front lift kit only) HLY07 1
YFM660 Grizzly 02‑07
1304-0161 8
RZR 800 RZR S 09‑14, RZR 4 10‑14
1304-0689 4
LUGGAGE & 800 Sportsman 05 (after 1/1/05 only) 1304-0460 4 YFM660 Rhino 04‑M06 1304-0028
STORAGE 800 Sportsman EFI 06‑10 1304-0460 YFM660 Rhino M06‑07 1304-0162
800 Sportsman 11‑14 1304-0460 YFM700 Rhino 08‑13 1304-0287 6, 17
BODY 850 Scrambler/XP HO/HO EPS 13‑15 1304-0690 4 YFM700 Grizzly 14‑15 1304-0603
850 Sportsman XP/X2/ Touring 09‑15 1304-0690 4, 13, 14 YFM700 Grizzly 16‑17 (all) 1304-0767 4
900 Ranger XP/XP EPS (2‑seater) 13‑17 1304-0545 2 YFM700 Viking/ EPS 14‑17 (all) 1304-0602
1304-0854 18 YFM700 Kodiak EPS/SE 15‑17 1304-0768 4
ARMOR 900 Ranger Crew/ Crew EPS/4‑seater 15‑17 1304-0545 2, 7 Wolverine R‑Spec 16 1304-0769
1304-0854 18 1 Front lift kit.
900 Ranger XP/ Crew EPS (5, 6) 16 1304-0854 18 2 25,4 mm (1”) spacers are required on rear if you run factory wheel.
900 Ranger EPS/ Crew/ Crew EPS 17 1304-0854 18 3 Wheel spacers may be required for oversize tires.
HANDLEBARS 900 Razer XP 11‑14 1304-0546 10 4 New Signature series.
& CONTROLS 900 RZR 4 12‑14 1304-0546 10 6 Actually a 76 mm (3”) lift kit.
900 RZR S (60”) 15‑16 1304-0669 12 7 Actually a 10 cm (4”) lift kit.
WHEEL 900 RZR 15‑16 (50” models only) 1304-0691 4 8 Aftermarket rear axles required.
ACCESSORIES 1000 Ranger/ Crew/ Crew EPS/ EPS/SE 17 1304-0854 18 9 Not for RZR “S” or RZR “4” models; rear axle bar kit (ABK‑P‑3) is required on
1000 Ranger Diesel/ Diesel Crew 15‑16 1304-0854 18 11/13 models.
1000 Sportsman XP/X2/ Touring 11‑15 1304-0690 4, 13, 14 10 12,5 cm (5”) lift on a 2‑passenger; 10 cm (4”) lift on a 4‑passenger.
11 A minimum of 25,4 mm (1”) wheel spacers on the front is required for installation.
RZR 1000 XP 14 1304-0686 4
BRAKES RZR 1000 XP/XP EPS/XP 4 EPS 15‑17 1304-0674 4 12 Does not fit 15 RZR 900 50” or 55” models.
13 You must upgrade the front factory CV axles with Outlaw DHT axles or Pro Series axles.
RZR 1000 Turbo/ Turbo XP EPS/ Turbo 4 XP EPS/ 16‑17 1304-0766 4 38 mm (1,5”) spacers are required in the rear if you run factory wheels with a lift
SUZUKI kit installed.
BELTS, CHAINS LT400 Eiger 2x4/ 4x4 02‑07 HLS400 14 The rear upper factory A‑arm must be removed and a small section of the factory
& SPROCKETS LT450 King Quad 06‑09 1304-0027 3 A‑arm cleared, as shown in the installation instructions, to allow adequate clearance
LT500 Vinson 02‑07 1304-0054 for the axle boot.
500i King Quad 11‑13 1304-0540 17 Not for Sport models.
DRIVETRAIN 750i King Quad 11‑14 1304-0540 2 18 38 mm (1,5”) spacers are required in the rear if you run factory steel wheels with a lift
LT700 King Quad 05‑07 1304-0027 3 kit installed. Factory/ after‑market aluminum wheels do not require spacers.

SUSPENSION
ENGINE

FUEL/AIR
SYSTEMS

ELECTRICAL

LIGHTING

RIDER
ACCESSORIES SHOCK SPRING WEDGES
•Flexible spring spacers install in minutes
STEERING STOP KIT and offer additional front or rear suspension
HARDWARE & stiffness while using snow plows, sprayers
MERCHANDISING FOR ALL POLARIS RANGER AND RZR MODELS and spreaders
•Limits oversteering •Fit most utility ATV stock shocks with spring
•Reduces binding and breaking of axle on full lock turns diameter up to 76 mm (3”)
INDEX NOTE: Maneuverability will be decreased due to increase in turning radius. •Sold in pairs
PART # 0214-0722 PART # 0431-0260
498 2017 PARTS EUROPE ATV/UTV All part numbers in BOLD MAGENTA
are new this year.
