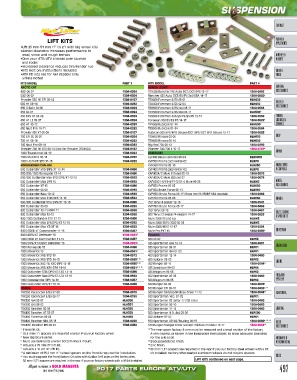

Page 497 - ATV 2017

SUSPENSION

EXHAUST

LIFT KITS PLOWS &
IMPLEMENTS
•Lift 25 mm-51 mm (1” to 2”) with big wheel kits
•Added clearance increases performance in
mud, snow and rough terrain WINCHES &
•Give your ATV/ UTV a boost over stumps MOUNTS
and rocks
•Increased clearance reduces tire/ fender rub
•Kits bolt on; instructions included AUDIO &
•ATV lift kits are for 4x4 models only, VIDEO
unless noted
FITS MODEL PART # FITS MODEL PART #
ARCTIC CAT HONDA (CONT) GENERAL
400i 06-07 1304‑0024 TRX420 Rancher IRS Auto DCT/ DCT EPS 15-17 1304‑0683 ACCESSORIES
500i 06-07 1304‑0024 Rancher 420 Auto DCT/ES/PS 2x4/ SRA 14-17 1304‑0682 4
Prowler 550 H1 EFI 09-14 1304‑0157 TRX450 Foreman S/ES 98-01 HLH450 RACKS &
550 H1 09-14 1304‑0282 TRX450 Foreman S/ES 02-04 HLH452
650 V-Twin 04-06 1304‑0024 TRX500 Foreman S/ES/ 4x4 05-11 1304‑0564 ACCESSORIES
650 04-07 1304‑0024 TRX500 Foreman S/ES/ 4x4 05-11 HLH500 5
650 TRV H1 05-06 1304‑0024 TRX500 Foreman 4x4/ES/PS/ES PS 12-13 1304‑0539 TRUNKS,
650 H1 LE 05-07 1304‑0024 Foreman 500 ES/ES PS 14-17 1304‑0682 4 LUGGAGE &
650 H1 10-12 1304‑0282 TRX500 Rubicon 01-14 HLH500 5 STORAGE
650 Mud Pro 10-11 1304‑0282 TRX500 Rubicon 01-14 1304‑0564
Prowler 650 XT 06-09 1304‑0157 Rubicon 500 EPS/ EPS Deluxe/ DCT EPS/ DCT EPS Deluxe 15-17 1304‑0683
700 EFI SE 06-07 1304‑0024 TRX650 Rincon 03-05 HLH650 BODY
700 H1 08-14 1304‑0282 TRX680 Rincon 06-14 HLH650
700 Mud Pro 08-14 1304‑0282 Big Red 700 09-12 1304‑0290
Prowler 700 H1 XTX 08-14 (Not for Prowler 700 HDX) 1304‑0157 Pioneer 700/ 700 4 15-17 1304‑0787 4
1000 Thundercat 08-10 1304‑0282 KAWASAKI ARMOR
1000 Mud Pro 10-14 1304‑0282 KLF300 Bayou 2x4/ 4x4 96-04 HLK300B
1000 H2/S/GT/ LTD 11-13 1304‑0282 KVF300 Prairie 2x2/ 4x4 99-02 HLKPR
BOMBARDIER/ CAN‑AM KVF360 Prairie 02-10 HLK650 HANDLEBARS
500 Outlander STD/ DPS/XT 13-14 1304‑0490 KVF400 Prairie 2x2/ 4x4 97-02 HLKPR & CONTROLS
500/ 800/ 1000 Renegade 13-14 1304‑0490 KAF400A/C Mule 610 4x4 05-10 1304‑0078
500/ 650 Outlander Max STD/ DPS/XT 13-14 1304‑0562 KAF400A/C Mule 600 4x4 07 1304‑0078
500 Outlander Max DPS 15 1304‑0562 KAF620C1-6/E1-4/F1-3/G1-4 Mule 96-08 HLKM3 WHEEL
500 Outlander XT 15 1304‑0490 KVF650 Prairie 02-05 HLK650 ACCESSORIES
650 Outlander 05-09 1304‑0285 KVF650 Brute Force 05-13 HLK650
650 Outlander/ Max 10-12 1304‑0563 KVF650i Brute Force 06-17 (Does not fit 650BF SRA models) 1304‑0469
650 Outlander Max STD/ DPS 15-16 1304‑0562 KVF700 Prairie 03-06 HLK650 BRAKES
650/ 800 Outlander STD/ DPS/XT 13-16 1304‑0490 750 Teryx 4-seater 12-13 1304‑0541
800 Outlander 05-09 1304‑0285 KVF750i Brute Force 05-17 1304‑0469
800 Outlander 10-11/ XMR 11 1304‑0563 750 Teryx 08-13 1304‑0467 BELTS, CHAINS
800 Outlander Max 10-12 1304‑0563 800 Teryx (2-seater/4-seater) 14-17 1304‑0623 & SPROCKETS
800/ 1000 Outlander STD XT 12 1304‑0490 Mule 2500 00 and up HLKM3
800 Outlander Max EFI/ DPS/XT 13-15 1304‑0562 Mule 3000/ 3010/ 3020 00-08 HLKM3
850 Outlander Max XT/XT 16 1304‑0562 Mule 4000/ 4010 12-17 1304‑0284
800R/ 800R XT Commander 11-15 1304‑0457 Mule Pro FXT 15 1304‑0685 4 DRIVETRAIN
800R/ DPS/XT Defender 16 1304‑0853 2 POLARIS
1000/ 1000 XT Commander 11-15 1304‑0457 300 90-02 HLP02
1000/ DPS/XT/ Cabin Defender 16 1304‑0853 2 325 Sportsman Ace 15-16 1304‑0601
1000 Renegade 12 1304‑0490 335 Sportsman 99-01 HLP01 SUSPENSION
1000 Maverick 13 1304‑0561 7 400 Sportsman 4x4 01-02 HLP01
1000 Maverick XRS/ STD 13 1304‑0572 400 Sportsman 12-14 1304‑0460
1000 Maverick XRS/ STD 14-15 1304‑0680 6, 16 400 Xplorer 95-02 HLP02 ENGINE
1000 Maverick XXC 14, XXC-DPS 15-16 1304‑0680 6, 16 400 Ranger 09-14 1304‑0544 13
1000 Maverick XRS/ XRS-DPS 14-16 1304‑0681 4, 7, 15 425 Xpedition 99-02 HLP04
1000 Outlander STD/ DPS/XT/ LTD 13-14 1304‑0490 425 Magnum 95-98 HLP02
1000 Outlander Max DPS/XT/ LTD 13-16 1304‑0562 450 Sportsman 06-08 1304‑0460 FUEL/AIR
1000 Commander DPS 14-16 1304‑0457 500 Magnum 99-03 HLP04 SYSTEMS
1000 Outlander DPS/XT 13-16 1304‑0490 500 Ranger 04-08 1304‑0026 1
HONDA 500 Ranger EFI 09-10 1304‑0455 6, 11
TRX250 Recon 2x4 S/ES 97-08 1304‑0019 500 Ranger Midsize/ Midsize Crew 11-13 1304‑0544 13 ELECTRICAL
TRX250 Recon 2x4 S/ES 09-17 1304‑0765 500 Sportsman/H.O. 97-02 HLP01
TRX300 4x4 92-97 HLH300 500 Sportsman 05 (after 1/1/05 only) 1304‑0460
TRX300 4x4 98-02 HLH301 500 Sportsman 06-10 1304‑0460
TRX350 Rancher 00-06 HLH350 500 Sportsman 11-13 1304‑0460 LIGHTING
TRX400 Rancher AT 03-07 HLH350 500 Sportsman H.O. 4x4 03-06 HLP500
TRX400 Foreman 96-03 HLH450 500 Xplorer 97-02 HLP01
TRX420 Rancher SRA 07-13 1304‑0220 550 Sportsman XP/X2/ Touring 09-15 1304‑0690 4, 13, 14 RIDER
TRX420i Rancher IRS 09-14 1304‑0458 570 Ranger/ Ranger Crew (except midsize models) 15-17 1304‑0854 18 ACCESSORIES
1 Front lift kit. 14 The rear upper factory A-arm must be removed and a small section of the factory
2 25,4 mm (1”) spacers are required on rear if you run factory wheel. A-arm cleared, as shown in the installation instructions, to allow adequate clearance
4 New Signature series. for the axle boot. HARDWARE &
5 Must use OEM bolts on rear bottom shock mount. 15 Black powdercoat finish. MERCHANDISING
6 Actually a 76 mm (3”) lift kit. 16 Zinc finish.
7 Actually a 10 cm (4”) lift kit. 18 38 mm (1,5”) spacers are required in the rear if you run factory steel wheels with a lift
11 A minimum of 25,4 mm (1”) wheel spacers on the front is required for installation. kit installed. Factory/ after-market aluminum wheels do not require spacers.
13 You must upgrade the front factory CV axles with Outlaw DHT axles or Pro Series axles. INDEX
38 mm (1,5”) spacers are required in the rear if you run factory wheels with a lift kit installed. LIFT KITS continued on next page.
All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 497
are new this year.
