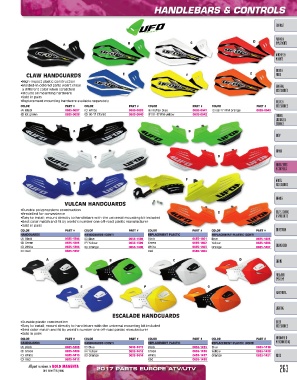

Page 263 - ATV 2017

HANDLEBARS & CONTROLS

EXHAUST

PLOWS &
D
A B C IMPLEMENTS
WINCHES &
MOUNTS

AUDIO &
CLAW HANDGUARDS E F G VIDEO
•High-impact plastic construction
•Molded-in colored parts won’t show GENERAL
a different color when scratched ACCESSORIES
•Include all mounting hardware
•Sold in pairs
•Replacement mounting hardware available separately RACKS &
COLOR PART # COLOR PART # COLOR PART # COLOR PART # ACCESSORIES
(A) Black 0635‑0637 (C) White 0635‑0639 (E) Reflex blue 0635‑0641 (G) 98-17 KTM orange 0635‑0643
(B) KX green 0635‑0638 (D) 00-17 CR red 0635‑0640 (F) 01-17 RM yellow 0635‑0642 TRUNKS,
LUGGAGE &
STORAGE
A B
BODY

ARMOR
C D
HANDLEBARS
& CONTROLS

F WHEEL
E ACCESSORIES

BRAKES
VULCAN HANDGUARDS
•Durable polypropylene construction BELTS, CHAINS
•Predrilled for convenience G & SPROCKETS
•Easy to install; mount directly to handlebars with the universal mounting kit included
•Best color match and fit by world’s number one off-road plastic manufacturer
•Sold in pairs
COLOR PART # COLOR PART # COLOR PART # COLOR PART # DRIVETRAIN
HANDGUARDS HANDGUARDS (CONT) REPLACEMENT PLASTIC REPLACEMENT PLASTIC (CONT)
(A) Black 0635‑1394 (E) Blue 0635‑1398 Black 0635‑1401 Blue 0635‑1405
(B) Green 0635‑1395 (F) Yellow 0635‑1399 Green 0635‑1402 Yellow 0635‑1406
(C) White 0635‑1396 (G) Orange 0635‑1400 White 0635‑1403 Orange 0635‑1407 SUSPENSION
(D) Red 0635‑1397 Red 0635‑1404

A B C D ENGINE

FUEL/AIR
SYSTEMS
E F G
ELECTRICAL

LIGHTING
ESCALADE HANDGUARDS
•Durable plastic construction RIDER
•Easy to install; mount directly to handlebars with the universal mounting kit included ACCESSORIES
•Best color match and fit by world’s number one off-road plastic manufacturer
•Sold in pairs
COLOR PART # COLOR PART # COLOR PART # COLOR PART # HARDWARE &
HANDGUARDS HANDGUARDS (CONT) REPLACEMENT PLASTIC REPLACEMENT PLASTIC (CONT) MERCHANDISING
(A) Black 0635‑1408 (E) Blue 0635‑1412 Black 0635‑1415 Blue 0635‑1419
(B) Green 0635‑1409 (F) Yellow 0635‑1413 Green 0635‑1416 Yellow 0635‑1420
(C) White 0635‑1410 (G) Orange 0635‑1414 White 0635‑1417 Orange 0635‑1421 INDEX
(D) Red 0635‑1411 Red 0635‑1418

All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 263
are new this year.
