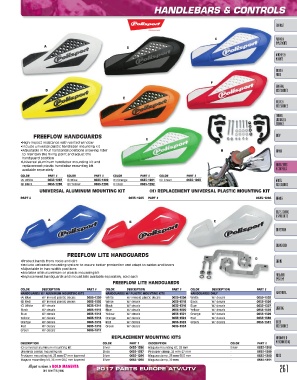

Page 261 - ATV 2017

HANDLEBARS & CONTROLS

EXHAUST

C PLOWS &
IMPLEMENTS
A B
WINCHES &
MOUNTS

AUDIO &
VIDEO
F
GENERAL
D ACCESSORIES
E
RACKS &
ACCESSORIES

TRUNKS,
LUGGAGE &
STORAGE

FREEFLOW HANDGUARDS G BODY
•High-impact resistance with vented window
•Include universal plastic handlebar mounting kit
•Adjustable in four horizontal positions allowing rider H ARMOR
to maintain the fixing point and adjust the
handguard position
•Universal aluminum handlebar mounting kit and
replacement plastic handlebar mounting kit HANDLEBARS
available separately & CONTROLS
COLOR PART # COLOR PART # COLOR PART # COLOR PART #
(A) White 0635-1287 (C) Blue 0635-1289 (E) Orange 0635-1291 (G) Green 0635-1293 WHEEL
(B) Black 0635-1288 (D) Yellow 0635-1290 (F) Red 0635-1292 ACCESSORIES

UNIVERSAL ALUMINUM MOUNTING KIT (H) REPLACEMENT UNIVERSAL PLASTIC MOUNTING KIT
PART # 0635-1285 PART # 0635-1286 BRAKES

BELTS, CHAINS
& SPROCKETS
A C
B
DRIVETRAIN

SUSPENSION
FREEFLOW LITE HANDGUARDS
•Protect hands from rocks and dirt D ENGINE
•Include universal mounting system to assure better protection and adapt to cables and levers
•Adjustable in two width positions
•Available with aluminum or plastic mounting kit
•Replacement handguards and mount kits available separately, sold each FUEL/AIR
SYSTEMS
FREEFLOW LITE HANDGUARDS
COLOR DESCRIPTION PART # COLOR DESCRIPTION PART # COLOR DESCRIPTION PART #
HANDGUARDS W/ ALUMINUM MOUNTING KITS HANDGUARDS W/ PLASTIC MOUNTING KITS HANDGUARDS ONLY ELECTRICAL
(A) Blue W/ inmold plastic decals 0635-1299 White W/ inmold plastic decals 0635-1304 White W/ decals 0635-1325
(B) Red W/ inmold plastic decals 0635-1302 White W/ decals 0635-1318 Black W/ decals 0635-1326
(C) White W/ decals 0635-1311 Black W/ decals 0635-1319 Blue W/ decals 0635-1327
Black W/ decals 0635-1312 Blue W/ decals 0635-1320 Yellow W/ decals 0635-1328 LIGHTING
Blue W/ decals 0635-1313 Yellow W/ decals 0635-1321 Orange W/ decals 0635-1329
Yellow W/ decals 0635-1314 Orange W/ decals 0635-1322 Red W/ decals 0635-1330
Orange W/ decals 0635-1315 Red W/ decals 0635-1323 Green W/ decals 0635-1331 RIDER
Red W/ decals 0635-1316 Green W/ decals 0635-1324 ACCESSORIES
Green W/ decals 0635-1317

REPLACEMENT MOUNTING KITS HARDWARE &
DESCRIPTION COLOR PART # DESCRIPTION COLOR PART # MERCHANDISING
(D) Universal aluminum mounting kit Silver 0635-1386 Magura mounting kit, 22 mm Silver 0635-1296
Universal plastic mounting kit Black 0635-1387 Protaper clamp, 25 mm-27 mm - 0635-1389
Protaper mounting kit, 25 mm-27 mm tapered Silver 0635-1294 Magura clamp, 26 mm-28,5 mm - 0635-1390 INDEX
Magura mounting kit, 26 mm-28,5 mm tapered Silver 0635-1295 Magura clamp, 22 mm - 0635-1391

All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 261
are new this year.
