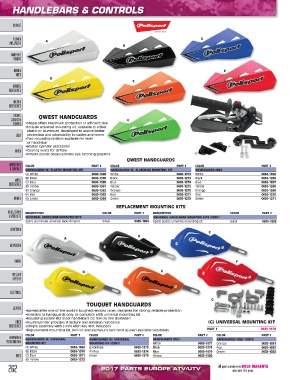

Page 262 - ATV 2017

HANDLEBARS & CONTROLS

EXHAUST

PLOWS & C
IMPLEMENTS A
B
WINCHES &
MOUNTS

AUDIO & F
VIDEO
D
E
GENERAL
ACCESSORIES

RACKS &
ACCESSORIES

TRUNKS, QWEST HANDGUARDS
LUGGAGE & G
STORAGE •Shape offers maximum protection in efficient size
•Include universal mounting kit, available in either
plastic or aluminum, developed to assure better
BODY protection and adaptability to cables and levers
•Two mounting options available for lever
or handlebar
•Master cylinder protection
ARMOR •Cooling vents for airflow
•Inmold plastic decals provide eye-catching graphics
QWEST HANDGUARDS
HANDLEBARS COLOR PART # COLOR PART # COLOR PART #
& CONTROLS HANDGUARDS W/ PLASTIC MOUNTING KIT HANDGUARDS W/ ALUMINUM MOUNTING KIT HANDGUARDS ONLY
(A) White 0635‑1258 White 0635‑1272 White 0635‑1265
WHEEL (B) Black 0635‑1259 Black 0635‑1273 Black 0635‑1266
ACCESSORIES (C) Blue 0635‑1260 Blue 0635‑1274 Blue 0635‑1267
(D) Yellow 0635‑1261 Yellow 0635‑1275 Yellow 0635‑1268
(E) Orange 0635‑1262 Orange 0635‑1276 Orange 0635‑1269
(F) Red 0635‑1263 Red 0635‑1277 Red 0635‑1270
BRAKES (G) Green 0635‑1264 Green 0635‑1278 Green 0635‑1271

REPLACEMENT MOUNTING KITS
BELTS, CHAINS DESCRIPTION COLOR PART # DESCRIPTION COLOR PART #
& SPROCKETS UNIVERSAL HANDLEBAR MOUNTING KITS UNIVERSAL HANDLEBAR MOUNTING KITS (CONT)
Spare aluminum universal mounting kit Silver 0635‑1384 Spare plastic universal mounting kit Black 0635‑1385

DRIVETRAIN
C
B
A
SUSPENSION

ENGINE F

D E
FUEL/AIR
SYSTEMS

ELECTRICAL
G
TOUQUET HANDGUARDS
LIGHTING
•Named after one of the world’s toughest enduro races, designed for strong, reliable protection
•Available as handguards only, or complete with universal mounting kit
•Mounting system fits most handlebars (22 mm-26 mm diameter)
RIDER •Aluminum bar provides structure and abrasion resistance (G) UNIVERSAL MOUNTING KIT
ACCESSORIES •Simple assembly with 5 mm Allen key (not included)
•Replacement mounting kit, bolt kit and aluminum bars (sold as pair) available separately PART # 0635‑1376
COLOR PART # COLOR PART # COLOR PART # COLOR PART #
HARDWARE & HANDGUARDS W/ UNIVERSAL HANDGUARDS ONLY
MERCHANDISING MOUNTING KIT HANDGUARDS W/ UNIVERSAL White 0635‑1377 HANDGUARDS ONLY (CONT) 0635‑1381
Orange
MOUNTING KIT (CONT)
(A) White 0635‑1369 (E) Orange 0635‑1373 Black 0635‑1378 Red 0635‑1382
(B) Black 0635‑1370 (F) Red 0635‑1374 Blue 0635‑1379 Green 0635‑1383
INDEX (C) Blue 0635‑1371 Green 0635‑1375 Yellow 0635‑1380
(D) Yellow 0635‑1372

262 2017 PARTS EUROPE ATV/UTV All part numbers in BOLD MAGENTA
are new this year.
