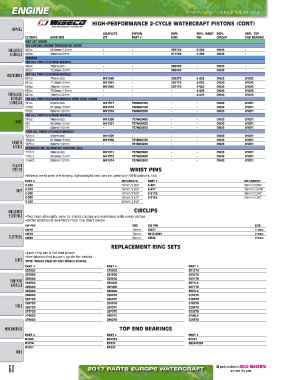

Page 60 - Water 2017

ENGINE www.partseurope.eu

HIGH-PERFORMANCE 2-CYCLE WATERCRAFT PISTONS (CONT)
APPAREL
COMPLETE PISTON REPL. REPL. WRIST REPL. REPL. TOP
CC DISPL. BORE SIZE KIT PART # RING PIN CIRCLIP END BEARING
WET JET (CONT)
440 CAYUNA ENGINE THROUGH 88 (CONT)
SUNGLASSES 442cc 68.5mm/1.5mm - - 2697CD S-256 CW16 -
& GOGGLES 449cc 69mm/2.0mm - - 2717CD S-256 CW16 -
YAMAHA
500 ALL TWIN CYLINDER MODELS
496cc 72mm/ std. - - 2835CD - CW20 -
503cc 72.5mm/.5mm - - 2854CD - CW20 -
ACCESSORIES 650 ALL TWIN CYLINDER MODELS
633cc 77mm/ std. WK1040 - 3032TD S-423 CW20 B1023
641cc 77.5mm/.5mm WK1041 - 3051TD S-423 CW20 B1023
649cc 78mm/1.0mm WK1042 - 3071TD S-423 CW20 B1023
658cc 78.5mm/1.5mm - - - S-423 CW20 B1023
PROPULSION, 667cc 79mm/2.0mm - - - S-423 CW20 B1023
DRIVELINE 701 ALL TWIN CYLINDER MODELS WITH DUAL CARBS
& HANDLING 701cc 81mm/ std. WK1317 790M08100 - - CW20 B1031
710cc 81.5mm/.5mm WK1318 790M08150 - - CW20 B1031
718cc 82mm/1.0mm WK1319 790M08200 - - CW20 B1031
760 ALL TWIN CYLINDER MODELS
ENGINE 754cc 84mm/ std. WK1290 757M08400 - - - - CW20 B1031
757M08450
CW20
B1031
763
84.5mm/.5mm
WK1291
771 85mm/1.0mm - 757M08500 - - CW20 B1031
1100 ALL THREE CYLINDER MODELS
1051cc 81mm/ std. WK1329 - - - CW20 B1031
1064cc 81.5mm/.5mm WK1330 791M08150 - - CW20 B1031
GASKETS 1077cc 82mm/1.0mm - 791M08200 - - CW20 B1031
& SEALS GP1200 97-99/ XL1200 98/ SUV1200 (ALL)
1131cc 84mm/ std. WK1312 757M08400 - - CW20 B1031
1142cc 84.5mm/.5mm WK1313 757M08450 - - CW20 B1031
1156cc 85mm/1.0mm WK1314 757M08500 - - CW20 B1031
FUEL/AIR
SYSTEMS WRIST PINS
•Wiseco wrist pins are strong, lightweight and can be used with OEM pistons, too
PART # OD/ LENGTH PART # OD/ LENGTH
S-256 16mm/2.050” S-461 20mm/2.559”
BODY S-259 16mm/2.300” S-477 18mm/2.0748”
S-280 18mm/2.160” S-511X 18mm/2.244”
S-343 18mm/2.370” S-512X 20mm/2.362”
S-423 20mm/2.158”

HANDLEBARS CIRCLIPS
& CONTROLS •Two high-strength, easy-to-install circlips are furnished with every piston
•Order additional inventory from the chart below
CW PIN SIZE CW PIN SIZE
CW16 16mm CW21 21mm
CW18 18mm 0913-0081 21mm
ELECTRICAL CW20 20mm CW22 22mm

REPLACEMENT RING SETS
•Each ring set is for one piston
•See Wiseco ring buyer’s guide for details
LUBES NOTE: Wiseco rings fit only Wiseco pistons.
PART # PART # PART #
2559CD 2786CD 3012TD
2579CD 2815CD 3032TD
2598CD 2835CD 3051TD
TRANSPORT 2618CD 2854CD 3071LK
& TRAILER 2638CD 2874CD 3071TD
2658CD 2894CD 3091LK
2668CD 2933TD 3150TD
2677CD 2953TC 3169TD
2687CD 2953TD 3189TD
TOOLS 2697CD 2973TC 3209TD
2717CD 2973TD 3228TD
2746CD 2992TC 3248LK
2766CD 2992TD 3268TD

MERCHANDISING TOP END BEARINGS
PART # PART # PART #
B1003 B1022X B1031
B1014 B1023 0924-0124
B1021 B1030
INDEX

60 2017 PARTS EUROPE WATERCRAFT All part numbers in BOLD MAGENTA
are new this year.
