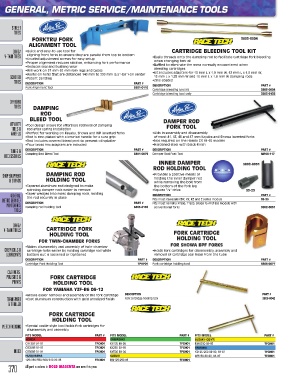

Page 370 - Tires 2017

GENERAL, METRIC SERVICE/MAINTENANCE TOOLS

STREET
TIRES
FORKTRU FORK 3805‑0004
ALIGNMENT TOOL
DRAG/ •Quick and easy-to-use tool for CARTRIDGE BLEEDING TOOL KIT
aligning front forks to ensure they are parallel from top to bottom
V-TWIN TIRES •Knurled adjustment screws for easy setup •Easily threads onto the damping rod to facilitate cartridge fork bleeding
•Proper alignment reduces stiction, enhancing fork performance when changing fork oil
•Reduces seal and bushing wear •Baffled to eliminate the mess normally encountered when
•Will work on 27 mm-62 mm fork legs and tubes bleeding cartridges
•Works on forks that are distanced 140 mm to 220 mm (5,5”-8,6”) on center •Kit includes adapters for 10 mm L x 1,0 mm W, 12 mm L x 1,0 mm W,
SCOOTER •Patent pending 12 mm L x 1,25 mm W and 14 mm L x 1,0 mm W damping rods
TIRES DESCRIPTION PART # •Zinc-coated
Fork Alignment Tool 3801‑0115 DESCRIPTION PART #
Cartridge bleeding tool kit 3805‑0004
Cartridge bleeding tool only 3805‑0138

OFFROAD
TIRES DAMPING
ROD
BLEED TOOL
ATV/UTV •Tool design allows for effortless retrieval of damping DAMPER ROD
TIRES & rod after spring installation FORK TOOL
WHEELS •Perfect for working on Kayaba, Showa and WP inverted forks •Aids in assembly and disassembly
•Rod is zinc-plated with a knurled handle for a sure grip of most 41, 43, 46 and 47 mm Kayaba and Showa inverted forks
•Rod includes covered bleed port to prevent oil splatter •Not required on the Honda CR 91-92 models
•Four brass hex adapters are included •Hardened steel with black finish
TUBES & DESCRIPTION PART # DESCRIPTION PART #
ACCESSORIES Damping Rod Bleed Tool 3801‑0079 Damper Rod Fork Tool MP08‑117

INNER DAMPER 3802‑0051
ROD HOLDING TOOL
SHOP EQUIPMENT DAMPING ROD •Provides a positive means of
holding the inner damper rod
& STANDS HOLDING TOOL while removing the bolt from
•Tapered aluminum rod designed to make the bottom of the fork leg
spinning damper rods easier to remove •Square /8” drive SS‑25
3
GENERAL, •Taper wedges into most damping rods, holding DESCRIPTION PART #
the rod securely in place
METRIC SERVICE/ DESCRIPTION PART # Fits most Kawasaki KDX, KX, KZ and Z series models SS‑25
MAINTENANCE Damping rod holding tool 3805‑0139 Fits most Yamaha XT500, TT500, SR500 75-mid 80s models with 3802‑0051
conventional forks
TOOLS
DRAG/
V-TWIN TOOLS CARTRIDGE FORK
HOLDING TOOL FORK CARTRIDGE
FOR TWIN‑CHAMBER FORKS HOLDING TOOL
•Makes disassembly and assembly of twin-chamber FOR SHOWA BPF FORKS
CHEMICALS & cartridge forks easier by holding cartridge rod while •Holds fork cartridges for disassembly, assembly and
LUBRICANTS bottom nut is loosened or tightened removal of cartridge seal head from the tube
DESCRIPTION PART # DESCRIPTION PART #
Cartridge Fork Holding Tool TFHP01 Fork cartridge holding tool 3805‑0077

CLEANERS,
POLISHES & FORK CARTRIDGE
PAINTS HOLDING TOOL
FOR YAMAHA YZF‑R6 06‑12
•Allows easier removal and assembly of the fork cartridge DESCRIPTION PART #
TRANSPORT •Cast aluminum construction with gold anodized finish Fork cartridge holding tool 3805‑0042
& TRAILER

FORK CARTRIDGE
HOLDING TOOL
MERCHANDISING •Special castle-style tool holds fork cartridges for
disassembly and assembly
FITS MODEL PART # FITS MODEL PART # FITS MODEL PART #
HONDA KAWASAKI SUZUKI (CONT)
CR125R 91-97 TFCH01 KX125 89-98 TFCH01 RMX250 89-95 TFCH01
CR250R 91-97 TFCH01 KX250 89-98 TFCH01 YAMAHA
INDEX CR500R 91-01 TFCH01 KX500 89-04 TFCH01 YZ125/ 250 89-90, 93-97 TFCH01
HUSQVARNA SUZUKI WR250 89-90, 94-97 TFCH01
125/ 250/ 350/ 360/ 610 92-95 TFCH01 RM125-250 93 TFCH01

370 All part numbers in BOLD MAGENTA are new this year.
