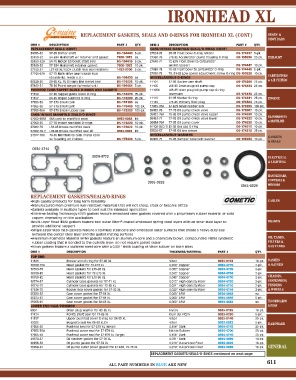

IRONHEAD XL

REPLACEMENT GASKETS, SEALS AND O-RINGS FOR IRONHEAD XL (CONT) SEATS &
SISSY BARS
OEM # DESCRIPTION PART # QTY. OEM # DESCRIPTION PART # QTY.
REPLACEMENT SEALS (CONT) CARB/ INTAKE MANIFOLD SEALS/O-RINGS (CONT)
34035-52 57-85 Shifter shaft DS-194440 5-pk. 27324-83 83-85 Float bowl O-ring (Viton) DS-174337 5-pk.
35150-52 54-E84 Mainshaft w/ retainer and gasket 7808-1032 ea. 27360-76 L76-85 Accelerator pump housing O-ring DS-193626 20-pk. EXHAUST
35151-52A 54-76 Motor sprocket shaft seal DS-194415 5-pk. 27646-71 72-E76 Float bowl to carburetor
35169-52 57-E84 Mainshaft retainer gasket 7808-1033 10-pk. gasket (paper) DS-174447 10-pk.
37740-57 L57-69 XL/ XLCH clutch hub seal (Eastern) 1132-0706 5-pk. 27889-78 79-82 Float bowl to carburetor O-ring DS-174448 5-pk.
37741-67A 67-70 Main drive gear/ clutch hub 27892-78 79, 81-82 Low speed adjustment screw O-ring DS-193628 10-pk. CARBURETORS
(double lip, metal o.d.) DS-194450 ea. MISCELLANEOUS O-RINGS
63529-50 59-65 XL, FL Oil tank line sleeve seal DS-174525 10-pk. 11101 57-85 Rocker arm shaft DS-174290 25-pk. & AIR FILTERS
83162-51 70-84 Point (single lip/ metal o.d.) DS-194464 5-pk. 11105 L66-85 Drain plug/ oil pump cap DS-174334 25-pk.
PUSHROD TUBE/ TAPPET BLOCK O-RINGS AND GASKETS 11105X L66-85 drain plug/ oil pump cap O-ring
11100 57-85 Tappet guide block O-ring DS-174270 25-pk. (oversize) DS-173430 25-pk.
11157 84-85 Upper pushrod O-ring DS-174289 25-pk. 11116 81-85 Starter O-ring DS-174341 25-pk. ENGINE
17955-36 57-E79 Small cork DS-174190 ea. 11139 L75-85 Primary filler plug DS-174364 25-pk.
17955-36 57-E79 Small cork DS-173499 100-pk. 17955-36A 57-E79 Small rubber seal DS-173383 100-pk.
17955-36A 57-E79 Small rubber seal DS-173383 100-pk. 26432-76 77-78 Oil pump check valve DS-173507 10-pk.
CARB/ INTAKE MANIFOLD SEALS/O-RINGS 26432-76A 79-85 Oil pump check valve upper DS-174330 10-pk. TRANSMISSION
27002-66SS S&S carb to manifold seals 0935-0088 kit 26433-77 77-85 Oil pump check valve lower DS-174323 10-pk.
27060-55 57-78 Intake manifold O-rings DS-174220 10-pk. 26434-76A 77-85 Oil pump cover DS-174820 10-pk. & DRIVELINE
27062-78 L78-85 Intake manifold seals DS-174822 10-pk. 61109-85C/D 82-85 Gas cap O-ring DS-174515 10-pk.
27062-78-2 L78-85 Intake manifold seal kit 0935-0082 kit 63529-57 57-85 Oil line sleeve DS-174310 25-pk.
27077-78X 78-85 Manifold to carb (metal core MISCELLANEOUS WASHERS GASKETS
w/ beading on 2 sides) DS-173446 6-pk. 45406-75 75-85 Damper tube bolt washer DS-193634 10-pk.
& SEALS
0934-4714
0934-4720 ELECTRICAL
& LIGHTING

HANDLEBARS,
CONTROLS &
0935-0828
0935-0829 MIRRORS
REPLACEMENT GASKETS/ SEALS/O-RINGS
•High-quality products for long term reliability CABLES
•Manufactured from premium fuel-resistant materials that will not creep, crack or become brittle
•Gaskets available in multiple types to best suit the intended application
•Extreme Sealing Technology (EST) gaskets feature embossed steel gaskets covered with a proprietary rubber material or solid
copper, depending on the application
•Multi-Layer Steel (MLS) gaskets feature two outer Viton -coated embossed spring steel layers with an inner steel layer to BRAKES
®
provide additional support
•Single-Layer Steel (SLS) gaskets feature a stainless steel core and embossed outer surfaces that create a heavy-duty seal
between the center steel layer and the gasket mating surfaces
•Aluminum Foamette Material (AFM) gaskets feature an aluminum core and a chemically blown, compounded nitrile synthetic OIL TANKS,
rubber coating that is bonded to the outside layer; do not require gasket sealer FILTERS &
•Viton gaskets feature a stainless steel core with a 0,001” thick coating of Viton rubber on both sides GAS TANKS
OEM # DESCRIPTION THICKNESS/MATERIAL PART # QTY.
TOP END
11101 Rocker arm O-ring for 57-85 XL Viton 0935-0178 10-pk. DASHES
16769-72A Head gasket for 72-E73 XL 0,020” Copper 0934-4719 2-pk. & GAUGES
16769-73 Head gaskets for L73-85 XL 0,032” Copper 0934-4709 2-pk.
16769-82 Head gaskets for 72-E73 XL 0,032” Copper 0934-4708 2-pk.
16769-82 Head gaskets for L73-85 XL 0,043” Copper 0934-4710 2-pk. CHASSIS,
16774-57 Cylinder base gaskets for 57-71 XL 0,012” High-density fiber 0934-4720 2-pk. SUSPENSION,
16774-72 Cylinder base gaskets for 72-85 XL 0,031” High-density fiber 0934-4715 2-pk. FENDERS
17536-70 Rocker box cover gasket for 57-85 XL 0,020” High-density fiber 0934-4714 2-pk. & WHEELS
25224-52 Cam cover gasket for 57-81 XL 0,060” AFM 0934-4668 ea.
25224-52 Cam cover gasket for 57-81 XL 0,060” AFM 0934-4669 5-pk.
25263-81 Cam cover gasket for 82-85 XL 0,060” AFM 0934-4682 ea. FLOORBOARDS
LOWER END/CAM/PUSHROD & PEGS
6007 Drain plug washer for 80-85 XL Nylon 0935-0185 10-pk.
11124 Points shaft seal for 71-85 XL Dual Lip Viton 0935-0230 5-pk.
11157 Upper pushrod cover O-ring for 84-85 XL Viton 0935-0149 25-pk.
12023 Magneto seal for 68-69 XLCH Viton 0935-0832 5-pk. HARDWARE
17955-36 Pushrod seal for 57-E79 XL (small) 0,156” Cork 0934-4713 25-pk.
17955-36A Pushrod cover seal for 57-E79 XL Nitrile Rubber 0934-4700 25-pk.
17955-48 Pushrod cover seal for 57-E79 XL (large) 0,156” Cork 0934-4716 25-pk.
24978-57 Oil strainer gasket for 57-76 XL 0,031” Cork 0934-4699 10-pk.
26256-52 Oil pump gasket for 57-74 XL 0,010” Vulcanized Fiber 0934-4692 10-pk.
26258-52 Oil pump outer cover gasket for 57-E62, 72-76 XL 0,010” Vulcanized Fiber 0934-4688 10-pk. GENERAL

REPLACEMENT GASKETS/SEALS/O-RINGS continued on next page
611
ALL PART NUMBERS IN BLUE ARE NEW
