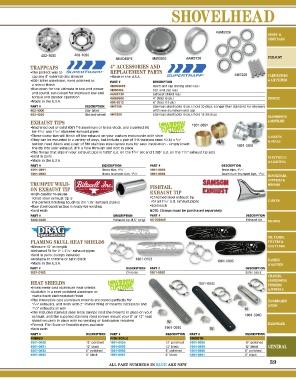

Page 41 - Oldbook 2017

SHOVELHEAD

4AM6506
SEATS &
SISSY BARS

402-1000 402-1020 EXHAUST
4M3046PS 4M3046S 4AM2120
TRAPPCAPS 4” ACCESSORIES AND
•The perfect way to REPLACEMENT PARTS
cap any 4” external disc silencer •Made in the U.S.A. 4M7206 CARBURETORS
•6061 billet aluminum, hand polished to PART # DESCRIPTION & AIR FILTERS
a mirror finish 4M3046PS Open end cap (racing only) (ea.)
•Run open for the ultimate in top-end power 4M3046S Std. end cap (ea.)
and sound; run closed for improved low-end 4AM2120 Exhaust shield (ea.)
torque and quieter operation 4AM6506 4” discs (6-pk.) ENGINE
•Made in the U.S.A. 404‑6512 4” discs (12-pk.)
PART # DESCRIPTION 4M7206 Stainless steel bolts (6-pk.); hold 20 discs. Longer than standard for silencers
402‑1000 Star billet with new aluminum end cap
402‑1020 Slotted wheel 4M7306 Stainless steel bolts (6-pk.); hold 15-34 discs TRANSMISSION

EXHAUST TIPS & DRIVELINE
•Machined out of solid 6061 T-6 aluminum or brass stock, and a perfect fit 1861-0891
1
for 1 /4” and 1 /2” diameter exhaust pipes
3
•These classy tips will finish off the exhaust on your custom motorcycle with style GASKETS
•They can be mounted in a variety of ways, but include a pair of 316 stainless steel 10-32 x /8” & SEALS
3
button-head Allens and a pair of 316 stainless steel nylock nuts for easy installation – simply insert 1861-0894
the tip into your exhaust, drill a hole through and bolt in place
3
1
•The flange that slips in your exhaust pipe is 1,630” o.d. on the 1 /4” set and 1,385” o.d. on the 1 /2” exhaust tip sets
•Sold in pairs ELECTRICAL
•Made in the U.S.A. & LIGHTING
PART # DESCRIPTION PART # DESCRIPTION
1861‑0891 Brass tips, 1 3 /4” 1861‑0893 Brass tips, 1 1 /2”
1861‑0892 Brass trumpet tips, 1 3 /4” 1861‑0894 Aluminum trumpet tips, 1 3 /4” HANDLEBARS,
CONTROLS &
TRUMPET WELD- MIRRORS
ON EXHAUST TIP FISHTAIL
•High-quality 16-gauge EXHAUST TIP
rolled steel exhaust tip is •Chromed steel exhaust tip
3
the perfect finishing touch to DIY 1,75” exhaust pipe(s) for all 1 /4” o.d. exhaust pipes CABLES
•Raw steel construction is ready for welding •Sold each
•Sold each NOTE: Clamps must be purchased separately.
PART # DESCRIPTION PART # DESCRIPTION
1802‑0280 Exhaust tip (4,5” long) DS‑202049 Exhaust tip BRAKES

OIL TANKS,
FLAMING SKULL HEAT SHIELDS FILTERS &
•Measure 10” in length GAS TANKS
1
•Universal fit for 2” – 2 /4” exhaust pipes
•Sold in pairs; clamps included
•Available in chrome or satin black 1861-0102 1861-0895 DASHES
•Made in the U.S.A. & GAUGES
PART # DESCRIPTION PART # DESCRIPTION
1861‑0102 Chrome 1861‑0895 Satin black
CHASSIS,
HEAT SHIELDS 1861-0935 SUSPENSION,
FENDERS
•Investment-cast aluminum heat shields & WHEELS
•Available in a semi-polished aluminum or
matte black electroplated finish
•The innovative cast aluminum mounts are coped perfectly for FLOORBOARDS
1 /4” exhausts, and work with 2” (minor filing of mounts necessary) and & PEGS
3
1
1 /2” exhausts as well
•The included stainless steel hose clamps hold the mounts in place on your
exhaust, and the supplied stainless steel screws mount your 6” or 12” heat 1861-0940
shield securely in place with no welding or fabrication required
•Finned, Fish Scale or Smooth styles available HARDWARE
•Sold each 1861-0930
PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION
FINNED FISH SCALE SMOOTH
1861‑0930 12” polished 1861‑0934 12” polished 1861‑0938 12” polished
1861‑0931 12” black 1861‑0935 12” black 1861‑0939 12” black GENERAL
1861‑0932 6” polished 1861‑0936 6” polished 1861‑0940 6” polished
1861‑0933 6” black 1861‑0937 6” black 1861‑0941 6” black

ALL PART NUMBERS IN BLUE ARE NEW 39
