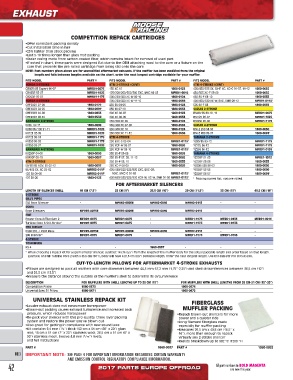

Page 42 - Offroad 2017

EXHAUST

EXHAUST
COMPETITION REPACK CARTRIDGES
•Offer consistent packing density
LUGGAGE •Cut installation time in half
•25% lighter than stock packing
•Last 5-10 times longer than glass mat packing
•Outer casing made from carbon-coated fiber, which remains intact for removal of used part
AUDIO/ •If noted in chart, these parts were designed flat due to the OEM attaching wool to the core or a fixture on the
VIDEO core that prevents the pre-rolled cartridge from being slid onto the core
NOTE: Part numbers given above are for unmodified aftermarket exhausts. If the muffler has been modified from the original
length and falls between lengths available on the chart, order the next longest cartridge available for your muffler.
BIKE FITS MODEL PART # FITS MODEL PART # FITS MODEL PART #
ACCESSORIES HONDA 2‑STROKE KTM 2‑STROKE (CONT) KTM 4‑STROKE (CONT)
CR80R/85 Expert 96-07 MFRD1‑0875 150 XC 10 1860‑0123 400/ 450/ 525 SX, SX-F, XC, XC-G 01-07, 11-12 1860‑0055
HANDLEBARS CR125R 93-07 MFRD1‑1025 125/ 200/ 250/ 300/ 380 EXC, MXC 98-05 MFRD1‑0016 450/ 505 XC-F 08-09 1860‑0055
CR250R 92-07
1860‑0535
1860‑0124
MFRD1‑1175
450 SX-F 08-10
200/ 250/ 300 XC-W 06-10
& CONTROLS HONDA 4‑STROKE 200/ 250/ 300 XC-W 11-12 1860‑0536 400/ 450/ 530 XC-W, EXC, SMR 09-12 MFRE1‑0115 1
CRF250R 07-09 1860‑0172 250 SX 04-06 1860‑0123 505 SX-F 08 1860‑0535
CRF450R 02-03 1860‑0091 1 250 SX 07-10 1860‑0533 SUZUKI 2‑STROKE
FOOT CRF450R 04-08 1860‑0033 200 XC 06-07 1860‑0123 RM80/85 89-10, 12 MFRD1‑0075
CONTROLS CRF450R 09-10 1860‑0534 200 XC 08-09 1860‑0533 RM125 96-07 MFRD1‑1025
KAWASAKI 2‑STROKE 250/ 300 XC 06 1860‑0123 RM250 96-08 MFRD1‑1175
KX65 02-11 1860‑0090 250/ 300 XC 07-09 1860‑0533 SUZUKI 4‑STROKE
KX80/85/ 100 91-11 MFRD1‑1025 250/ 300 XC 10 1860‑0124 RM-Z 250 04-06 1860‑0050
BODY KX125 02-05 MFRD1‑1025 250/ 300 XC 11-12 1860‑0536 RM-Z 450 05-07 1860‑0091 1
KX125 96-01 MFRD1‑1175 KTM 4‑STROKE YAMAHA 2‑STROKE
KX250 96-02 MFRD1‑1175 250 EXC-G 03-04 MFRE1‑0115 1 YZ80/85 93-12 MFRD1‑1175
GRAPHICS KX250 03-07 MFRD1‑1025 250 XCF-W 06-07 1860‑0055 YZ125 96-12 MFRD1‑1175
& SEATS KAWASAKI 4‑STROKE 250 XCF-W 08-10 MFRE1‑0115 1 YZ250 96-12 MFRD1‑0135
KX250F 04-08 1860‑0050 250 SX-F 05-06 1860‑0055 YAMAHA 4‑STROKE
KX450F 06-10 1860‑0091 1 250 SX-F 07, 09, 11-12 1860‑0092 YZ250F 01-05 MFRE1‑1013
KTM 2‑STROKE 250 SX-F 08, 10 1860‑0535 YZ250F 06-08 1860‑0033
SPROCKETS 50/60/65 ADV, SX 02-12 1860‑0097 250 XC-F 08-09 1860‑0055 YZ400/ 426 98-02 1860‑0095
85/ 105 SX, XC 03-12 MFRR2‑011F 1 400/ 450/ 520/ 525/ 530 EXC, EXC-GR, YZ450F 03-05 1860‑0096
125 SX 00-05 MFRR2‑011F 1 MXC, MXC-G 01-08 MFRE1‑0115 1 YZ450F 06-07 1860‑0091 1
125 SX 06 1860‑0123 400/ 450/ 520/ 525/ 530 XCR-W, XC-W, SMR 01-08 MFRE1‑0115 1 1 Packing comes flat, not pre-rolled.

CHAINS FOR AFTERMARKET SILENCERS
LENGTH OF SILENCER SHELL 19 CM (7,5”) 23 CM (9”) 25,5 CM (10”) 29 CM (11,5”) 33 CM (13”) 40,5 CM (16”)
2‑STROKE
BRAKES BILL’S PIPES
250 Race Silencer ‑ MFRR2‑0009E MFRR2‑0010 MFRR2‑0115 ‑ ‑
DOMA
Race Silencers MFRR2‑0075E MFRR2‑0009E MFRR2‑0010 MFRR2‑0115 ‑ ‑
WHEELS & FMF
ACCESORIES Power Core 2/ Titanium 2 MFRD1‑0075 MFRD1‑0875 ‑ MFRD1‑1175 MFRD1‑0135 MFRD1‑0016
Turbine Core 2/Q 2-Stroke 1 MFRD1‑0075 MFRD1‑0875 ‑ MFRD1‑1175 MFRD1‑0135 ‑
PRO CIRCUIT
R304 Std. / R304 Race MFRR2‑0075E MFRR2‑0009E MFRR2‑0010 MFRR2‑0115 ‑ ‑
SUSPENSION 296 Silencer 1 MFRD1‑0075 MFRD1‑0875 ‑ MFRD1‑1175 MFRD1‑0135 ‑
4‑STROKE
YOSHIMURA
RS-4 ‑ ‑ 1860‑0537 ‑ ‑ ‑
LIGHTING 1 When choosing a repack kit for a spark arrester silencer, subtract 14 cm (5,5”) from the length of the muffler body for the actual packable length and order based on that length.
Example: An FMF Turbine Core 2 with a 35,5 cm (14”) L body will have a 21,5 cm (8,5”) packable length. Order the next longest length. Use this rule for Pro Circuit also.
CUT‑TO‑LENGTH PILLOWS FOR AFTERMARKET 4‑STROKE EXHAUSTS
ELECTRICAL
& GAUGES •Pillows are designed to pack all mufflers with core diameters between 44,5 mm-57,2 mm (1,75”-2,25”) and shell circumferences between 30,5 cm (12”)
and 34,5 cm (13,5”)
•Measure the distance around the outside of the muffler’s shell to determine its circumference
DESCRIPTION FOR MUFFLERS WITH SHELL LENGTHS UP TO 38 CM (15”) FOR MUFFLERS WITH SHELL LENGTHS FROM 38 CM‑51 CM (15”‑20”)
ENGINE Competition Pillow 1860‑0573 1860‑0574
Universal Spec 31 Pillow 1860‑0471 1860‑0472

FUEL/AIR UNIVERSAL STAINLESS REPACK KIT
SYSTEMS •Louder exhaust does not mean more horsepower FIBERGLASS
•Blown-out packing causes exhaust turbulence and increased back MUFFLER PACKING
pressure, which reduces horsepower •Repack blown-out silencers for more
RIDER •Re-pack your silencer with this pro-quality, three layer packing power and a quieter ride
ACCESSORIES system and restore the power you’ve blown out •Long filament fiberglass made
•Also great for getting in compliance with new sound laws especially for muffler packing
•Kit contains 6,4 mm ( /4”) thick 152 cm x 51 cm (60” x 20”) glass •Measures 26,5 cm x 40,5 cm (10,5” x
1
HARDWARE & mat, 18 cm x 51 cm (7” x 20”) stainless wool; 20,5 cm x 51 cm (8” x 16”), more than enough to repack
3
virtually any 2-stroke silencer
MERCHANDISING 20”) stainless mesh, twelve 4,8 mm ( /16”) rivets, •Resists breakdown up to 982 °C (1200 °F)
and full instructions
PART # 1860‑0037 PART # 1860‑0852
INDEX IMPORTANT NOTE: SEE PAGE 4 FOR IMPORTANT INFORMATION REGARDING CERTAIN WARRANTY
AND EMISSION CONTROL REGULATORY COMPLIANCE INFORMATION.
42 2017 PARTS EUROPE OFFROAD All part numbers in BOLD MAGENTA
are new this year.
