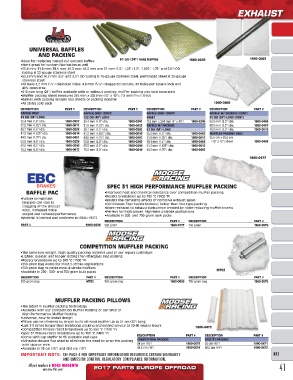

Page 41 - Offroad 2017
P. 41
EXHAUST
EXHAUST
LUGGAGE
UNIVERSAL BAFFLES
AND PACKING
61 cm (24”) long baffles 1860‑0245 1860‑0463
•Ideal for replacing rusted-out exhaust baffles AUDIO/
•Work great for custom fabrication as well VIDEO
•25,4 mm; 31,8 mm; 38,1 mm; 41,3 mm; 44,5 mm and 51 mm (1,0”; 1,25”; 1,5”; 1,625”; 1,75” and 2,0”) OD
tubing is 22-gauge stainless steel
•63,5 mm and 76,2 mm (2,5” and 3,0”) OD tubing is 16-gauge stainless steel; perforated sheet is 20-gauge BIKE
stainless steel
3
1
•All have 3,2 mm ( /8”) diameter holes; 4,8 mm ( /16”) staggered centers, 33 holes per square inch and ACCESSORIES
40% open area
•610 mm long (24”) baffles available with or without packing; muffler packing also sold separately
•Muffler packing sheet measures 254 mm x 305 mm (10” x 12”); 7,9 mm ( /16”) thick HANDLEBARS
5
•Baffles with packing include two sheets of packing material & CONTROLS
•All styles sold each 1860‑0468
DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
BAFFLE ONLY BAFFLE ONLY (CONT) BAFFLE ONLY (CONT) BAFFLE W/ PACKING (CONT) FOOT
61 CM (24”) LONG 122 CM (48”) LONG SHEET 61 CM (24”) LONG (CONT) CONTROLS
25,4 mm (1,0”) dia. 1860‑0237 25,4 mm (1,0”) dia. 1860‑0241 152 mm x 254 mm (6” x 10”) 1860‑0245 50,8 mm (2,0”) dia. 1860‑0466
31,8 mm (1,25”) dia. 1860‑0611 31,8 mm (1,25”) dia. 1860‑0613 BAFFLE W/ PACKING 63,5 mm (2,5”) dia. 1860‑0467
38,1 mm (1,5”) dia. 1860‑0238 38,1 mm (1,5”) dia. 1860‑0242 61 CM (24”) LONG 76,2 mm (3,0”) dia. 1860‑0618
41,2 mm (1,625”) dia. 1860‑0614 41,2 mm (1,625”) dia. 1860‑0616 25,4 mm (1,0”) dia. 1860‑0463 MUFFLER PACKING ONLY BODY
44,5 mm (1,75”) dia. 1860‑0461 44,5 mm (1,75”) dia. 1860‑0462 31,8 mm (1,25”) dia. 1860‑0612 25,5 cm x 30,5 cm
50,8 mm (2,0”) dia. 1860‑0239 50,8 mm (2,0”) dia. 1860‑0243 38,1 mm (1,5”) dia. 1860‑0464 (10” x 12”) sheet 1860‑0468
63,5 mm (2,5”) dia. 1860‑0240 63,5 mm (2,5”) dia. 1860‑0244 41,2 mm (1,625”) dia. 1860‑0615 GRAPHICS
76,2 mm (3,0”) dia. 1860‑0617 76,2 mm (3,0”) dia. 1860‑0619 44,5 mm (1,75”) dia. 1860‑0465 & SEATS
1860‑0177
SPROCKETS
CHAINS
SPEC 31 HIGH PERFORMANCE MUFFLER PACKING
BAFFLE PAC •Improved heat and chemical resistance over competition muffler packing
•Resists breakdown up to 760 °C (1400 °F)
•Failure to maintain •Resists the damaging effects of corrosive exhaust gases BRAKES
tailpipes can lead to •Continuous fiber resists blowout better than mat type packing
clogging of the silencer •More resistant to exhaust turbulence created by noise-reducing muffler inserts
wool, increased noise •Perfect for high-power, high-heat 4-stroke applications
output and reduced performance •Available in 500- and 750-gram bulk packs WHEELS &
•Material is labeled and conforms to BSAU 193T2 ACCESORIES
DESCRIPTION PART # DESCRIPTION PART #
PART # 1860‑0436 500 gram 1860‑0177 750 gram 1860‑0576
SUSPENSION
COMPETITION MUFFLER PACKING
•The same low-weight, high-quality packing material used in our repack cartridges LIGHTING
•Lighter, quieter, and longer lasting than fiberglass mat packing
•Resists breakdown up to 593 °C (1100 °F)
•250-gram bag works for most 2-stroke applications ELECTRICAL
•500-gram bag re-packs most 4-stroke mufflers
•Available in 250-, 500- and 750-gram bulk packs M702 & GAUGES
DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
250-gram bag M702 500-gram bag 1860‑0060 750-gram bag 1860‑0575
ENGINE
MUFFLER PACKING PILLOWS FUEL/AIR
•The latest in muffler packing technology SYSTEMS
•Available with our Competition Muffler Packing or our SPEC 31
High Performance Muffler Packing
•Universal, easy-to-install design RIDER
•Pillow can be trimmed to length to fit off-road muffler up to 51 cm (20”) long ACCESSORIES
•Last 3-5 times longer than traditional packing and extend service to 30-40 engine hours 1860‑0472
•Competition Pillows resist breakdown up to 593 °C (1100 °F)
•Spec 31 Pillows resist breakdown up to 760 °C (1400 °F) HARDWARE &
•Come with cap stuffer to fill packable end-caps DESCRIPTION PART # DESCRIPTION PART # MERCHANDISING
•Adhesive closure flap used to eliminate the need to wrap the packing COMPETITION PACKING SPEC 31 PACKING
with tape or wire 38 cm (15”) 1860‑0573 38 cm (15”) 1860‑0471
•Available in 38 cm (15”) and 48,5 cm (19”) 48,5 cm (19”) 1860‑0574 48,5 cm (19”) 1860‑0472
IMPORTANT NOTE: SEE PAGE 4 FOR IMPORTANT INFORMATION REGARDING CERTAIN WARRANTY INDEX
AND EMISSION CONTROL REGULATORY COMPLIANCE INFORMATION.
All part numbers in BOLD MAGENTA 2017 PARTS EUROPE OFFROAD 41
are new this year.
