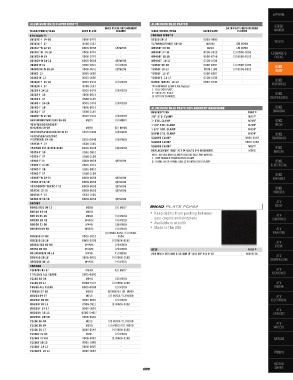

Page 89 - Moose Racing 2018

APPAREL

ALUMINUM SKID PLATES (CON’T) ALUMINUM SKID PLATES RIDER
SKID PLATE REPLACEMENT SKID PLATE REPLACEMENT
MAKE/MODEL/YEAR SKID PLATE CLAMPS MAKE/MODEL/YEAR SKID PLATE CLAMPS ARMOR
KTM (CON’T) YAMAHA (CON’T)
250EXC-F 14-16 0506-0776 - XT250 08-17 0505-0902 -
250EXC-F 17 0506-1137 - YZ/WR400F/426F 98-02 M233X (3) M209 YOUTH
250XCF-W 12-13 0506-0652 (2)M209 WR450F 03-06 M243 (2) M208
250XCF-W 14-16 0506-0776 - WR450F 07-11 0506-0312 (1) 0506-0152 LUGGAGE &
250XCR-W 14 0506-0776 - WR450F 12-15 0506-0745 (3) 0506-0152 PACKS
250XCR-W 12-13 0506-0652 (2)M209 WR450F 16-17 0506-1036 -
300XC-W 11 0506-0314 (2) M208 YZ450F 06-09 0506-0267 (1) 0506-0152 BIKE
300XC/XC-W 12-16 0506-0641 (2)M208 YZ450F 10-13 0505-1100 (2) 0506-0152 BODY
300XC 17 0506-1063 - YZ450F 15-17 0506-0927 -
300XC-W 17 0506-1062 - YZ450FX 15-17 0506-1036 -
350EXC-F 14-16 0506-0747 (2) M209 SUPER TENERE 10-13 0506-0744 - BIKE
350EXC-F 17 0506-1137 - (#) HOW MANY CLAMPS ARE NEEDED CONTROLS
350SX-F 14-15 0506-0747 (2) M209 1 - FULL SKID PLATE
2 - ANODIZED BLACK
350SX-F 16 0506-0913 - BIKE
3 - NOT FOR CA MODEL
350SX-F 17 0506-1129 - SUSPENSION
350XC-F 14-15 0506-0747 (2) M209
350XC-F 16 0506-0913 - ALUMINUM SKID PLATE REPLACEMENT HARDWARE BIKE
350XC-F 17 0506-1129 - DESCRIPTION PART # BRAKING
350XCF-W 14-16 0506-0747 (2) M209 7/8" STD. CLAMP M207 2
360/380MX/MXC/EXC 96-02 M224 (4) M804 1” STD. CLAMP M208 2 BIKE
400/450/520/525SX/ 1-1/8" STD. CLAMP M209 2 DRIVE
MXC/EXC 00-03 M236 (2) M804
1-3/8" STD. CLAMP M803 2
400/450/525EXC/XC/XC-W 07 0505-0049 (2) M208
25MM STD. CLAMP M804 2 BIKE
450/525SX/EXC/MXC SQUARE CLAMP 0506-0152
(4 STROKE) 04-06 0505-0049 (2) M208 BEARINGS
450EXC-F 17 0506-1135 - SQUARE CLAMP 0506-0153
450/530 EXC-R/XCR-W 08 0506-0376 (3) M209 SQUARE CLAMP M827 1 BIKE
450SX-F 16 0506-0912 - REPLACEMENT BOLT KIT (4 BOLTS & 4 WASHERS) M206 ENGINE
NOTE: REPLACEMENT CLAMPS INCLUDE BOLT AND WASHER
450SX-F 17 0506-1136 -
1 - PART NUMBER STAMPED INTO CLAMP
450XC-F 12 0506-0653 (2)M209 2 - DIAMETER OF FRAME TUBE IS STAMPED INTO CLAMP BIKE
450XC-F 13-15 0506-0773 - ELECTRICAL
450XC-F 16 0506-0912 -
450XC-F 17 0506-1136 - BIKE
450XCF-W 12-14 0506-0653 (2)M209 EXHAUST
450XC-W 12-16 0506-0653 (2)M209
450/500XCF-W/EXC-F 12 0506-0653 (2)M209 BIKE
500EXC 12-16 0506-0653 (2)M209 WHEELS
500EXC-F 17 0506-1135 -
500XC-W 12-16 0506-0653 (2)M209
SUZUKI ATV
RM80/85/L 98-13 M238 (2) M207 SKID PLATE FOAM BODY
RM100 03-04 M220 - ° Keep debris from packing between
RM125 01-08 M239 (4) M208 your engine and skidplate ATV
RM250 89-93 M440X (4) M208 CONTROLS
RM250 01-08 M448 (3) M209 ° Available in stealth
RMX250 89-98 M440X (4) M208 ° Made in the USA ATV
(3) 0506-0152 / (1) 0506- BRAKING
RMZ250 07-09 0506-0313 0153
RMZ250 10-16 0506-0625 (2)0506-0152 ATV
DR250/350 90-95 M442X (2) M208 DRIVE
DR350 96-99 M442X (2) M208 SIZE PART #
DR-Z400/E/S 00-16 M446 (1) M209 203 MM X 254 MM X 50 MM (8 " W X 10 " H X 2 " D) M300-30
RMZ450 08-16 0505-0901 (4) 0506-0152 ATV
DR650SE 98-16 M449X (4) M208 SUSPENSION
YAMAHA
YZ80/85 93-17 M240 (2) M207 ATV
TTR125/L ALL YEARS 0505-0050 - BEARINGS
YZ125 95-04 M245 (3) M208
YZ125 05-17 0506-0147 (4) 0506-0152 ATV
TW200 ALL YEARS 0505-0965 (2) M208 ENGINE
TTR250 97-06 M250 (2) M208 / (3) M209
WR250 94-97 M216 (2) M208 / (1) M209 ATV
WR250F 02-06 0505-0051 (2) M208 ELECTRICAL
WR250F 07-13 0506-0311 (1) 0506-0152
WR250F 14-17 0506-1036 - ATV
WR250R 08-16 0506-0401 3 - EXHAUST
WR250X 00-08 0506-0401 -
YZ250 93-95 M216 (2) M208 / (1) M209
ATV
YZ250 99-04 M235 (1) M803 /(2) M209 WHEELS
YZ250 05-17 0506-0145 (4) 0506-0152
YZ250F 01-05 M251 (2) M208
YZ250F 07-09 0506-0310 (1) 0506-0152 GARAGE
YZ250F 10-13 0505-1099 -
YZ250F 14-17 0506-0927 -
YZ250FX 15-17 0506-1036 -
PROMO
SIZING
089 CHART
