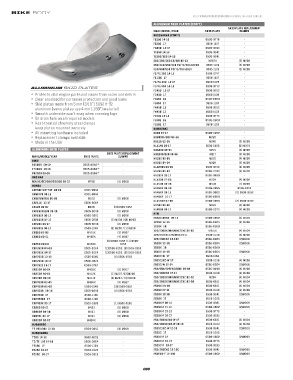

Page 88 - Moose Racing 2018

BIKE BODY
VISIT WWW.MOOSERACING.COM FOR MORE OFF-ROAD CONTENT
ALUMINUM SKID PLATES (CON’T)
SKID PLATE REPLACEMENT
MAKE/MODEL/YEAR SKID PLATE CLAMPS
HUSQVARNA (CON’T)
FE250 14-16 0506-0776 -
FE250 17 0506-1137 -
FX250 16-17 0506-0913 -
TC250 14-16 0506-0641 -
TE250/300 14-16 0506-0641 -
250/300/360 CR/WR 98-13 M207X (3) M208
250/310/450/510 TC/TE/TXC 08-09 0505-1101 (2) M208
310/450/510 TC/TE/TXC 2010 0505-1101 (2) M208
FC/FE 350 14-15 0506-0747 -
FE 350 17 0506-1137 -
FC/FX 350 16-17 0506-1129 -
FC/FE 450 14-15 0506-0773 -
ALUMINUM SKID PLATES
FC450 16-17 0506-0912 -
° Protects vital engine parts and cases from rocks and debris FC450 17 0506-1136 -
° Clear anodized for corrosion protection and good looks FE450 16 0506-0653 -
° Skid plates made from 5 mm (3/16”) 5052 H-32 FE450 17 0506-1135 -
aluminum (some plates use 4 mm (.160”) material) FX450 16 0506-0912 -
0506-1136
° Smooth underside won’t snag when crossing logs FX450 17 0506-0773 - -
FE501 14-15
° Oil drain hole on all required models FE501 16 0506-0653 -
° Heat-treated chromoly steel clamps FE501 17 0506-1135 -
keep plates mounted securely KAWASAKI
° All mounting hardware included KX65 97-17 0506-0262 -
° Replacement clamps available KX80/85/100 96-16 M220 -
° Made in the USA KX125 03-05 M242 (3) M208
KLX140 08-17 0505-1098 (2) M207
ALUMINUM SKID PLATES KDX200 89-94 M214 (4) M208
SKID PLATE REPLACEMENT KDX200/220 95-06 M217 (3) M208
MAKE/MODEL/YEAR SKID PLATE CLAMPS
KX250 88-89 M222 (4) M208
BMW KX250 94-04 M228 (3) M209
F650GS 08-12 0505-0966 1/2 -
KLX250S 06-15 0506-0372 (2) M208
F700GS 13-16 0505-0966 1/2 -
KX250 05-07 0506-0180 (2) M209
F800GS 08-16 0505-0966 1/2 -
GAS GAS KX250F 09-17 0505-0899 -
M234
MX/XC/EC200/250/300 98-13 M750 (3) M209 KLX300 97-08 M446 (4) M208
(1) M209
KLX400 03-05
HONDA
KX450F 06-08 0506-0265 0506-0152
CRF50F/CRF70F 02-16 0505-0047 -
KX450F 09-15 0505-0900 (2) 0506-0152
XR50/70 00-12 0505-0047 -
KX450F 16-17 0506-0928 -
CR80/85/85E 00-08 M100 (3) M208
CRF110 13-17 0506-0904 - KLX450R 07-09 0506-0265 (2) 0506-0152
CR125 02-07 M105 (4) 0506-0152 KX500 88-02 M222 (4) M208
CRF150F/230 03-05 0505-0048 (3) M208 KLR650 88-17 0506-0373 (4) M209
CRF150F 06-17 0506-0261 (2) M208 KTM
85SX/105SX 05-16 0506-0202 (4) M804
CRF150R 07-17 0506-0288 (2) M208 / (2) M209
125SX 12-15 0506-0654 (2) M208
CRF230 06-17 0505-0048 (3) M208
125SX 16 0506-0929 -
CRF230L 08-17 0505-1044 (3) M208 / (1) M209
125/200SX/MX/MXC/EXC 98-03 M211X (4) M804
CR250 97-99 M451X (3) M827
CR250 00-01 M452X (4) M827 125/SX/EXC125/200 04-11 0505-0138 (4) M208
(3) 0506-0152 / (1) 0506- 125/200EXC 12-13C 0506-0654 (2)M208
CR250 02-09 M453X 0153 150SX 12-15 0506-0654 (2)M208
CRF250R 04-09 0505-0064 (1)0506-0152, (3)0506-0153 150SX 16 0506-0929 -
CRF250X 04-17 0505-0064 (1)0506-0152, (3)0506-0153 150XC 12-15 0506-0654 (2)M208
CRF250R 10-13 0505-1045 (4) 0506-0763 150XC-W 17 0506-1154 -
CRF250R 14-17 0506-0824 - 200XC/XC-W 07 0505-0138 (4) M208
CRF250L 13-17 0506-0767 - 200XC-W 12-14 0506-0654 (2)M208
XR250R 86-94 M405X (2) M207 250/450/525EXC/MXC 04-06 0505-0049 (2) M208
XR250R 96-04 M412X (1) M207 / (3)M208 250/300EXC 07-11 0506-0314 (2) M208
XR400R 96-04 M411X (1) M207 / (3) M209 250/300SX/MX/MXC/EXC 90-02 M224 (4) M804
CRF450R 02-04 M454X (4) M827 250/300SX/MX/MXC/EXC 03-06 0506-0181 (4) M804
CRF450R 05-08 0506-0149 (3) 0506-0152 250SX 03-06 0506-0181 (4) M804
CRF450R 09-16 0505-0896 (4) 0506-0763 250SX 07-11 0506-0314 (2) M208
CRF450R 17 0506-1130 - 250SX 12-16 0506-0641 (2)M208
CRF450RX 17 0506-1130 - 250SX 17 0506-1063 -
CRF450X 05-17 0506-0183 (1) 0506-0152 250SX-F 08-10 0506-0381 (2)M209
CR500 90-01 M433 (3) M209 250SX-F 11-12 0506-0652 (2)M209
XR600R 89-00 M431 (3) M208 250SX-F 13-15 0506-0776 -
XR650L 92-17 M431 (3) M208 250SX-F 16-17 0506-0913 -
XR650R 00-07 M434X - 250/300XC/XC-W 07 0506-0181 (4) M804
HUSABERG 250/300XC/XC-W 08-10 0506-0314 (2) M208
TE 250/300 11-13 0506-0641 (4) M208 250XC/XC-W 11-16 0506-0641 (2)M208
HUSQVARNA 250XC 17 0506-1063 -
TC85 14-16 0506-0202 - 250XC-F 12 0506-0652 (2)M209
TC/TE 125 14-16 0506-0654 - 250XC-F 13-15 0506-0776 -
TE150 17 0506-1154 - 250XC-F 16-17 0506-0913 -
FC250 14-15 0506-0776 - 250/300EXC 12-13C 0506-0641 (2)M208
FC250 16-17 0506-0913 - 250EXC-F 12-13C 0506-0652 (2)M209
088
