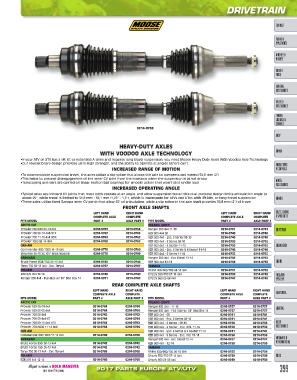

Page 399 - ATV 2017

DRIVETRAIN

EXHAUST

PLOWS &
IMPLEMENTS

WINCHES &
MOUNTS

AUDIO &
VIDEO

GENERAL
ACCESSORIES

RACKS &
ACCESSORIES

TRUNKS,
LUGGAGE &
STORAGE
0214-0738
BODY

HEAVY-DUTY AXLES
WITH VOODOO AXLE TECHNOLOGY ARMOR
•If your ATV or UTV has a lift kit or extended A-arms and requires long travel suspension, you need Moose Heavy Duty Axles With Voodoo Axle Technology
•Our revolutionary design provides ultra-high strength, and the ability to operate at angles others can’t HANDLEBARS
INCREASED RANGE OF MOTION & CONTROLS
•To accommodate suspension travel, the axles utilize a slip spline that allows the axle to compress and extend 50,8 mm (2”)
•This helps to prevent disengagement of the inner CV joint from the transaxle when the suspension is at full droop WHEEL
•Telescoping axle bars are carried on linear motion ball bearings for smooth action that won’t bind under load ACCESSORIES
INCREASED OPERATING ANGLE
•Typical axles use inboard CV joints that must both operate at an angle, and allow suspension travel; this dual-purpose design limits articulation angle to
about 25°, while travel is limited to 31,8 mm - 38,1 mm (1,25” - 1,5”), which is inadequate for ATVs and UTVs with lift kits, or long-travel suspension BRAKES
•These axles utilize fixed Rzeppa inner CV joints that allow 45° of articulation, while a slip spline in the axle shaft provides 50,8 mm (2”) of travel
FRONT AXLE SHAFTS
LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND BELTS, CHAINS
COMPLETE AXLE COMPLETE COMPLETE AXLE COMPLETE & SPROCKETS
FITS MODEL PART # AXLE PART # FITS MODEL PART # AXLE PART #
ARCTIC CAT POLARIS (CONT)
Prowler 550/ 650 06-14 4x4 0214-0762 0214-0763 Ranger 800 4x4 11-13 0214-0761 0214-0761 DRIVETRAIN
Prowler 700 08-14 4x4/ XTX 0214-0762 0214-0763 RZR 800 4x4 08 0214-0740 0214-0740
Prowler 700 11-15 4x4 HDX 0214-0763 0214-0762 RZR 800 4x4 - Exc. S Series 09-10 0214-0740 0214-0740
Prowler 1000 09-14 4x4 0214-0763 0214-0762 RZR 800 4x4 - S Series 09-10 0214-0755 0214-0755
CAN-AM RZR 800 4x4 - 4 Seater 11-14 0214-0755 0214-0755 SUSPENSION
Commander 800/ 1000 11-16 4x4 0214-0770 0214-0769 RZR 800 4x4 - Exc. S Series & 4 Seater 11-14 0214-0740 0214-0740
Maverick 14-16 XC (60” Wide Models) 0214-0770 0214-0769 RZR 800 4x4 - S Series 11-14 0214-0755 0214-0755
KAWASAKI Ranger 900 4x4 - Exc Diesel 13-14 0214-0755 0214-0755
Brute Force 650i/ 750i 05-13 4x4 0214-0743 0214-0744 RZR 900 4x4 12-14 0214-0758 0214-0758 ENGINE
Teryx 750 08-13 4x4 - Exc. Teryx4 0214-0767 0214-0767 YAMAHA
POLARIS Rhino 450/ 660/ 700 04-13 4x4 0214-0751 0214-0752
RZR 570 4x4 12-14 0214-0740 0214-0740 Grizzly 550/ 700 07-14 4x4 0214-0738 0214-0738 FUEL/AIR
Ranger 800 4x4 - Full-Size w/ 54” Bed Box 14 0214-0761 0214-0761 Grizzly 660 03-08 4x4 0214-0747 0214-0748 SYSTEMS

REAR COMPLETE AXLE SHAFTS
LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND ELECTRICAL
COMPLETE AXLE COMPLETE COMPLETE AXLE COMPLETE
FITS MODEL PART # AXLE PART # FITS MODEL PART # AXLE PART #
ARCTIC CAT POLARIS (CONT)
Prowler 550 06-14 4x4 0214-0764 0214-0764 Ranger 800 4x4 - 11-13 0214-0757 0214-0757 LIGHTING
Prowler 650 06-09 4x4 0214-0764 0214-0764 Ranger 800 4x4 - Full-Size w/ 54” Bed Box 14 0214-0757 0214-0757
Prowler 700 08 4x4 0214-0762 0214-0762 RZR 800 4x4 - 08 0214-0741 0214-0741
Prowler 700 09 4x4-XT 0214-0764 0214-0764 RZR 800 4x4 - Exc. S Series 09-10 0214-0741 0214-0741
Prowler 700 09-10 4x4-XTX 0214-0762 0214-0762 RZR 800 4x4 - S Series - 09-10 0214-0756 0214-0756 RIDER
Prowler 700/ 1000 11-14 4x4 0214-0764 0214-0764 RZR 800 4x4 - 4 Seater - Exc. Intl. 11-14 0214-0756 0214-0756 ACCESSORIES
CAN-AM RZR 800 4x4 - Exc. S Series & 4 Seater 11-14 0214-0741 0214-0741
Commander 800/ 1000 11-15 4x4 0214-0768 0214-0768 RZR 800 4x4 - S Series - Exc. Intl. 11-14 0214-0756 0214-0756
KAWASAKI Ranger 900 4x4 - Exc Diesel 13-14 0214-0757 0214-0757 HARDWARE &
Brute Force 650i 06-13 4x4 0214-0742 0214-0742 RZR 900 4x4 - 12-14 0214-0759 0214-0759 MERCHANDISING
Brute Force 750i 05-13 4x4 0214-0742 0214-0742 YAMAHA
Teryx 750 08-13 4x4 - Exc. Teryx4 0214-0765 0214-0766 Rhino 450/ 660/ 700 04-13 4x4 0214-0753 0214-0754
POLARIS Grizzly 550/ 700 07-14 4x4 0214-0739 0214-0739 INDEX
RZR 570 4x4 12-14 0214-0760 0214-0760 Grizzly 660 03-08 4x4 0214-0749 0214-0750

All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 399
are new this year.
