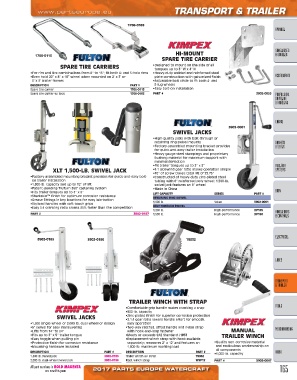

Page 163 - Water 2017

www.partseurope.eu TRANSPORT & TRAILER

1706-0163
APPAREL

SUNGLASSES
HI-MOUNT & GOGGLES
1706-0115
SPARE TIRE CARRIER
SPARE TIRE CARRIERS •Designed to mount on the side of all
tongues up to 3” W x 4” H
•For rim and tire combinations from 8” to 15”; fit both 4- and 5-hole rims •Heavy-duty welded and reinforced steel ACCESSORIES
•Even hold 20” x 8” x 10” wheel when mounted on 2’ x 3’ or plate construction with galvanized finish
3’ x 3’ trailer frames •Adjustable bolt circle to fit both 4- and
DESCRIPTION PART # 5-lug wheels
Spare tire carrier 1706-0115 •Easy bolt-on installation
Spare tire carrier w/ lock 1706-0163 PART # 3902-0055 PROPULSION,
DRIVELINE
& HANDLING

ENGINE
3902-0061
SWIVEL JACKS
•High-quality jacks with bolt-through or
retaining ring swivel mounts GASKETS
•Factory-assembled mounting bracket provides & SEALS
for quick-and-easy trailer installation
•Heavy-gauge steel stampings and proprietary
bushing material for maximum support with
minimal deflection
•Fit trailer tongues up to 3” x 5” FUEL/AIR
XLT 1,500-LB. SWIVEL JACK •1:1 sidewind gear ratio makes operation simple SYSTEMS
•10” of screw travel; total lift of 22.75”
•Factory-assembled mounting bracket provides for quick-and-easy bolt- •Constructed of heavy-duty zinc-plated steel
on trailer installation tubing with 6” reinforced poly wheel; 1,500-lb.
•1,500-lb. capacity and up to 12” of lift swivel jack features an 8” wheel
•Patent-pending TruTurn 360° castering system •Made in China
•Fits trailer tongues up to 3” x 5” LIFT CAPACITY SERIES PART # BODY
•Sharkskin™ finish for optimum corrosion resistance RETAINING RING SWIVEL
•Grease fittings in key locations for easy lubrication 1,000 lb. Value 3902-0061
•Stylized handles with soft touch grips
•Easy 5:1 cranking ratio cranks 35% faster than the competition BOLT-THROUGH SWIVEL
1,200 lb. High-performance XP10S HANDLEBARS
PART # 3902-0187 1,500 lb. High-performance XP150 & CONTROLS

ELECTRICAL
3902-0185 3902-0186 T903Z

LUBES

TRANSPORT
& TRAILER

TRAILER WINCH WITH STRAP
•Comfortable grip handle makes cranking a snap TOOLS
•900-lb. capacity
SWIVEL JACKS •Zinc-plated finish for superior corrosion protection
•3.1:1 gear ratio lowers handle effort for smooth,
•1,500 single-wheel or 2,000 lb. dual-wheel or design easy operation
•6” swivel for easy maneuvering •Two-way ratchet, offset handle and nylon strap MERCHANDISING
•Lifts from 14” to 24” with hook-and-loop fastener MANUAL
•Fits up to 3” x 5” trailer tongue •Meets or exceeds SAE Standard J1853 TRAILER WINCH
•Easy toggle when pulling pin •Replacement winch strap with hook available
•Protective finish for corrosion resistance separately; measures 2” x 12’ and features an •Quality non-corrosive material
•Mounting hardware included 1,800-lb. maximum working load and meticulous workmanship on
all components
DESCRIPTION PART # DESCRIPTION PART # •1,000-lb. capacity INDEX
1,500 lb. swivel jack 3902-0185 Trailer winch w/ strap T903Z
2,000 lb. dual-wheel swivel jack 3902-0186 Repl. winch strap WSP12 PART # 3902-0047

All part numbers in BOLD MAGENTA 2017 PARTS EUROPE WATERCRAFT 165
are new this year.
