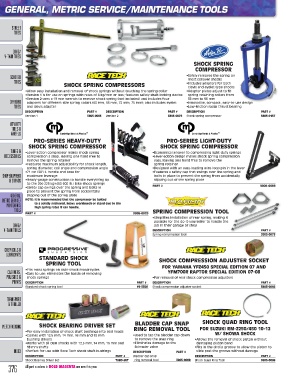

Page 376 - Tires 2017

GENERAL, METRIC SERVICE/MAINTENANCE TOOLS

STREET
TIRES

DRAG/
V-TWIN TIRES
SHOCK SPRING
COMPRESSOR
SCOOTER •Safely removes the spring on
most coilover shocks
TIRES •Includes adapters for both
SHOCK SPRING COMPRESSORS clevis and eyelet type shocks
•Allow easy installation and removal of shock springs without touching the spring collar •Adapter plates adjust to fit
•Version 1 is for use on springs with rates of 8 kg/mm or less; features safety shaft locking device spring retaining collars from
•Version 2 uses a 19 mm wrench to remove shock spring (not included) and includes four 56 mm to 96 mm
OFFROAD adapters for different size spring collars (60 mm, 66 mm, 72 mm, 75 mm); also includes eyelet •Innovative, compact, easy-to-use design
TIRES and clevis adapter •Low-friction radial thrust bearing
DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
Version 1 3805‑0065 Version 2 3805‑0076 Shock spring compressor 3805‑0137

ATV/UTV
TIRES &
WHEELS
PRO‑SERIES HEAVY‑DUTY PRO‑SERIES LIGHT‑DUTY
SHOCK SPRING COMPRESSOR SHOCK SPRING COMPRESSOR
TUBES & •Lever-action compressor makes shock spring •Economical answer to compressing light-duty springs
ACCESSORIES compression a snap, leaving one hand free to •Lever-action design makes shock spring compression
remove the spring retainer easy, leaving one hand free to remove the
•Features maximum adjustability for shock length, spring retainer
spring diameter, coil angle and compression angle •Designed with an easy-loading wire-loop pin in the lever
•71 cm (28”) L handle and base for •Features a safety cap that swings over the spring and
SHOP EQUIPMENT maximum leverage bolts in place to prevent the spring from accidentally
& STANDS •Heavy-gauge construction to handle everything up slipping out of the spring plate
to the 204-226 kg (450-500 lb.) bike shock springs
•Safety cap swings over the spring and bolts in PART # 3805‑0036
place to prevent the spring from accidentally
GENERAL, slipping out of the spring plate
METRIC SERVICE/ NOTE: It is recommended that the compressor be bolted
MAINTENANCE to a solidly anchored, heavy workbench or stand due to the
high spring rates it can handle.
TOOLS 3805‑0029 SPRING COMPRESSION TOOL
PART #
•Simplifies installation of rear spring, making it
possible for the do-it-yourselfer to handle the
DRAG/ job in their garage or shop
V-TWIN TOOLS DESCRIPTION PART #
Spring compression tool 3805‑0073

CHEMICALS &
LUBRICANTS
STANDARD SHOCK SHOCK COMPRESSION ADJUSTER SOCKET
SPRING TOOL FOR YAMAHA YFZ450 SPECIAL EDITION 07 AND
CLEANERS, •Fits most springs on twin-shock motorcycles YFM700R RAPTOR SPECIAL EDITION 07‑08
•Easy to use; eliminates the hassle of removing
POLISHES & shock springs •For removal of rear shock compression adjusters
PAINTS DESCRIPTION PART # DESCRIPTION PART #
Standard shock spring tool PS‑5508 Shock compression adjuster socket 3805‑0066

TRANSPORT
& TRAILER

SHOCK QUAD RING TOOL
BLADDER CAP SNAP
MERCHANDISING SHOCK BEARING DRIVER SET RING REMOVAL TOOL FOR SUZUKI RM‑Z250/ 450 10‑12
•For easy installation of shock shaft bushings into seal heads W/ SHOWA SHOCK
•Comes with 12,5 mm, 14 mm, 16 mm and 18 mm •Used to tap the bladder cap down
bushing drivers to remove the snap ring •Allows the removal of shock piston without
•Works with all OEM shocks with 12,5 mm, 14 mm, 16 mm and •Eliminates damage to the damaging piston band
18 mm shafts Schrader valve •Fits in the circlip groove to allow the piston to
INDEX •Perfect for use with Race Tech shock shaft bushings DESCRIPTION PART # slide past the groove without damage
DESCRIPTION PART # Bladder cap snap DESCRIPTION PART #
Shock Bearing Driver Set TSBD‑SET ring removal tool 3805‑0009 Shock Quad Ring Tool 3805‑0099
376 All part numbers in BOLD MAGENTA are new this year.
