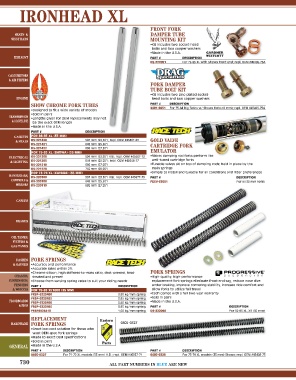

Page 732 - Oldbook 2017

IRONHEAD XL

FRONT FORK
SEATS & DAMPER TUBE
SISSY BARS MOUNTING KIT
•Kit includes two socket-head
bolts and two copper washers
•Made in the U.S.A.
EXHAUST PART # DESCRIPTION
DS‑222051 For 73-85 XL with Showa front end; repl. OEM #45405-75A

CARBURETORS
& AIR FILTERS
FORK DAMPER
TUBE BOLT KIT
•Kit includes two zinc-plated socket-
ENGINE head bolts and two copper washers
SHOW CHROME FORK TUBES PART # DESCRIPTION
•Designed to fit a wide variety of models 2401‑0851 For 75-84 Big Twins w/ Showa forks (8 mm); repl. OEM #45405-75A

•Sold in pairs
TRANSMISSION •Lengths given for OEM replacements may not
& DRIVELINE be the exact OEM length
•Made in the U.S.A.
PART # DESCRIPTION
GASKETS FOR 84‑85 XL (35 MM)
& SEALS DS‑221420 597 mm (23,50”); repl. OEM #45407-83 GOLD VALVE
DS‑221421 648 mm (25,50”) CARTRIDGE FORK
DS‑221422 699 mm (27,50”)
FOR 75‑83 XL (SHOWA) (35 MM) EMULATOR
ELECTRICAL DS‑221200 591 mm (23,25”) (XL); repl. OEM #45407-73 •Makes damping rod forks perform like
well-tuned cartridge forks
& LIGHTING DS‑221205 641 mm (25,25”); repl. OEM #45644-77
DS‑221210 692 mm (27,25”) •Tunable valves sit on top of damping rods; held in place by the
DS‑221220 743 mm (29,25”) main springs
FOR 73‑74 XL (KAYABA) (35 MM) •Simple to install and tunable for all conditions and rider preferences
HANDLEBARS, DS‑220100 597 mm (23,50”) (XL); repl. OEM #45977-73 PART # DESCRIPTION
CONTROLS & DS‑220108 648 mm (25,50”) FEGV‑S3001 For all 35 mm forks
MIRRORS DS‑220110 692 mm (27,25”)

CABLES

BRAKES

OIL TANKS,
FILTERS &
GAS TANKS

DASHES FORK SPRINGS
& GAUGES •Accuracy and performance
•Accurate rates within 2%
•Chrome silicon, high stiffness-to-mass ratio, shot-peened, heat- FORK SPRINGS
CHASSIS, treated and preset •High-quality, high-performance
SUSPENSION, •Choose from varying spring rates to suit your riding needs replacement fork springs eliminate front end sag, reduce nose dive
FENDERS PART # DESCRIPTION under braking, improve cornering stability, increase ride comfort and
& WHEELS FOR 79‑85 XL1000 (35 MM) allow forks to utilize full travel
FRSP‑S323480 0,80 kg/mm spring •Each comes with a full two-year warranty
FRSP‑S323485 0,85 kg/mm spring •Sold in pairs
FLOORBOARDS FRSP‑S323490 0,90 kg/mm spring •Made in the U.S.A.
& PEGS FRSP‑S323495 0,95 kg/mm spring PART # DESCRIPTION
FRSPS323410 1,00 kg/mm spring DS‑222040 For 52-85 XL, XR (35 mm)

REPLACEMENT
HARDWARE FORK SPRINGS 0405-0327
•Great low-cost solution for those who
want OEM-spec fork springs
•Made to exact OEM specifications
•Sold in pairs
GENERAL •Made in the U.S.A.
PART # DESCRIPTION PART # DESCRIPTION
0405‑0327 For 71-72 XL models (35 mm) H.D.; repl. OEM #46057-71 0405‑0329 For 75-79 XL models (35 mm) Showa; repl. OEM #45408-75

730 ALL PART NUMBERS IN BLUE ARE NEW
