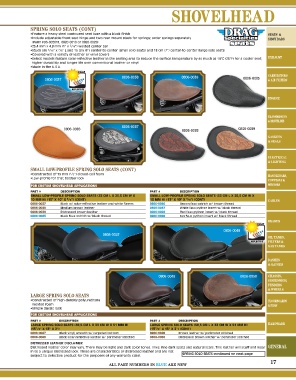

Page 19 - Oldbook 2017

SHOVELHEAD

SPRING SOLO SEATS (CONT)
•Feature a heavy steel contoured seat base with a black finish SEATS &
•Include adjustable front seat hinge and two rear mount studs for springs; order springs separately SISSY BARS
(PART #DS-902011, 0820-0010 or 0820-0029)
3
•25,4 mm x 4,8 mm (1” x /16”) welded center bar
7
•Studs are /16” x /8” L and 15 cm (6”) center-to-center (small solo seats) and 18 cm (7”) center-to-center (large solo seats)
5
•Covered with a variety of leather or vinyl covers
•Select models feature solar-reflective leather in the seating area to reduce the surface temperature by as much as 14°C (25°F) for a cooler seat, EXHAUST
higher durability and longer life over conventional leather or vinyl
•Made in the U.S.A.
0806-0038 0806-0039 0806-0085 CARBURETORS
0806-0037 & AIR FILTERS

ENGINE

TRANSMISSION
& DRIVELINE
0806-0087
0806-0086 0806-0088 0806-0089
GASKETS
& SEALS

ELECTRICAL
& LIGHTING
SMALL LOW-PROFILE SPRING SOLO SEATS (CONT)
1
•Constructed of 13 mm ( /2”) closed-cell foam HANDLEBARS,
•Low-profile for that Bobber look
CONTROLS &
FOR CUSTOM SHOVELHEAD APPLICATIONS MIRRORS
PART # DESCRIPTION PART # DESCRIPTION
SMALL LOW‑PROFILE SPRING SOLO SEATS (33 CM L X 25,5 CM W X SMALL LOW‑PROFILE SPRING SOLO SEATS (33 CM L X 25,5 CM W X
3
3
10 MM H) (13” X 10” X /8”) (CONT) 10 MM H) (13” X 10” X /8”) (CONT) CABLES
0806‑0037 Black w/ solar-reflective leather and white flames 0806‑0086 Brown faux ostrich w/ brown thread
0806‑0038 Medium brown leather 0806‑0087 White faux python insert w/ black thread
0806‑0039 Distressed brown leather 0806‑0088 Red faux python insert w/ black thread
0806‑0085 Black faux ostrich w/ black thread 0806‑0089 Tan faux python insert w/ black thread
BRAKES
0806-0048
0806-0047
OIL TANKS,
FILTERS &
GAS TANKS

DASHES
& GAUGES

0806-0049 0806-0050 CHASSIS,
SUSPENSION,
FENDERS
& WHEELS
LARGE SPRING SOLO SEATS
•Constructed of high-density polyurethane FLOORBOARDS
molded foam & PEGS
•Simple classic look
FOR CUSTOM SHOVELHEAD APPLICATIONS
PART # DESCRIPTION PART # DESCRIPTION
LARGE SPRING SOLO SEATS (39,5 CM L X 33 CM W X 51 MM H) LARGE SPRING SOLO SEATS (39,5 CM L X 33 CM W X 51 MM H) HARDWARE
1
1
(15 /2” X 13” X 2”) (15 /2” X 13” X 2”) (CONT)
0806‑0047 Black vinyl, smooth w/ carpeted bottom 0806‑0049 Brown leather w/ perimeter stitched
0806‑0048 Black solar-reflective leather w/ perimeter stitched 0806‑0050 Distressed brown leather w/ perimeter stitched

DISTRESSED LEATHER DISCLAIMER
Distressed leather color may vary. There may be light and dark color tones, lines, fine dark spots and natural scars. This leather will scuff and wear GENERAL
in to a unique distressed look. These are characteristics of distressed leather and are not
subject to defective product for the purposes of any warranty claim. SPRING SOLO SEATS continued on next page
17
ALL PART NUMBERS IN BLUE ARE NEW
