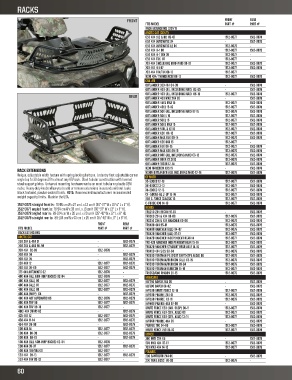

Page 60 - Moose Utility 2018

RACKS

FRONT FRONT REAR
FITS MODEL PART # PART #
RACK EXTENSIONS (CON'T)
ARCTIC CAT (CON'T)
650 4X4 (V2 & H1) 05-07 1512-0077 1512-0078
650 4X4 AUTOMATIC 04 - 1512-0079
650 4X4 AUTOMATIC LE 04 1512-0076 -
650 4X4 H-1 08 1512-0077 1512-0079
650 4X4 H-1 TRV 08 1512-0077 -
650 4X4 TBX 07 1512-0077 -
700 4X4 (INCLUDING MUD-PRO) 08-13 1512-0077 1512-0079
700 4X4 H-1 07 1512-0077 1512-0078
700 4X4 TRV/TBX 08-13 1512-0077 -
1000 4X4/ THUNDERCAT 08-13 1512-0077 1512-0079
CAN-AM
OUTLANDER 330 4X4 04-05 - 1512-0078
OUTLANDER 400 (ALL INCLUDING MAX) 03-05 - 1512-0078
OUTLANDER 400 (ALL INCLUDING MAX) 06-15 1512-0077 1512-0078
REAR OUTLANDER 400 MAX 2X4 05 - 1512-0078
OUTLANDER 450L MAX 15 1512-0077 1512-0078
OUTLANDER 450L 15-16 1512-0077 1512-0078
OUTLANDER 500 (ALL INCLUDING MAX) 07-15 1512-0076 1512-0078
OUTLANDER 500 L 15 1512-0077 1512-0078
OUTLANDER 500L 15 1512-0077 1512-0078
OUTLANDER 500L MAX 15 1512-0077 1512-0078
OUTLANDER 570L & XT 16 1512-0077 1512-0078
OUTLANDER 650 06-15 1512-0077 1512-0078
OUTLANDER MAX 650 09-14 1512-0076 1512-0078
OUTLANDER 650 6X6 15 1512-0077 -
OUTLANDER 650 06-15 1512-0077 1512-0078
OUTLANDER MAX 650 09-15 1512-0076 1512-0078
OUTLANDER 800 (ALL INCLUDING MAX) 06-15 1512-0076 1512-0078
OUTLANDER 800R XT 2015 1512-0076 1512-0078
OUTLANDER 1000R 12-14 1512-0076 1512-0078
1000 MAVERICK XRS 15 - 1512-0078
RACK EXTENSIONS 1000R OUTLANDER (ALL INCLUDING MAX) 12-16 1512-0076 1512-0078
Unique, adjustable width feature with spring locking buttons. Industry first adjustable corner CF MOTO
angle (up to 30 degrees) fits almost any ATV rack. Steel tubular construction with lasered X5-500CC 12-13 1512-0077 1512-0078
steel support plates. Universal mounting hardware works on most tubular or plastic OEM X6-600CC 12-13 1512-0077 1512-0078
racks. Heavy-duty knobs allow you to add or remove extensions in seconds without tools. X8-800CC 12-13 1512-0077 1512-0078
Black textured, powder-coated finish. NOTE: Never exceed manufacturers recommended CF -500AU-6L 2-UP 15-16 1512-0077 1512-0078
weight capacity limits. Made in the USA.
500 C-FORCE CLASSIC 15 1512-0077 1512-0079
1512-0076 straight front is: 76-94 cm W x 27 cm L x 13 cm H (30"-37" W x 10 ½" L x 5" H). C-FORCE 800 14-16 1512-0077 1512-0078
1512-0077 angled front is: 76-94 cm W x 33 cm L x 13 cm H (30"-37" W x 13" L x 5" H). HONDA
1512-0078 angled rear is: 89-104 cm W x 30 cm L x 20 cm H (35"-41" W x 12" L x 8" H). TRX250 2X4 RECON 97-16 - 1512-0079
1512-0079 straight rear is: 89-104 cm W x 43 cm L x 20 cm H (35"-41" W x 17" L x 8" H). TRX300 2X4 & 4X4 88-00 1512-0076 1512-0079
TRX350 2X4 & 4X4 RANCHER 00-06 1512-0076 1512-0079
FRONT REAR TRX400 4X4 95-01 1512-0076 1512-0079
FITS MODEL PART # PART # TRX400 RANCHER (ALL) 04-07 1512-0076 1512-0079
RACK EXTENSIONS TRX420 RANCHER (ALL) 07-13 1512-0077 1512-0078
ARCTIC CAT TRX420 RANCHER INDEPENDENT REAR 14 1512-0077 1512-0078
250 2X4 & 4X4 01 - 1512-0079 TRX 420 RANCHER INDEPENDENT REAR 15-16 1512-0077 1512-0079
300 2X4 & 4X4 98-99 - 1512-0078 TRX420 RANCHER STRAIGHT REAR AXLE 14-16 1512-0077 1512-0079
300 4X4 02-03 1512-0076 - TRX450 4X4 S/ES 98-04 1512-0076 1512-0079
300 4X4 04 - 1512-0079 TRX500 FOREMAN PS (FOOT SHIFT)(EPS ALSO) 09 1512-0076 1512-0079
300 4X4 05 - 1512-0079 TRX500 FOREMAN/RUBICON (ALL) 05-15 1512-0076 1512-0079
350 4X4 12 1512-0077 1512-0078 TRX500 FOREMAN/RUBICON 01-04 1512-0076 1512-0079
366 4X4 08-09 1512-0077 1512-0079 TRX500 FOREMAN RUBICON 15-16 1512-0077 1512-0079
375 4X4 AUTOMATIC 02 1512-0076 - TRX650/680 RINCON 03-15 1512-0076 1512-0079
400 4X4 (ALL NON-MRP RACKS) 02-04 1512-0076 - KAWASAKI
400 4X4 (ALL) 06 1512-0077 1512-0079 KLF250 BAYOU 2X4 05 - 1512-0079
400 4X4 (ALL) 07 1512-0077 1512-0078 KLF300 BAYOU 88-02 - 1512-0079
400 4X4 (ALL) 08 1512-0077 1512-0079 KVF300 BRUTE FORCE 12-15 1512-0077 1512-0078
400 4X4 (MRP) 04 - 1512-0079 KVF300 PRAIRIE 2X4 01 1512-0076 1512-0079
400 4X4 ACT AUTOMATIC 05 1512-0076 1512-0079 KVF360 PRAIRIE 02-11 1512-0076 1512-0079
400 4X4 TRV 06 1512-0077 1512-0078 KVF400 PRAIRIE 4X4 97-98 - 1512-0079
400 4X4 TRV 09-10 1512-0077 - BRUTE FORCE 650 (IND. SUSP) 06-11 1512-0077 1512-0078
400I 4X4 (MRP) 05 - 1512-0079 BRUTE FORCE 650 (STR. AXLE) 09 1512-0077 1512-0079
425 4X4 12 1512-0077 1512-0078 BRUTE FORCE 650 (STR. AXLE) 12-14 1512-0077 1512-0078
450 4X4 11-14 1512-0077 1512-0078 KVF650 PRAIRIE 4X4 03 - 1512-0079
454 4X4 96-98 - 1512-0079 PRAIRIE 700 04-06 1512-0077 1512-0078
500 4X4 14 1512-0077 1512-0078 BRUTE FORCE 750 05-16 1512-0077 1512-0078
500 4X4 08-09 1512-0077 1512-0079 KYMCO
500 4X4 99-01 - 1512-0079 300 MXU 2X4 06 - 1512-0079
500 4X4 (ALL NON-MRP RACKS) 02-04 1512-0076 - 500 MXU 4X4 07-13 1512-0077 1512-0079
500 4X4 05-07 1512-0077 1512-0078 700 MXU 4X4 14-15 1512-0077 1512-0079
500 4X4 TRV/TBX 06 1512-0077 - POLARIS
550 4X4 09-13 1512-0077 1512-0079 200 SAWTOOTH 2X4 06 - 1512-0079
550 4X4 TRV 09-12 1512-0077 - 250 TRAIL BOSS 88-99 1512-0076 -

60
