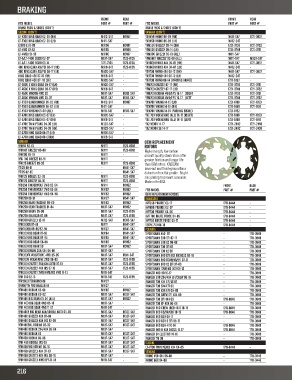

Page 216 - Moose Utility 2018

BRAKING

FRONT REAR FRONT REAR
FITS MODEL PART # PART # FITS MODEL PART # PART #
BRAKE PADS & SHOES (CON’T) BRAKE PADS & SHOES (CON’T)
SUZUKI (CON’T) YAMAHA (CON’T)
LT-F300 KING QUAD 02-03 (RH) M412-S47 M9157 YXR450 RHINO 06-09 (RH) M411-S47 1721-0837
LT-F300 KING QUAD 02-03 (LH) M411-S47 - YXR450 RHINO 06-09 (LH) M412-S47 -
LT300 E 87-89 M9156 M9187 YFM550 GRIZZLY 09-14 (RH) 1721-0750 1721-0752
LT-4WD 87-92 M9158 M9159 YFM550 GRIZZLY 09-14 (LH) 1721-0749 1721-0751
LT-4WDX 91-98 M9160 M9157 YFM600 GRIZZLY 98-01 (ALL) M811-S47 -
LT-A/LT-F400 EIGER 02-07 M107-S47 1723-0135 YFM660F GRIZZLY 02-08 (ALL) M811-S47 M930-S47
LT-A/LT-F400 EIGER 08-14 1721-2165 1723-0135 YXR660 RHINO 4X4 04-07 (RH) M411-S47 1721-0837
400 KING QUAD ASI/FSI 08-17 (RH) M919-S47 1723-0135 YXR660 RHINO 4X4 04-07 (LH) M412-S47 -
400 KING QUAD ASI/FSI 08-17 (LH) M920-S47 - YXR700 RHINO 4X4 08-12 (RH) M411-S47 1721-0837
KING QUAD 450 07-10 (RH) M919-S47 - YXR700 RHINO 4X4 08-12 (LH) M412-S47 -
KING QUAD 450 07- 10 (LH) M920-S47 - YXR700 RHINO 08-14 (PARKING BRAKE) 1721-1892 -
LT-A500 X KING QUAD 09-17 (LH) M920-S47 - YFM700 GRIZZLY 07-17 (RH) 1721-0750 1721-0751
LT-A500 X KING QUAD 09-17 (RH) M919-S47 - YFM700 GRIZZLY 07-17 (LH) 1721-0749 1721-0752
LT-A500 VINSON 4WD 02 M107-S47 M919-S47 YFM700 KODIAK 4WD/EPS 16-17 (RIGHT 1721-0750 1721-0751
LT-A500 VINSON 4WD 03-07 M107-S47 M310-S47 YFM700 KODIAK 4WD/EPS 16-17 (LEFT 1721-0749 1721-0752
LT-F500 QUADRUNNER 98-02 (RH) M412-S47 M9187 YXM700 VIKING 14-15 (LH) 1721-1888 1721-1890
LT-F500 QUADRUNNER 98-02 (LH) M411-S47 - YXM700 VIKING 14-15 (RH) 1721-1889 1721-1891
LT-F500 VINSON 03-08 (ALL) M811-S47 M310-S47 YXM700 VIKING 14-16 (PARKING BRAKE) 1721-1892 -
LT-A700 KING QUAD 05-07 (LH) M920-S47 - YXE 700 WOLVERINE (ALL) 16-17 (RIGHT) 1721-1888 1721-1890
LT-A700 KING QUAD 05-07 (RH) M919-S47 - YXE 700 WOLVERINE (ALL) 16-17 (LEFT) 1721-1889 1721-1891
LT-V700 TWIN PEAKS 04-05 (LH) M326-S47 - YXZ 1000R 14-17 1721-2492 1721-2493
LT-V700 TWIN PEAKS 04-05 (RH) M929-S47 - YXZ 1000R SE 14-17 1721-2492 1721-2493
LT-A750 KING QUAD 08-17 (LH) M920-S47 -
LT-A750 KING QUAD 08-17(RH) M919-S47 -
YAMAHA OEM REPLACEMENT
YFM80 92-01 M9111 1723-0018 ROTORS
YFM80T GRIZZLY 05-08 M9111 1723-0018 High-strength, low-carbon
YFM100 89-91 M9111 - aircraft quality steel rotors offer
YFA1 100 BREEZE 89-91 M9111 - greater friction and longer life
YFA125 BREEZE 89-95 M9111 1723-0018 than OEM rotors. CAD/CAM
YT125 80-81 - M841-S47 laser-cut and finish-ground for a
YT125 82-85 - M841-S47 distortion-free flat profile. Bright
YFM125 BREEZE 92-02 M9111 1723-0018 zinc plating to prevent corrosion.
YFM125 GRIZZLY 04-10 M9111 1723-0018 Made in the USA.
YFB250 TIMBERWOLF 2WD 92-94 M9111 M9152 FRONT REAR
YFB250 TIMBERWOLF 2WD 95-98 M9152 M9152 FITS MODEL PART # PART #
YFB250 TIMBERWOLF 4WD 94-96 M9152 M9152 OEM REPLACEMENT ROTORS
YFM250 89-91 M9127 M841-S47 KAWASAKI
YFM250 BEAR TRACKER 99-00 M9152 M9152 KVF360 PRAIRIE 03-17 1711-0444 -
YFM250 BEAR TRACKER 01-04 M107-S47 M9152 KVF650 PRAIRIE 02-07 1711-0444 -
YFM250 BRUIN 05-06 M107-S47 1723-0155 KVF700 PRAIRIE 04-06 1711-0444 -
YFM250 BIG BEAR 07-09 M107-S47 1723-0155 KVF 700 BRUTE FORCE 04-05 1711-0444 -
YFM300 GRIZZLY 12-13 M312-S47 M310-S47 KVF750 BRUTE FORCE 05-17 1711-0444 -
YFM350ER 87-88 M9111 M841-S47 TERYX 750 08-10 1711-0444 -
YFM350ER 89-90/92-95 M9127 M841-S47 POLARIS
YFM350 BIG BEAR 87-88 M9164 M841-S47 SPORTSMAN 450 O7 - 1711-0849
YFM350 BIG BEAR 89-95 M9165 M841-S47 SPORTSMAN 500 EFI O7-17 - 1711-0849
YFM350 BIG BEAR 96-98 M9165 M9152 SPORTSMAN 500 X2 O6-08 - 1711-0849
YFM350 BIG BEAR 99 M107-S47 M9152 SPORTSMAN 700 EFI O7 - 1711-0849
YFM350 BRUIN 2X4/4X4 04-06 M107-S47 - SPORTSMAN 700 X2 O8 - 1711-0849
YFM350FX WOLVERINE 4WD 95-05 M107-S47 M811-S47 SPORTSMAN 800 EFI 6X6 BIGBOSS O9-16 - 1711-0849
YFM350V WOLVERINE 2WD 06-09 M107-S47 1723-0155 SPORTSMAN 800 TOURING/EFI O7-17 - 1711-0849
YFM350 GRIZZLY 2X4/4X4 AUTO 07-10 M107-S47 1723-0155 SPORTSMAN 800 X2 EFI O7-09 - 1711-0849
YFM350 GRIZZLY 4X4 IRS 07-10 M107-S47 1723-0155 SPORTSMAN TOURING 500 O8-12 - 1711-0849
YFM350 GRIZZLY 2WD/4WD/IRS 4WD 11-13 M811-S47 - RANGER 400 HO 1O-17 - 1711-0849
YFM 350 12-13 M811-S47 1723-0155 RANGER 500 2X4/4X4 EFI/CREW O6-16 - 1711-0849
YFP350U TERRAPRO 88 M9127 - RANGER 700 4X4 EFI/LE O7 - 1711-0849
YFUIW/TW PRO HAULER 89 M9127 - RANGER 700 6X4 EFI O8 - 1711-0849
YFM400 KODIAK 93-98 M9165 M9132 RANGER 700 6X6 EFI O6-09 - 1711-0849
YFM400 KODIAK 00-02 M107-S47 M327-S47 RANGER 700 CREW EFI 4X4 O9 - 1711-0849
YFM400 BIG BEAR 00-04 (ALL) M107-S47 M9132 RANGER 700 EFI 4X4 O9 1711-0846 1711-0849
YFM 400 BIG BEAR 4WD 05-10 M107-S47 - RANGER 700 XP 4X4 O6-08 - 1711-0849
YFM 400 BIG BEAR 4WD 11-12 M811-S47 - RANGER 800 CREW (RGR 4X4) 1O-15 1711-0846 1711-0849
YFM400F BIG BEAR 4X4/KODIAK AUTO 05-06 M107-S47 M327-S47 RANGER 800 HD/XP/6X6 1O-15 1711-0846 1711-0849
YFM400 GRIZZLY 4X4 07-08 M107-S47 M327-S47 RANGER 800 RZR O8-17 - 1711-0849
YFM400 GRIZZLY 4X4 IRS 07-08 M107-S47 M327-S47 RANGER 800 RZR S EFI O9-17 - 1711-0849
YFM400FWL KODIAK 00-02 M107-S47 M327-S47 RANGER 800 RZR-4 1O-16 1711-0846 1711-0849
YFM400 KODIAK 2X4/4X4 03-04 M107-S47 - RANGER 900 D 4X4 DIESEL 11-17 1711-0846 1711-0849
YFM400 KODIAK 05 M107-S47 M327-S47 RANGER EV ELECTRIC 1O-16 - 1711-0849
YFM450 KODIAK 03-06 M107-S47 M327-S47 RANGER TM O6 - 1711-0849
YFM 450 KODIAK IRS 06 M107-S47 M327-S47 SUZUKI
YFM450 WOLVERINE 06-10 M107-S47 M327-S47 LT-V700 TWIN PEAKS 4X4 04-05 1711-0444 -
YFM450 GRIZZLY 4X4 07-10 M107-S47 M327-S47 YAMAHA
YFM450 GRIZZLY 4X4 IRS 09-10 M107-S47 - RHINO 450 4X4 06-08 - 1711-0446
YFM450 GRIZZLY 4WD/EPS 11-14 M811-S47 - RHINO 660 04-08 - 1711-0446

216
