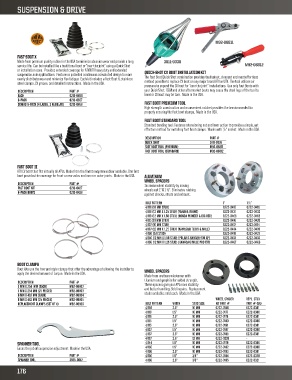

Page 176 - Moose Utility 2018

SUSPENSION & DRIVE

M92-06811

FAST-BOOT X
Made from premium quality rubber in the USA to minimize abrasion wear and provide a long 3811-0038
service life. Can be installed like a traditional boot or “over-the-joint” using a Quick-Shot M92-06812
or installation cone. Provides extended coverage for ATV/UTV heavy duty and extended QUICK-SHOT CV BOOT INSTALLATION KIT
suspension axle applications. Features a patented continuous convoluted design to more
evenly distribute wear and minimize flex fatigue. Each kit includes a Fast-Boot X, stainless The Fast Boot/Quick Shot combination provides the fastest, cleanest and most effortless
steel clamps, CV grease, and detailed instructions. Made in the USA. method possible to replace CV boot on any major brand ATV or UTV. The tool utilizes air
pressure to expand the CV boot for “over the joint” installations. Use only Fast Boots with
DESCRIPTION PART # your Quick Shot. OEM and other aftermarket boots may cause the steel legs of the tool to
EACH 0213-0656 bend or CV boot may be torn. Made in the USA.
6-PACK 0213-0657
COMBO 6-PACK (4 LARGE, 2 REGULAR) 0213-0658 FAST BOOT PREMIUM TOOL
High strength construction and a convenient ratchet provides the tension needed for
properly securing the fast boot clamps. Made in the USA.
FAST BOOT STANDARD TOOL
Standard banding tool: Features a tensioning nut and lever action to provide a simple, yet
effective method for installing fast boot clamps. Works with 1/2” socket. Made in the USA.
DESCRIPTION PART #
QUICK SHOT 3811-0038
FAST BOOT TOOL (PREMIUM) M92-06811
FAST BOOT TOOL (STANDARD) M92-06812

FAST BOOT II
ATV CV boot that fits virtually all ATVs. Made from the finest neoprene rubber available. One fast
boot provides the coverage for front or rear axles and inner or outer joints. Made in the USA. ALUMINUM
WHEEL SPACERS
DESCRIPTION PART # Increase wheel stability by moving
FAST BOOT KIT 0213-0427 wheels out 1” & 1 ½”. Eliminates rubbing
6-PACK BOOTS 0213-0428 against shocks, struts and exhaust.

BOLT PATTERN 1” 1 ½”
4/110 (10 MM STUD) 0222-0415 0222-0419
4/110 (12 MM X 1.25 STUD) (YAMAHA VIKING) 0222-0431 0222-0432
4/110 (12 MM X 1.50 STUD) (HONDA PIONEER & BIG RED) 0222-0468 0222-0469
4/115 (10 MM STUD) 0222-0416 0222-0420
4/137 (10 MM STUD) 0222-0417 0222-0414
4/137 (12 MM X 1.25 STUD) (KAWASAKI TERYX & MULE) 0222-0434 0222-0435
4/156 (3/8 STUD) 0222-0418 0222-0421
4/156 (12 MM X 1.50 STUD) (POLARIS RANGER 900 XP) 0222-0413 0222-0433
4/156 (12 MM X 1.25 STUD) (KAWASAKI MULE PRO FXT) 0222-0467 0222-0466

BOOT CLAMPS
Boot kits use the free-end style clamps that offer the advantage of allowing the installer to WHEEL SPACERS
apply the desired amount of torque. Made in the USA.
Made from urethane elastomer with
titanium and graphite for added strength.
DESCRIPTION PART # These spacers give your ATV more stability
5 MM X 254 MM (EACH) M92-06802 and better handling. Sold in pairs. Replacement
5 MM X 254 MM (25 PIECES) M92-06803 studs available; sold each. Made in the USA.
6 MM X 482 MM (EACH) M92-06804
6 MM X 482 MM (25 PIECES) M92-06805 WHEEL SPACER REPL. STUD
REPLACEMENT CLAMPS (SET OF 4) M92-06806 BOLT PATTERN WIDTH STUD SIZE KIT PART # PART # (EA)
4/100 2.5” 10 MM 0222-0186 0222-0301
4/110 1.5” 10 MM 0222-0177 0222-0300
4/110 2.5” 10 MM 0222-0178 0222-0301
4/115 1.5” 10 MM 0222-0180 0222-0300
4/115 2.5” 10 MM 0222-0181 0222-0301
4/137 1.5” 10 MM 0222-0187 0222-0300
4/137 2.5” 10 MM 0222-0188 0222-0301
4/137 2.5” 12 MM 0222-0299 -
SPANNER TOOL 4/144 1.5” 10 MM 0222-0179 0222-0300
Eases the job of suspension adjustment. Made in the USA. 4/156 1.5” 10 MM 0222-0182 0222-0300
4/156 2.5” 10 MM 0222-0183 0222-0301
DESCRIPTION PART # 4/156 1.5” 3/8” 0222-0184 0222-0320
SPANNER TOOL 3805-0057 4/156 2.5” 3/8” 0222-0185 0222-0321
