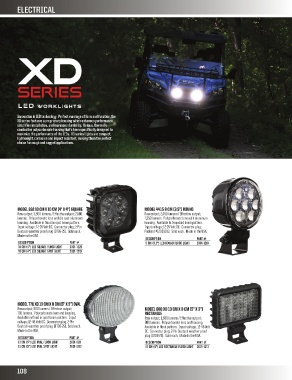

Page 108 - Moose Utility 2018

ELECTRICAL

Innovation in LED technology. Perfect marriage of form and function, the
XD series features a proprietary housing which enhances performance,
simplifies installation, and increases durability. Unique, thermally-
conductive polycarbonate housing that’s been specifically designed to
maximize the performance of the LEDs. XD series Lights are compact,
lightweight, corrosion and impact resistant, making them the perfect
choice for rough and rugged applications.

MODEL 832 10 CM X 10 CM (4" X 4") SQUARE MODEL 4415 9 CM (3.5") ROUND
Raw output; 3,900 lumens / Effective output; 2,400 Raw output; 2,450 lumens / Effective output;
lumens. Polycarbonate lens and die cast aluminum 1,350 lumens. Polycarbonate lens with aluminum
housing. Available in flood or spot beam pattern. housing. Available in trapezoid beam pattern.
Input voltage; 12-24 Volt DC. Connector plug; 2-Pin Input voltage; 12-24 Volt DC. Connector plug;
Deutsch weather proof plug (DT06-2S). Sold each. Packard #12059183. Sold each. Made in the USA.
Made in the USA.
DESCRIPTION PART #
DESCRIPTION PART # 9 CM (3.5") LED ROUND FLOOD LIGHT 2001-1218
10 CM (4") LED SQUARE FLOOD LIGHT 2001-1220
10 CM (4") LED SQUARE SPOT LIGHT 2001-1219

MODEL 770 XD 13 CM X 8 CM (5" X 3") OVAL
Raw output; 900 lumens / Effective output; MODEL 880 XD 13 CM X 8 CM (5" X 3")
700 lumens. Polycarbonate lens and housing. RECTANGLE
Available in flood or spot beam pattern. Input Raw output; 1,680 lumens / Effective output;
voltage; 12-48 Volt DC. Connector plug; 2-Pin 900 lumens. Polycarbonate lens and housing.
Deutsch weather proof plug (DT06-2S). Sold each. Available in flood pattern. Input voltage; 12-48 Volt
Made in the USA. DC. Connector plug; 2-Pin Deutsch weather proof
plug (DT06-2S). Sold each. Made in the USA.
DESCRIPTION PART #
13 CM (5") LED OVAL FLOOD LIGHT 2001-1211 DESCRIPTION PART #
13 CM (5") LED OVAL SPOT LIGHT 2001-1212 13 CM (5") LED RECTANGLE FLOOD LIGHT 2001-1213

108
