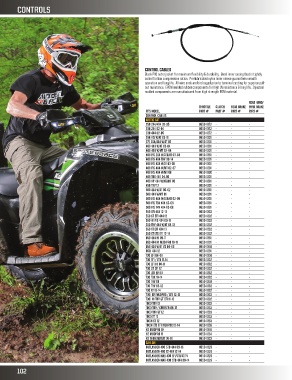

Page 102 - Moose Utility 2018

CONTROLS

CONTROL CABLES
Black PVC outer jacket for maximum flexibility & durability. Steel inner casing that is tightly
coiled for low compression ratios. Pre-lubricated nylon inner sleeve guarantees smooth
operation and long life. All wire ends are bird caged prior to terminal casting for superior pull-
out resistance. EPDM molded rubber components for high UV resistance & long life. Injected
molded components are manufactured from high strength POM material.

REAR HAND/
THROTTLE CLUTCH REAR BRAKE PARK BRAKE
FITS MODEL PART # PART # PART # PART #
CONTROL CABLES
ARCTIC CAT
250 2X4/4X4 02-05 0650-1372 - - -
300 2X4 02-04 0650-1372 - - -
300 4X4 02-05 0650-1372 - - -
366 FIS W/AT 09-11 0650-1331 - - -
375 2X4/4X4 W/AT 02 0650-1331 - - -
400 4X4 W/AT 03-04 0650-1331 - - -
400 4X4 W/MT 02-04 0650-1331 - - -
400 FIS 2X4 W/AT&MT 03-04 0650-1331 - - -
400 FIS 4X4 TRV 09-14 0650-1331 - - -
400 FIS 4X4 W/AT 03-08 0650-1331 - - -
400 FIS 4X4 W/MT 02-07 0650-1331 - - -
400 FIS 4X4 W/MT 08 0650-1330 - - -
400 TBX 4X4 04-06 0650-1331 - - -
400 VP 4X4 W/AT&MT 06 0650-1331 - - -
450 TRV 12 0650-1331 - - -
500 4X4 W/AT 00-02 0650-1331 - - -
500 4X4 W/MT 01 0650-1331 - - -
500 FIS 4X4 W/AT&MT 02-09 0650-1331 - - -
500 FIS TBX 4X4 02-06 0650-1331 - - -
500 FIS TRV 4X4 03-08 0650-1331 - - -
550 EFI 4X4 12-13 0650-1332 - - -
550 GT EFI 4X4 12 0650-1332 - - -
550 H1 FIS 4X4 09-11 0650-1332 - - -
550 TRV 4X4 W/AT 09-13 0650-1332 - - -
550 XT EFI 4X4 13 0650-1332 - - -
550 XT LTD EFI 12-14 0650-1332 - - -
650 4X4 H1 05-11 0650-1331 - - -
650 4X4 H1 MUD PRO 10-11 0650-1331 - - -
650 4X4 W/AT V2 04-06 0650-1358 - - -
650I 4X4 12 0650-1331 - - -
700 EFI 06-08 0650-1358 - - -
700 EFI / LTD 11-14 0650-1332 - - -
700 EFI H1 08-11 0650-1332 - - -
700 GT EFI 12 0650-1332 - - -
700 LTD EFI 13 0650-1332 - - -
700 TBX 10-14 0650-1332 - - -
700 TRV 08 0650-1358 - - -
700 TRV 09-12 0650-1332 - - -
700 XT 13-14 0650-1332 - - -
700I EFI MUDPRO / LTD 12-13 0650-1332 - - -
700I H1 TRV GT EFI 11-12 0650-1332 - - -
1000 TRV 13 0650-1333 - - -
1000 TRV / CRUISER 09-12 0650-1333 - - -
1000 TRV GT 12 0650-1333 - - -
1000 XT 13 0650-1333 - - -
1000I GT 12 0650-1333 - - -
1000I LTD EFI MUDPRO 12-14 0650-1359 - - -
H2 MUDPRO 10 0650-1359 - - -
H2 MUDPRO 11 0650-1333 - - -
H2 THUNDERCAT 08-10 0650-1333 - - -
CAN-AM
OUTLANDER 400 STD 4X4 09-15 0650-1326 - - -
OUTLANDER 400 XT 4X4 12-14 0650-1326 - - -
OUTLANDER MAX 400 EFI/STD/XT 15 0650-1326 - - -
OUTLANDER MAX 400 STD 4X4 09-14 0650-1326 - - -
