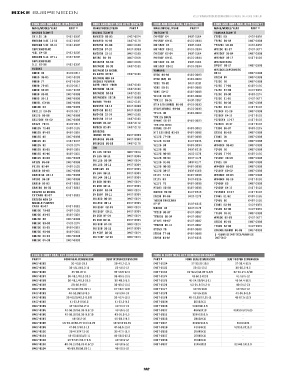

Page 132 - Moose Racing 2018

BIKE SUSPENSION
VISIT WWW.MOOSERACING.COM FOR MORE OFF-ROAD CONTENT
FORK AND DUST SEAL KITS (CON’T) FORK AND DUST SEAL KITS (CON’T) FORK AND DUST SEAL KITS (CON’T) FORK AND DUST SEAL KITS (CON’T)
MAKE/MODEL/YEAR PART # MAKE/MODEL/YEAR PART # MAKE/MODEL/YEAR PART # MAKE/MODEL/YEAR PART #
SHERCO (CON’T) SUZUKI (CON’T) TM (CON’T) YAMAHA (CON’T)
SX 2.5I 10 0407-0307 RMX250 89-90 0407-0174 EN 450F 04 0407-0104 IT250 83 0407-0178
ENDURO 3.0I 10-11 0407-0307 RMX250 91-98 0407-0179 EN 450F 09-11 0407-0304 TT250 80-82 0407-0088
ENDURO 4.5I 04-11 0407-0307 RMZ250 04-06 0407-0103 MX 450F 04 0407-0104 TTR250 99-06 0407-0178
SUPERMOTARD RMZ250 07-12 0407-0099 MX 450F 09-11 0407-0304 WR250 91-97 0407-0177
4.5I 04-08 0407-0307 RMZ250 13-16 0407-0103 EN 530F 02-04 0407-0104 WR250F 01-04 0407-0098
ENDURO 5.1I 07-11 0407-0307 DR350 90- 99 0407-0319 EN 530F 09-11 0407-0304 WR250F 05-17 0407-0103
SUPERMOTARD DR350SE 90-99 0407-0319 MX 530F 02- 04 0407-0104 WR250R DUAL
5.1I 07-08 0407-0307 DRZ400E 00-03 0407-0101 MX 530F 09-11 0407-0304 SPORT 08-17 0407-0098
SUZUKI DRZ400E CA MODEL YAMAHA WR250X SUPERMOTO
RM60 03 0407-0317 CV CARB 04-07 0407-0101 DT50 88-90 0407-0083 08-11 0407-0098
RM65 03-05 0407-0085 DRZ400E NON CA DT50 (SA) 98 0407-0083 XT250 84 0407-0088
RM80 77 0407-0134 MODELS PUMPER YZ80 79-82 0407-0317 YZ250 76 0407-0088
RM80 79-85 0407-0317 CARB 2004 - 2006 0407-0101 YZ80 93-01 0407-0089 YZ250 77-80 0407-0135
RM80 86-88 0407-0085 DRZ400K 00-03 0407-0101 YZ85 02-17 0407-0089 YZ250 83-88 0407-0178
RM80 89-01 0407-0086 DRZ400S 00-16 0407-0101 YZ100 82-83 0407-0088 YZ250 89-90 0407-0174
RM85 02-16 0407-0090 DRZ400SM 05-16 0407-0099 TTR110 08-16 0407-0387 YZ250 91-95 0407-0177
RM85L 03-16 0407-0090 RM400 79-80 0407-0135 DT X 125 (EURO) 05-06 0407-0093 YZ250 96-03 0407-0098
RM100 03 0407-0089 RMX450 10-11 0407-0099 DT125 (EURO) 99-06 0407-0093 YZ250 04-16 0407-0103
DRZ110 03-05 0407-0317 RMZ450 05-12 0407-0099 TT125 00 0407-0083 YZ250F 01-03 0407-0098
DR125 86-88 0407-0086 RMZ450 13-14 0407-0103 TTR125 DRUM YZ250F 04-17 0407-0103
DR125SE 94-02 0407-0086 RMZ450 15-16 0407-0101 BRAKE 00-07 0407-0083 YZ250FX 15-17 0407-0103
DS125 79-81 0407-0317 RM465 81-82 0407-0178 TTR125L DISC YZ250X 16-17 0407-0103
RM125 79-83 0407-0135 RM500 83-84 0407-0178 BRAKE 00-07 0407-0083 TT350 86-87 0407-0175
RM125 84-87 0407-0178 DR650RS XTZ 125 (SA) 03-10 0407-0086 XT350 85-00 0407-0088
(EURO) 90-96 0407-0093
RM125 88 0407-0096 YZ125 77-80 0407-0088 IT400 76 0407-0088
RM125 89 0407-0097 DR650SE 90-95 0407-0093 YZ125 81-83 0407-0135 IT400 79 0407-0088
RM125 90 0407-0174 DR650SE 96-16 0407-0178 YZ125 84 0407-0094 WR400F 98-00 0407-0098
RM125 91-95 0407-0179 TM YZ125 85 0407-0319 YZ400 76 0407-0088
RM125 96-00 0407-0101 EN 125 96-04 0407-0104 YZ125 86-88 0407-0178 YZ400 77-79 0407-0135
EN 125 09-11 0407-0304
RM125 01-08 0407-0099 YZ125 89-90 0407-0174 YZ400F 98-99 0407-0098
MX 125 96-04 0407-0104
SP125 86-88 0407-0086 YZ125 91-95 0407-0177 IT425 80 0407-0088
MX 125 09-11 0407-0304
PE175 82-84 0407-0135 YZ125 96-03 0407-0098 WR426F 01-02 0407-0098
SMR 125 09 0407-0304
DR200 86-88 0407-0086 YZ125 04-17 0407-0103 YZ426F 00-02 0407-0098
EN 144 09-11 0407-0304
DR200 SE 96-15 0407-0086 IT175 77-81 0407-0088 WR450F 03-04 0407-0098
SP200 86-88 0407-0086 MX 144 09-11 0407-0304 IT175 83 0407-0135 WR450F 05-16 0407-0103
DR250 90-93 0407-0319 EN 250 96-04 0407-0104 YZ175 76 0407-0088 YZ450F 03 0407-0098
DR250S 90-95 0407-0319 EN 250 09-11 0407-0304 RT180 95-98 0407-0086 YZ450F 04-17 0407-0103
DRZ250 CA MODEL EN 250F 02-04 0407-0104 BW200 85-88 0407-0315 YZ450FX 16-17 0407-0103
CV CARB 01-07 0407-0319 EN 250F 09-11 0407-0304 IT200 84-86 0407-0178 IT465 81-82 0407-0135
DRZ250 NON CA MX 250 96-04 0407-0104 TW200 TRAILWAY YZ465 80 0407-0135
MODELS PUMPER MX 250 09-11 0407-0304 87-17 0407-0315
CARB 01-07 0407-0319 MX 250F 02-04 0407-0104 WR200 92 0407-0174 IT490 83-84 0407-0178
RM250 79-82 0407-0135 MX 250F 09-11 0407-0304 TT225 86-87 0407-0087 YZ490 83-90 0407-0178
RM250 83-87 0407-0178 EN 300 97-04 0407-0104 TTR225 99-04 0407-0087 TT500 79-81 0407-0088
RM250 88 0407-0096 EN 300 09-11 0407-0304 XT225 92-07 0407-0087 WR500 92-93 0407-0177
RM250 89-90 0407-0174 MX 300 97-04 0407-0104 TTR230 05-16 0407-0087 XT500 80-81 0407-0088
RM250 91-95 0407-0179 MX 300 09-11 0407-0304 DT250 79 0407-0088 TT600 83-86 0407-0178
RM250 96-00 0407-0101 EN 400F 02-03 0407-0104 IT250 77-80 0407-0088 XT600E (EURO) 96-02 0407-0093
RM250 01-03 0407-0098 MX 400F 02-03 0407-0104 IT250 81-82 0407-0135 1 - 43MM USE 0407-0091/48MM USE
0407-0102
RM250 04-08 0407-0099
FORK & DUST SEAL KIT DIMENSION CHART FORK & DUST SEAL KIT DIMENSION CHART
PART # FORK SEAL DIMENSION DUST WIPER DIMENSION PART # FORK SEAL DIMENSION DUST WIPER DIMENSION
0407-0083 30-40.5-10.5 30-40.7-11.5 0407-0134 27-39.25-10.5 27-39.4-12.5
0407-0085 33-46.1/46.3-11 33-46.5-13 0407-0135 38-50-10.5 38-50.5-9.5
0407-0086 35-48.15-11 35-48.5-12.5 0407-0143 32-42.2/42.05-6.5/9 32-44.2-4.6/14
0407-0087 36-48.1/48.2-10.5 36-48.5-11.5 0407-0174 41-53.2-8/10 41-53.5-12
0407-0088 36-48.1/48.2-10.5 36-48.5-9.5 0407-0175 41-54.05/54.3-11 41-54.4-12.5
0407-0089 36-48.2-8/9 36-48.5-11.5 0407-0176 43-54.2/54.3-9 43-54.5-13
0407-0090 37-50.05/50.35-11 37-50.5-12.5 0407-0177 43-55-10.5 43-55.5-12
0407-0091 43-52.85/53-9.5 43-53.4-13 0407-0178 43-55-10.5 43-55.5-9.5
0407-0092 32-42.05/42.2-6.5/9 32-42.4-12.5 0407-0179 45-57.05/57.25-11 45-57.5-13.3
0407-0093 41-53.2-8/10.5 41-53.5-9.5 0407-0304 50X63X11 -
0407-0094 43-54.0/54.2-11 43-54.5-13 0407-0305 50X60X10.5 -
0407-0095 43-55.15/55.35-9.5/10 43-55.5-12 0407-0307 46X58X10 46X58.5X14.25
0407-0096 43-55.15/55.35-9.5/10 43-55.5-9.5 0407-0315 33X45X10.5 -
0407-0097 46-58.2-10 46-58.5-9.5 0407-0316 39X52X11 -
0407-0098 46-58.19/58.25-9.5/10.25 46-58.5-14.25 0407-0317 30X42X10.5 30X44X31
0407-0099 47-58.0/58.3-10 47-58.5-13.3 0407-0319 43X54X11 43X53.3X13.3
0407-0100 35-47.0/47.3-10 35-47.5-11.5 0407-0356 35X48X11 -
0407-0101 49-60.0/60.25-11 49-60.5-13.3 0407-0357 35X46X11 -
0407-0102 48-57.85/58.0-9.5 48-58.5-12 0407-0358 35X48X11 -
0407-0103 48-58.15/58.35-8.5/10 48-58.5-12 0407-0387 31X43X10 31X43.5X13.8
0407-0104 45-58.05/58.25-11 45-58.5-12

132
