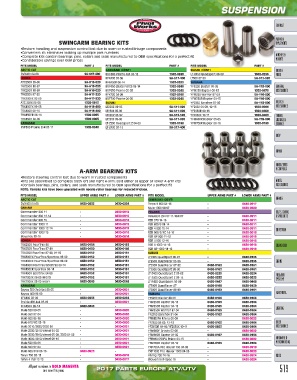

Page 519 - ATV 2017

SUSPENSION

EXHAUST

PLOWS &
SWINGARM BEARING KITS IMPLEMENTS
•Restore handling and suspension control lost due to worn or rusted linkage components
•Convenient kit eliminates looking up multiple part numbers WINCHES &
•Complete kits contain bearings, pins, collars and seals manufactured to OEM specifications for a perfect fit
•Considerable savings over OEM prices MOUNTS
FITS MODEL PART # FITS MODEL PART # FITS MODEL PART #
ARCTIC CAT KAWASAKI (CONT) SUZUKI (CONT) AUDIO &
DVX400 04-08 SA-S17-400 KVF360 Prairie 4x4 03-13 1302-0248 LT-R450 Quadsport 06-09 1302-0233 VIDEO
HONDA KFX400 03-06 SA-S17-400 LT500 87-90 SA-S12-520
ATC250R 85-86 SA-H15-020 KFX450R 08-14 1302-0232 YAMAHA
TRX250R 86-87 SA-H15-020 KVF650 Brute Force 05-14 1302-0248 YFS200 Blaster 88-06 SA-Y13-000 GENERAL
TRX250R 88-89 SA-H16-020 KVF650 Prairie 02-03 1302-0248 YFM250 Raptor 08-13 1302-0470 ACCESSORIES
TRX250X 87-88 SA-H17-320 KFX700 04-09 1302-0248 YFM350 Warrior 87-04 SA-Y16-000
TRX300EX 93-09 SA-H17-320 KVF700 Prairie 04-06 1302-0248 YFM350R Raptor 04-13 SA-Y16-000
ATC 350X 85-86 1302-0613 SUZUKI YFZ350 Banshee 87-06 SA-Y12-000 RACKS &
TRX400EX 99-08 SA-H18-400 LT230E 89-93 SA-S11-020 YFZ450 04-09, 12-13 1302-0066 ACCESSORIES
TRX400X 09-14 SA-H18-400 LT230S 85-90 SA-S11-020 YFZ450R 09-16 1302-0469
TRX450ER 06-14 1302-0065 LT250R 85-92 SA-S12-520 YFZ450X 10-11 1302-0469 TRUNKS,
TRX450R 04-09 1302-0065 LT250S 89-90 SA-S11-020 YFM660R Raptor 01-05 SA-Y19-000 LUGGAGE &
KAWASAKI LT-Z250 Quadsport Z 04-09 1302-0188 YFM700R Raptor 06-16 1302-0193 STORAGE
KVF360 Prairie 2x4 03-11 1302-0248 LT-Z400 03-13 SA-S17-400

BODY

ARMOR

HANDLEBARS
A-ARM BEARING KITS & CONTROLS
•Restore steering control lost due to worn or rusted components
•Kits are assembled to complete both left and right A-arm; sold either as upper or lower A-arm kits WHEEL
•Contain bearings, pins, collars, and seals manufactured to OEM specifications for a perfect fit ACCESSORIES
NOTE: Yamaha kits have been upgraded with needle roller bearings for reduced friction.
FITS MODEL UPPER ARMS PART # LOWER ARMS PART # FITS MODEL UPPER ARMS PART # LOWER ARMS PART #
ARCTIC CAT KAWASAKI (CONT) BRAKES
DVX400 04-08 0430-0235 0430-0234 Teryx/4 800 04-16 - 0430-0917
CAN-AM Mule 1000 94-97 - 0430-0920
Commander 800 11 - 0430-0912 POLARIS BELTS, CHAINS
Commander 800 12-14 - 0430-0915 Hawkeye 2x4 07-11/ 4x4 07 - 0430-0911 & SPROCKETS
Commander 800 15 - 0430-0913 RZR 570 14-16 - 0430-0911
Commander 1000 11 - 0430-0912 RZR 800/S 08-14 - 0430-0911
Commander 1000 12-14 - 0430-0915 RZR 4 800 10-14 - 0430-0911 DRIVETRAIN
Commander 1000 15 - 0430-0913 RZR 900/S/XC 14-16 - 0430-0918
Maverick 13-16 - 0430-0914 RZR XP 900 11-13 - 0430-0918
HONDA RZR 4 900 12-16 - 0430-0918
TRX250R FourTrax 86 0430-0154 0430-0153 RZR 4 1000 14-16 - 0430-0918 SUSPENSION
TRX250R FourTrax 87-89 0430-0150 0430-0149 RZR XP 1000 14-16 - 0430-0918
TRX250X FourTrax 87-88, 91-92 0430-0152 0430-0151 SUZUKI
TRX300EX FourTrax/ Sportrax 93-09 0430-0152 0430-0151 LT230S QuadSport 85-87 - 0430-0155
TRX400EX FourTrax/ Sportrax 99-08 0430-0152 0430-0151 LT250R QuadRacer 85-86 - 0430-0155 ENGINE
TRX400X FourTrax/ Sportrax 09-14 0430-0152 0430-0151 LT250R QuadRacer 87-92 0430-0162 0430-0161
TRX450ER Sportrax 06-14 0430-0152 0430-0151 LT250S QuadSport 89-90 0430-0162 0430-0161
TRX450R Sportrax 04-09 0430-0152 0430-0151 LT-Z400 QuadSport Z 03-08 0430-0235 0430-0234 FUEL/AIR
TRX700XX 08-09 (front) 0430-0152 0430-0151 LT-Z400 QuadSport Z 09-14 0430-0235 0430-0552 SYSTEMS
TRX700XX 08-09 (rear) 0430-0549 0430-0548 LT-R450 QuadSport 06-09 0430-0447 0430-0448
KAWASAKI LT500R QuadRacer 87 0430-0160 0430-0159
Bayou 300 2x4/ 4x4 88-05 - 0430-0921 LT500R QuadRacer 88-89 0430-0162 0430-0161
Bayou 400 93-99 - 0430-0921 YAMAHA ELECTRICAL
KFX400 03-06 0430-0235 0430-0234 YFS200 Blaster 88-06 0430-0166 0430-0164
Prairie 400 4x4 97-02 - 0430-0921 YFM250R Raptor 08-13 0430-0163 0430-0164
KFX450R 08-14 0430-0445 - YFM350R Raptor 04-13 0430-0165 0430-0164 LIGHTING
Mule 520 00-01 - 0430-0920 YFM350X Warrior 87-04 0430-0165 0430-0164
Mule 550 97-04 - 0430-0920 YFZ350 Banshee 91-06 0430-0163 0430-0164
Mule 600 05-16 - 0430-0920 YFR450FA Rhino 06-09 - 0430-0922
Mule 610/XC 05-16 - 0430-0920 YFZ450 04-09, 12-13 0430-0163 0430-0164 RIDER
Mule 2010/ 2020/ 2030 93 - 0430-0921 YFZ450R 09-16/ YFZ450X 10-11 0430-0653 0430-0164 ACCESSORIES
Mule 2500/ 2510/ diesel 94-02 - 0430-0921 YFM660F Grizzly 02-08 - 0430-0922
Mule 3000/ 3010/ diesel 03-08, 3020 01-02 - 0430-0921 YFM660R Raptor 01-05 0430-0167 0430-0164
Mule 4000/ 4010/ diesel 09-16 - 0430-0921 YFR660/ 700FA Rhino 04-13 - 0430-0922 HARDWARE &
Mule 520 00-01 - 0430-0921 YFM700R Raptor 06-16 0430-0163 0430-0164 MERCHANDISING
Mule 550 97-04 - 0430-0921 YXP700A Pro Hauler 700 04-06 - 0430-0919
Mule 600/ 610 05-16- 0430-0921 - YXP1000 Pro Hauler 1000 04-05 - 0430-0923
Teryx 750 08-13 - 0430-0916 Viking 700 14-16 - 0430-0924 INDEX
Teryx 4 750 12-13 - 0430-0917 Wolverine R-Spec 16 - 0430-0924

All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 519
are new this year.
