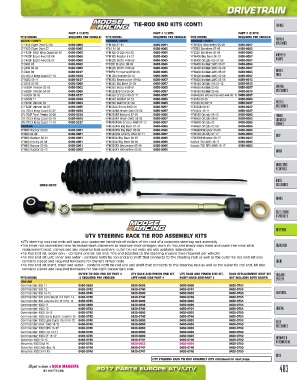

Page 483 - ATV 2017

DRIVETRAIN

TIE‑ROD END KITS (CONT) EXHAUST

PART # (2 KITS PART # (2 KITS PART # (2 KITS
FITS MODEL REQUIRED PER VEHICLE) FITS MODEL REQUIRED PER VEHICLE) FITS MODEL REQUIRED PER VEHICLE) PLOWS &
SUZUKI (CONT) YAMAHA (CONT) YAMAHA (CONT) IMPLEMENTS
LT‑F400 Eiger 2wd 02‑04 0430‑0064 YFM100 87‑91 0430‑0061 YFM350X Wolverine 06‑09 0430‑0057
LT‑F400 Eiger 2wd 07 0430‑0065 YFA1 91‑04 0430‑0065 YFZ350 Banshee 87‑99 0430‑0065
LT‑F400F 4WD King Quad 08‑11 0430‑0065 YFM125 Grizzly 04‑12 0430‑0065 YFZ350 Banshee 00‑06 0430‑0065 WINCHES &
LT‑F400F Eiger 4wd 02‑04 0430‑0064 YFM125 Raptor 11‑12 0430‑0065 YFM400 Big Bear 00‑12 0430‑0057
LT‑F400F Eiger 4wd 05‑07 0430‑0065 YFM200 Moto‑4 86‑89 0430‑0065 YFM400 Grizzly IRS 07‑08 0430‑0057 MOUNTS
LT‑Z400 03 0430‑0062 YFS200 Blaster 88‑06 0430‑0065 YFM400 Kodiak 2WD 00‑01 0430‑0065
LT‑Z400 04‑08 0430‑0065 YFM225 Moto‑4 86‑88 0430‑0065 YFM400 Kodiak 2WD 03‑04 0430‑0057
LT‑Z400 09 0430‑0227 YFB250 Timberwolf 92‑00 0430‑0065 YFM400 Kodiak 4WD 93‑02 0430‑0065 AUDIO &
LTA‑450 X King Quad 07‑10 0430‑0454 YFM 250 Raptor 08‑12 0430‑0065 YFM400 Kodiak 4WD 03‑04 0430‑0057 VIDEO
LT‑R450 06‑11 0430‑0227 YFM250 Beartracker 99‑04 0430‑0057 YFM400 Kodiak 4WD 05‑06 0430‑0615
LT‑500R 87‑90 0430‑0066 YFM250 Big Bear 07‑09 0430‑0057 YFM450 Grizzly IRS 07‑12 0430‑0615
LT‑A500F Vinson 02‑03 0430‑0062 YFM250 Moto‑4 89‑91 0430‑0065 YFM450 Kodiak 03‑04 0430‑0057 GENERAL
LT‑A500F Vinson 04‑07 0430‑0065 YFM250B Bruin 05‑06 0430‑0057 YFM450 Kodiak 05‑06 0430‑0615 ACCESSORIES
LT‑A500X 09‑10 0430‑0227 YFM350 Grizzly IRS 07‑11 0430‑0057 YFM450FX Wolverine 450 4x4 06‑10 0430‑0057
LT‑A500X 11 0430‑0454 YFM350 Raptor 04‑12 0430‑0065 YFZ450 04‑05 0430‑0065
LT‑F500F Vinson 03 0430‑0062 YFM350 Warrior 87‑04 0430‑0065 YFZ450 06‑09/12 0430‑0227 RACKS &
LT‑F500F Vinson 04‑07 0430‑0065 YFM350A Bruin 2WD 04 0430‑0057 YFZ450R 09‑17 0430‑0227 ACCESSORIES
LTA‑700 X King Quad 05‑07 0430‑0454 YFM350BA Bruin 2WD 05‑06 0430‑0057 YFZ450X 10‑11 0430‑0227
LTV‑700F Twin Peaks 04‑06 0430‑0224 YFM350ER Moto‑4 87‑95 0430‑0065 YFM550 Grizzly 09‑12 0430‑0065 TRUNKS,
LTA‑750 X King Quad 08‑10 0430‑0454 YFM350FA Bruin 4WD 04‑06 0430‑0057 YFM600 Grizzly 98‑01 0430‑0065 LUGGAGE &
LTA‑750 X King Quad 11‑15 0430‑0227 YFM350FGW Grizzly 4WD 07‑12 0430‑0057 YFM600 Grizzly 02 0430‑0065 STORAGE
YAMAHA YFM350FW Big Bear 87‑97 0430‑0065 YFM660 Grizzly 02‑08 0430‑0065
YFM50 Raptor 04‑08 0430‑0061 YFM350FW Big Bear 98‑99 0430‑0065 YFM660R Raptor 01‑05 0430‑0065
YFM80 85‑88 0430‑0061 YFM350GW Grizzly 2WD 07‑11 0430‑0057 YFM700 Grizzly 07‑17 0430‑0065 BODY
YFM80 Badger 92‑01 0430‑0061 YFM350U Big Bear 96‑97 0430‑0065 YFM700R Raptor 06‑17 0430‑0227
YFM80 Grizzly 05‑08 0430‑0061 YFM350U Big Bear 98‑99 0430‑0065 Kokiak 700 4WD 16‑17 0430‑0065
YFM80 Raptor 02‑08 0430‑0061 YFM350FX Wolverine 95‑99 0430‑0065 Kodiak 700 EPS 4WD 16‑17 0430‑0065
YFM90 Raptor 09‑12 0430‑0053 YFM350FX Wolverine 00‑05 0430‑0065 ARMOR

HANDLEBARS
& CONTROLS

WHEEL
0430‑0670 ACCESSORIES

BRAKES

BELTS, CHAINS
& SPROCKETS

DRIVETRAIN
UTV STEERING RACK TIE ROD ASSEMBLY KITS
•UTV steering rack rod ends will save your customer hundreds of dollars of the cost of a complete steering rack assembly
•The inner rod assemblies have increased shaft diameters to improve their strength; each kit includes heavy‑duty inner and outer rod ends with SUSPENSION
replacement boot, clamps and any required lock washers; outer tie rod ends are also available individually
•Tie Rod End Kit, outer only – contains one tie rod end. This end attaches to the steering knuckle (two required per vehicle)
•Tie Rod End Kit Left, Inner and outer – contains both tie rod end and shaft that connects to the steering rack as well as the outer tie rod end; kit also
contains a boot and required hardware for the left (driver) side ENGINE
•Tie Rod End Kit Right, Inner and outer – contains both tie rod end and shaft that connects to the steering rack as well as the outer tie rod end; kit also
contains a boot and required hardware for the right (passenger) side
OUTER TIE ROD END KIT PART # UTV RACK AND PINION END KIT, UTV RACK AND PINION END KIT, RACK REPLACEMENT BOOT KIT FUEL/AIR
FITS MODEL (2 REQUIRED PER VEHICLE) LEFT HAND SIDE PART # RIGHT HAND SIDE PART # (KIT INCLUDES BOTH BOOTS) SYSTEMS
CAN‑AM
Commander 800 11 0430‑0669 0430‑0698 0430‑0699 0430‑0751
Commander 800 12 0430‑0742 0430‑0740 0430‑0741 0430‑0751
Commander 800 14‑15 0430‑0745 0430‑0800 0430‑0803 0430‑0750 ELECTRICAL
Commander 800 Early Build (14 mm) 13 0430‑0745 0430‑0743 0430‑0744 0430‑0751
Commander 800 Late Build (16 mm) 13 0430‑0745 0430‑0800 0430‑0803 0430‑0751
Commander 1000 11 0430‑0669 0430‑0698 0430‑0699 0430‑0751
Commander 1000 12 0430‑0742 0430‑0740 0430‑0741 0430‑0751 LIGHTING
Commander 1000 14‑15 0430‑0745 0430‑0800 0430‑0803 0430‑0750
Commander 1000 Early Build (14 mm) 13 0430‑0745 0430‑0743 0430‑0744 0430‑0751
Commander 1000 Late Build (16 mm) 13 0430‑0745 0430‑0800 0430‑0803 0430‑0751 RIDER
Commander MAX 1000 14‑15 0430‑0745 0430‑0800 0430‑0803 0430‑0750 ACCESSORIES
Commander 1000 DPS 16‑17 0430‑0745 0430‑0800 0430‑0803 0430‑0750
Commander 1000 LTD 16‑17 0430‑0745 0430‑0800 0430‑0803 0430‑0750
Commander 1000 XT 16‑17 0430‑0745 0430‑0800 0430‑0803 0430‑0750 HARDWARE &
Maverick 1000 13‑15 0430‑0746 0430‑0747 0430‑0748 0430‑0750 MERCHANDISING
Maverick 1000 Std 16 0430‑0746 0430‑0953 0430‑0954 0430‑0750
Maverick 1000 Xds‑dps 15 0430‑0746 0430‑0747 0430‑0748 0430‑0750
Maverick 1000 Xmr 15 0430‑0746 0430‑0747 0430‑0748 0430‑0750
INDEX
UTV STEERING RACK TIE ROD ASSEMBLY KITS continued on next page.
All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 483
are new this year.
