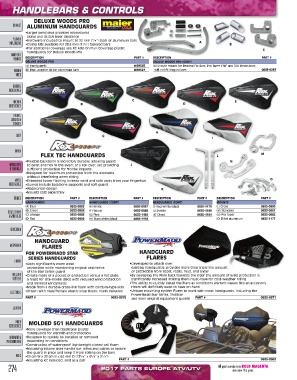

Page 274 - ATV 2017

HANDLEBARS & CONTROLS

DELUXE WOODS PRO
EXHAUST ALUMINUM HANDGUARDS
•Larger bend that provides exceptional
brake and clutch lever clearance
PLOWS & •Hardware included to mount to 22 mm ( /8”) steel or aluminum bars
7
IMPLEMENTS •Clamp kits available for 28,6 mm (1 /8”) tapered bars A B
1
•For additional coverage see XC Add-On/ Full-Coverage plastic C
handguards for Deluxe Woods Pro
WINCHES &
MOUNTS DESCRIPTION PART # DESCRIPTION PART #
DELUXE WOODS PRO DELUXE WOODS PRO (CONT)
(A) Handguards M59525 (C) U-style mount for Renthal Fat Bars, Pro Taper, FMF and TAG Metals bars;
AUDIO & (B) Repl. adapter kit for aluminum bars M59527 will not fit Magura bars 0603‑0287
VIDEO
GENERAL
ACCESSORIES
RACKS & A C D E
ACCESSORIES B

TRUNKS,
LUGGAGE &
STORAGE
F H
BODY G
I

ARMOR
FLEX TEC HANDGUARDS L M
•Flexible backbone is incredibly durable, allowing guard N
HANDLEBARS to twist and flex in the event of a roll-over, yet providing J
& CONTROLS sufficient protection for frontal impacts
•Designed for maximum protection from the elements
without interfering when riding
WHEEL •Extended lower flashing to keep wind and cold away from your fingertips O
ACCESSORIES •Guards include backbone supports and soft guard
•Waterproof design K
•Mounts sold separately
BRAKES DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART # DESCRIPTION PART #
HANDGUARDS HANDGUARDS (CONT) HANDGUARDS (CONT) MOUNTS
(A) Blue 0635‑0983 (E) White 0635‑0987 (I) Red/ white/ black 0635‑1179 (L) Cross 0635‑0980
BELTS, CHAINS (B) Green 0635‑0984 (F) Yellow 0635‑0988 (J) Stealth 0635‑1180 (M) Standard 0635‑0981
& SPROCKETS (C) Orange 0635‑0985 (G) Pink 0635‑1182 (K) Ghost 0635‑1181 (N) Pro Taper 0635‑0982
(D) Red 0635‑0986 (H) Blue/ white/ black 0635‑1178 (O) Billet aluminum 0635‑1177

DRIVETRAIN

HANDGUARD
SUSPENSION FLARES
FOR POWERMADD STAR HANDGUARD
SERIES HANDGUARDS FLARES
ENGINE
•Adds significantly more wind •Developed to attach over
protection while maintaining original aesthetics existing handguards; provides more than triple the amount
of the Star Series guard of protection from roost, rocks, mud, and snow
FUEL/AIR •Create more of a pocket of protection versus a flat plate; •By sweeping the Flare back towards the rider the amount of wind protection is
SYSTEMS a must for late-model sleds with reduced wind protection significantly increased making them must-have for cold-weather riding
and minimal windshields •The ability to quickly install the Flare as conditions warrant makes this an accessory
•Made from a durable cross-link foam with cordura-type skin riders will definitely want to have on-hand
ELECTRICAL •Attach with male/ female plastic snap rivets; rivets included •Unique mounting system Flares to work with most handguards, including the
PowerMadd Star Series, TrailStar
PART # 0635‑0875 and even original equipment guards PART # 0635‑0871
LIGHTING

RIDER MOLDED SG1 HANDGUARDS
ACCESSORIES
•More coverage than traditional plastic
handguards for warmth and protection
HARDWARE & •Designed to quickly be installed or removed
MERCHANDISING depending on conditions
•Constructed of waterproof, lightweight closed-cell foam
•Mounting system uses handle bar, wires and cables to secure
the guard in place and keep it from rolling on the bars
INDEX •34 cm W x 22 cm H x 64 mm D (13 /8” x 8 /8” x 2 /2”)
1
3
5
•Mounting kit included, sold as a pair PART # 0635‑0962
274 2017 PARTS EUROPE ATV/UTV All part numbers in BOLD MAGENTA
are new this year.
