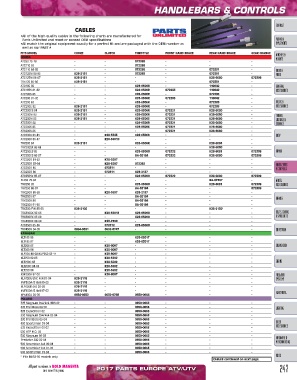

Page 247 - ATV 2017

HANDLEBARS & CONTROLS

EXHAUST
CABLES
•All of the high-quality cables in the following charts are manufactured for
Parts Unlimited and meet or exceed OEM specifications PLOWS &
•All match the original equipment exactly for a perfect fit and are packaged with the OEM number as IMPLEMENTS
well as our PART #
FITS MODEL CHOKE CLUTCH THROTTLE FRONT HAND BRAKE REAR HAND BRAKE GEAR CHANGE WINCHES &
HONDA MOUNTS
ATC90 73-78 - - 072288 - - -
ATC110 83 - - 072288 - - -
ATC110 84-85 - - 072288 - 072331 - AUDIO &
ATC125M 84-85 K28-2151 - 072288 - 072331 - VIDEO
ATC125M 86-87 K28-2151 - - - K28-6080 072309
TRX125 85-86 K28-2151 - - - 072331 -
ATC185 80 - - K28-6506R - 110042 - GENERAL
ATC185S 81-82 - - K28-6506R 072283 110042 - ACCESSORIES
ATC185S 83 - - K28-6506R - 072285 -
ATC200 81-82 - - K28-6506R 072283 110042 -
ATC200 83 - - K28-6506R - 072285 - RACKS &
ATC200E 82 K28-2151 - K28-6506R - 072285 - ACCESSORIES
ATC200ES 84 K28-2151 - K28-6506R 072321 K28-6080 -
ATC200M 84 K28-2151 - K28-6506R 072321 K28-6080 - TRUNKS,
ATC200M 85 K28-2151 - K28-6506S 072321 K28-6080 - LUGGAGE &
ATC200S 84 - - K28-6506R 072321 K28-6080 - STORAGE
ATC200S 85 - - K28-6506S 072321 K28-6080 -
ATC200S 86 - - - 072321 K28-6080 -
ATC200X 83-85 - K28-5543 K28-6506S - - - BODY
ATC200X 86-87 - K28-5501D - - - -
TRX200 84 K28-2151 - K28-6506R - K28-6084 -
TRX200SX 86-88 - - - - K28-6080 -
ATC250ES 85 - - K28-6506O 072322 K28-6081 072309 ARMOR
ATC250ES 86-87 - - BA-02184 072322 K28-6080 072309
ATC250R 81-82 - K28-5597 - - - -
ATC250R 83-84 - K28-5597 072292 - - - HANDLEBARS
ATC250R 85 - 072311 - - - - & CONTROLS
ATC250R 86 - 072311 K28-2137 - - -
ATC250SX 85-87 - - K28-6506O 072322 K28-6080 072309
FL250 79-84 - - - - BA-02137 - WHEEL
TRX250 85 - - K28-6506O - K28-6081 072309 ACCESSORIES
TRX250 86-87 - - BA-02184 - - 072309
TRX250R 86-89 - K28-5597 K28-2137 - - -
TRX250X 87 - - BA-02184 - - - BRAKES
TRX250X 88 - - BA-02184 - - -
TRX250X 91-93 - - BA-02184 - - -
TRX300/FW 83-99 K28-2105 - - - K28-2130 1 -
TRX300EX 93-06 - K28-5501E K28-6506O - - - BELTS, CHAINS
TRX300EX 07-09 - - K28-6506O - - - & SPROCKETS
TRX400EX 99-04 - K28-2139 - - - -
ATC350X 85-86 - 072312 K28-6506O - - -
TRX450R 04-09 0654-0031 0652-0747 - - - - DRIVETRAIN
KAWASAKI
KLT185 86 - - K28-8501T - - -
KLT185 87 - - K28-8501T - - -
KLT200 83 - K28-8097 - - - - SUSPENSION
KLT200 84 - K28-8097 - - - -
KLF220 88-02/ KLF250 03-11 - K28-8097 - - - -
KLT250 82-83 - K28-5502 - - - -
KLT250C 83 - K28-5502 - - - - ENGINE
KLT250C 84-85 - K28-5502 - - - -
KLT250 84 - K28-5502 - - - -
KSF250A 87-03 - K28-8097 - - - - FUEL/AIR
KLF300A/B/C 4x4 87-04 K28-2119 - - - - - SYSTEMS
KVF300A/B 4x4 99-02 K28-2119 - - - - -
KLF400B 4x4 93-99 K28-2119 - - - - -
KVF400A/B 4x4 97-02 K28-2119 - - - - - ELECTRICAL
KFX400A 03-06 0654-0032 0652-0748 0650-0664 - - -
POLARIS
325 Magnum 2x4/ 4x4 HDS 02 - - 0650-0663 - - -
325 Trail Boss 00/02 - - 0650-0663 - - - LIGHTING
325 Expedition 02 - - 0650-0663 - - -
330 Magnum 2x4/ 4x4 03-04 - - 0650-0663 - - -
330 Trail Boss 03-04 - - 0650-0663 - - -
400 Sportsman 01-04 - - 0650-0663 - - - RIDER
425 Expedition 00-02 - - 0650-0663 - - - ACCESSORIES
500 ATP H.O. 04 - - 0650-0663 - - -
500 Magnum 99-03 - - 0650-0663 - - - HARDWARE &
Predator 500 03-04 - - 0650-0663 - - - MERCHANDISING
500 Scrambler 4x4 99-04 - - 0650-0663 - - -
500 Scrambler 2x4 01-02 - - 0650-0663 - - -
500 Sportsman 01-04 - - 0650-0663 - - -
INDEX
1 Fits 88/93-95 models only.
CABLES continued on next page.
All part numbers in BOLD MAGENTA 2017 PARTS EUROPE ATV/UTV 247
are new this year.
