SHOVELHEAD

SEATS &
SISSY BARS

EXHAUST

CARBURETORS
& AIR FILTERS
5 6 7
2 4 9 10 11
1 3 8 14A 14 15
ENGINE 13 17 19
13 14A

TRANSMISSION
& DRIVELINE 18 16
12

GASKETS
& SEALS

ELECTRICAL
& LIGHTING

HANDLEBARS,

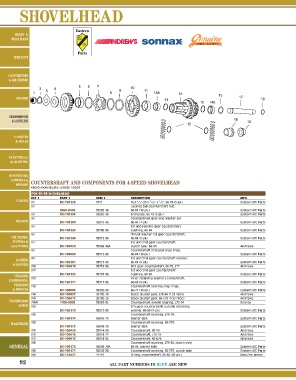

CONTROLS & COUNTERSHAFT AND COMPONENTS FOR 4-SPEED SHOVELHEAD
MIRRORS
•Sold individually unless noted
FOR 66-84 SHOVELHEAD
REF # PART # OEM # DESCRIPTION MFG.
CABLES (1) DS-193153 7911 Nut /2”-20 x /32” x /8”; 66-79 (5-pk.) Eastern MC Parts
1
7
7
(2) Locking tab countershaft nut,
0950-0416 33082-16 66-84 (10-pk.) Eastern MC Parts
(3) DS-193154 35630-36 End plate, 66-79 (5-pk.) Eastern MC Parts
(4) Countershaft gear end washer set
BRAKES DS-195160 35875-36 66-84 (7-pk.) Eastern MC Parts
(5) 1st and reverse gear countershaft
DS-194135 35789-36 bushing, 66-84 Eastern MC Parts
(6) Thrust washer 1st gear countershaft,
OIL TANKS, DS-195169 35812-36 66-84 (5-pk.) Eastern MC Parts
FILTERS & (7) 1st and 2nd gear countershaft
GAS TANKS DS-199420 35665-36A clutch gear, 66-84 Andrews
(8) Countershaft 2nd gear snap rings,
DS-188069 35810-36 66-84 (10-pk.) Eastern MC Parts
DASHES (9) DS-195161 35811-36 1st and 2nd gear countershaft washer, Eastern MC Parts
66-84 (5-pk.)
& GAUGES
(10) DS-199410 35751-36 2nd gear countershaft, 66-79, 21T Andrews
(11) 1st and 2nd gear countershaft
CHASSIS, (12) DS-194132 35791-36 bushing, 66-84 Eastern MC Parts
Inner retaining washer countershaft,
SUSPENSION, DS-195171 35917-36 66-84 (5-pk.) Eastern MC Parts
FENDERS (13) Countershaft bearing snap rings,
& WHEELS DS-188084 35920-36 66-77 (10-pk.) Eastern MC Parts
(14) DS-199427 35700-76 Stock cluster gear, L76-84 (1,23 ratio) Andrews
(14) DS-199412 35700-36 Stock cluster gear, 66-E76 (1,23 ratio) Andrews
FLOORBOARDS (14A) 1106-0003 35961-52 Countershaft needle bearing, L78-84 Sonnax
& PEGS (15) 4th gear countershaft outside retaining
DS-195170 35915-36 washer, 66-84 (5-pk.) Eastern MC Parts
(16) Countershaft bushing, L76-79,
DS-196174 36045-76 starter side Eastern MC Parts
HARDWARE (16) Countershaft bushing, 66-E76,
DS-196173 36046-36 starter side Eastern MC Parts
(17) DS-199428 35614-80 Countershaft, 80-84 Andrews
(17) DS-199414 35614-77 Countershaft, L76-79 Andrews
(17) DS-199413 35614-65 Countershaft, 66-E76 Andrews
(18) Countershaft bushing, L76-84, clutch side;
GENERAL DS-196172 36048-76A 80-84, starter side Eastern MC Parts
(18) DS-196171 36048-36 Countershaft bushing, 66-E76, clutch side Eastern MC Parts
(19) DS-174377 11115 O-ring, countershaft, 66-84 (25-pk.) Genuine James

92 ALL PART NUMBERS IN BLUE ARE NEW
