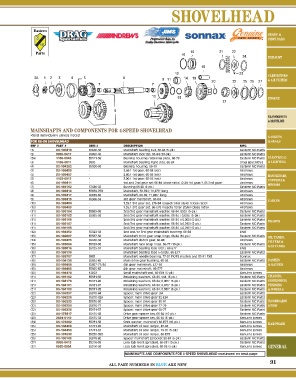

SHOVELHEAD

SEATS &
SISSY BARS

16 21 22
15 24 EXHAUST

18
12 23 CARBURETORS
2A 1 2 3 4 5 8 9 11 14 19 & AIR FILTERS
7 7 20 22 25 26 27

10 13 ENGINE
17
6
TRANSMISSION
& DRIVELINE
MAINSHAFTS AND COMPONENTS FOR 4-SPEED SHOVELHEAD
•Sold individually unless noted GASKETS
FOR 66-84 SHOVELHEAD & SEALS
REF # PART # OEM # DESCRIPTION MFG.
(1) DS-199419 35046-36 Mainshaft bearing nut, 66-84 (5-pk.) Eastern MC Parts
(2) 0950-0417 35050-40 Mainshaft lock tab, 66-84 (10-pk.) Eastern MC Parts
(2A) 1106-0043 35111-36 Bearing housing retaining plate, 66-79 Eastern MC Parts ELECTRICAL
(3) 1106-0011 9020 Mainshaft bearing right side, 66-84 Drag Specialties & LIGHTING
(4) DS-194282 35100-36 Bearing housing, 66-79 Eastern MC Parts
(5) DS-199406 - 2,44:1 1st gear, 66-84 (set) Andrews
(5) DS-199407 - 2,60:1 1st gear, 66-84 (set) Andrews HANDLEBARS,
(5) 1103-0017 - 3,00:1 1st gear, 66-84 (set) Andrews CONTROLS &
(6) DS-199411 - 1st and 2nd gear set 66-84 (close ratio) (2,24 1st gear/1,65 2nd gear) Andrews
(7) DS-193152 37436-36 Bushing 66-80 (5-pk.) Eastern MC Parts MIRRORS
(8) DS-199418 35039-70B Mainshaft, 70-E84; 12,470” long Andrews
(8) DS-199417 35039-65 Mainshaft, 66-69; 11,985” long Andrews
(9) DS-199415 35306-59 3rd gear mainshaft, 66-84 Andrews CABLES
(10) DS-199404 - 1,35:1 3rd gear set, L76-84 (caged roller style) (close ratio) Andrews
(10) DS-199405 - 1,35:1 3rd gear set, 66-E76 (needle roller style) (close ratio) Andrews
(11) DS-195164 35365-36 2nd/ 3rd gear mainshaft washer, 66-84 (std.) (5-pk.) Eastern MC Parts
(11) DS-195165 35365-36 2nd/ 3rd gear mainshaft washer, 66-84 (-0,005) (5-pk.) Eastern MC Parts
(11) DS-195166 - 2nd/ 3rd gear mainshaft washer, 66-84 (+0,005) (5-pk.) Eastern MC Parts BRAKES
(11) DS-195167 - 2nd/ 3rd gear mainshaft washer, 66-84 (+0,010) (5-pk.) Eastern MC Parts
(11) DS-195168 - 2nd/ 3rd gear mainshaft washer, 66-84 (+0,015) (5-pk.) Eastern MC Parts
(12) DS-194252 35322-38 2nd and/or 3rd gear mainshaft bushing, 66-84 JIMS
(13) DS-188067 35337-36 Mainshaft third gear snap rings, 66-84 (10-pk.) Eastern MC Parts OIL TANKS,
(14) DS-199425 35440-38 Mainshaft clutch gear, 66-84 Andrews FILTERS &
(15) DS-188066 35129-36 Mainshaft race snap rings, 66-77 (10-pk.) Eastern MC Parts GAS TANKS
(16) DS-195016 35125-37 Mainshaft bearing race (std.), 66-E77 JIMS
(16) DS-196139 - Mainshaft bearing race (+0,005), 66-E77 Eastern MC Parts
(17) DS-189707 8905 Mainshaft needle bearing, 77-81 FX/FL models and 80-81 FXB Sonnax
(18) DS-194126 35094-65 Main drive gear bushing, 66-84 Eastern MC Parts DASHES
(19) DS-199409 35067-77/84 4th gear mainshaft, L77-84 Andrews & GAUGES
(19) DS-199408 35065-65 4th gear mainshaft, 66-E77 Andrews
(20) DS-194470 12022 Small mainshaft seal, 66-E81 (5-pk.) Genuine James
(21) DS-195162 35131-36 Retaining washers, 66-84, std. (5-pk.) Eastern MC Parts CHASSIS,
(21) DS-194179 35131-80 Retaining washers, 66-84; 0,065” (5-pk.) Eastern MC Parts SUSPENSION,
(21) DS-194181 35131-81 Retaining washers, 66-84; 0,070” (5-pk.) Eastern MC Parts FENDERS
(21) DS-194182 35131-82 Retaining washers, 66-84; 0,080” (5-pk.) Eastern MC Parts & WHEELS
(22) DS-196237 35070-84 Spacer, main drive gear L84 Eastern MC Parts
(22) DS-196236 35070-82A Spacer, main drive gear 82-E84 Eastern MC Parts
(22) DS-196235 35070-80 Spacer, main drive gear 80-81 Eastern MC Parts FLOORBOARDS
(22) DS-196234 35070-77 Spacer, main drive gear 77-79 Eastern MC Parts & PEGS
(22) DS-196238 35171-37 Spacer, main drive gear 66-77 Eastern MC Parts
(23) DS-173417 35175-38 Drive gear spacer key, 66-84 (10-pk.) Eastern MC Parts
(23) 2404-0110 35175-38 Drive gear spacer key, 66-84 (5-pk.) Genuine James
(24) DS-174892 35231-36 Cork washer, mainshaft 66-E77 (10-pk.) Genuine James HARDWARE
(25) DS-194468 37741-82 Mainshaft oil seal (large), 82-84 Genuine James
(25) DS-194450 37741-67 Mainshaft oil seal (large), 79-81 (5-pk.) Genuine James
(25) DS-174538 35230-39D Mainshaft oil seal (large), 66-E79 Genuine James
(26) DS-195163 35079-80 Spacer mainshaft sprocket 80-81 (5-pk.) Eastern MC Parts
(27) 0950-0413 35216-36 Lock tab front sprocket, 66-83 (10-pk.) Eastern MC Parts
(27) 0935-0094 35216-36 Lock tab front sprocket, 66-83 (5-pk.) Genuine James GENERAL

MAINSHAFTS AND COMPONENTS FOR 4-SPEED SHOVELHEAD continued on next page
91
ALL PART NUMBERS IN BLUE ARE NEW
