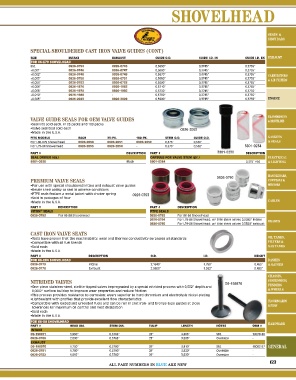

Page 71 - Oldbook 2017

SHOVELHEAD

SEATS &
SISSY BARS

SPECIAL SHOULDERED CAST IRON VALVE GUIDES (CONT)
SIZE INTAKE EXHAUST GUIDE O.D. GUIDE I.D. IN GUIDE I.D. EX EXHAUST
FOR 66‑E79 SHOVELHEAD
Std. 0926‑0754 0926‑0745 0,5650” 0,3745” 0,3735”
+0,001” 0926‑0746 0926‑0747 0,5660” 0,3745” 0,3735”
+0,002” 0926‑0748 0926‑0749 0,5670” 0,3745” 0,3735” CARBURETORS
+0,003” 0926‑0750 0926‑0751 0,5680” 0,3745” 0,3735” & AIR FILTERS
+0,004” 0926‑0752 0926‑0753 0,5690” 0,3745” 0,3735”
+0,006” 0926‑1976 0926‑1983 0,5710” 0,3745” 0,3735”
+0,008” 0926‑1978 0926‑1985 0,5730” 0,3745” 0,3735”
+0,010” 0926‑1980 ‑ 0,5750” 0,3745” 0,3735”
+0,025” 0926‑2023 0926‑2029 0,5900” 0,3745” 0,3735” ENGINE

VALVE GUIDE SEALS FOR OEM VALVE GUIDES TRANSMISSION
& DRIVELINE
•Seal kits sold each, in 25 packs and 100 packs
•Valve seal tool sold each 0926‑2053
•Made in the U.S.A.
FITS MODELS EACH 25‑PK. 100‑PK. STEM O.D. GUIDE O.D. GASKETS
For L66‑E79 Shovelhead 0926‑2050 0926‑2051 0926‑2052 0,375” 0,562” & SEALS
For L79‑84 Shovelhead 0926‑2053 0926‑2054 ‑ 0,375” 0,562” 3801‑0234

PART # DESCRIPTION PART # 3801‑0230 DESCRIPTION
SEAL DRIVER (ea.) CAPSULE FOR VALVE STEM (pr.) ELECTRICAL
3801‑0230 Black 3801‑0234 0,375” red & LIGHTING

0926‑0792 HANDLEBARS,
PREMIUM VALVE SEALS CONTROLS &
•For use with special shouldered intake and exhaust valve guides MIRRORS
•Retain their ability to seal in adverse conditions
•PTFE seals feature a metal jacket with choker spring 0926‑0793
•Sold in packages of four
•Made in the U.S.A. CABLES
PART # DESCRIPTION PART # DESCRIPTION
VITON SEALS PTFE SEALS
®
0926‑0793 For 66‑84 Shovelhead 0926‑0792 For 66‑84 Shovelhead
0926‑0794 For L79‑84 Shovelhead; w/ thin stem valves 0,3090” intake
0926‑0795 For L79‑84 Shovelhead; w/ thin stem valves 0,3384” exhaust BRAKES

CAST IRON VALVE SEATS
•Tests have proven that the machinability, wear and thermal conductivity surpasses all standards OIL TANKS,
•Compatible with all fuel blends FILTERS &
•Sold each GAS TANKS
•Made in the U.S.A.
PART # DESCRIPTION O.D. I.D. HEIGHT
FOR 66‑E84 SHOVELHEAD DASHES
0926‑0779 Intake 2,1640” 1,750” 0,450” & GAUGES
0926‑0778 Exhaust 2,0600” 1,562” 0,450”

CHASSIS,
NITRIDED VALVES DS‑198970 SUSPENSION,
•One‑piece stainless‑steel, stellite‑tipped valves impregnated by a special nitrided process with 0,002” depth and FENDERS
0,0002” surface buildup to improve wear properties and reduce friction & WHEELS
•This process provides resistance to corrosion; wears superior to hard chromium and electrolysis nickel‑plating
•Lightweight with profiles that provide excellent flow characteristics FLOORBOARDS
•Compatible with leaded and unleaded fuels and can be run in cast iron‑ and bronze‑type guides at close
tolerances for maximum oil control and heat dissipation & PEGS
•Sold each
•Made in the U.S.A.
FOR 66‑84 SHOVELHEAD HARDWARE
PART # HEAD DIA. STEM DIA. TULIP LENGTH NOTES OEM #
INTAKE
DS‑198971 1,950” 0,3765” 23° 3,885” Std. 18078‑80
0926‑0786 2,000” 0,3765” 23° 3,885” Oversize ‑
EXHAUST
DS‑198970 1,750” 0,3760” 29° 3,810” Std. 18082‑57 GENERAL
0926‑0781 1,780” 0,3760” 29° 3,820” Oversize ‑
0926‑0782 1,812” 0,3760” 29° 3,820” Oversize ‑

ALL PART NUMBERS IN BLUE ARE NEW 69
