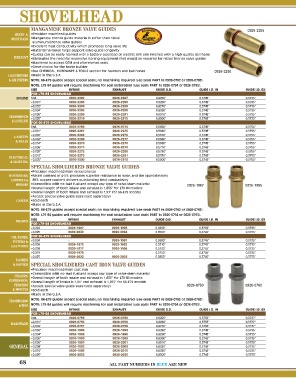

Page 70 - Oldbook 2017

SHOVELHEAD

MANGANESE BRONZE VALVE GUIDES 0926-2285
SEATS & •Precision-machined guides
SISSY BARS •Manganese bronze guide material is softer than nickel
aluminum bronze valve guides
•Excellent heat conductivity which promotes long valve life
•Material hardness helps support valve guide longevity
•Guides can be easily reamed with a battery-operated or electric drill and finished with a high-quality ball hone
EXHAUST •Eliminates the need for expensive honing equipment that would be required for nickel bronze valve guides
•Machined to accept OEM and aftermarket seals
•Great choice for the home builder
•See CHEMICAL, HARDWARE & TOOLS section for reamers and ball hones 0926-2290
CARBURETORS •Made in the U.S.A.
& AIR FILTERS NOTE: 66-E79 guides accept special seals; no machining required (use seals PART #s 0926-0792 or 0926-0793).
NOTE: L79-84 guides will require machining for seal installation (use seals PART #s 0926-0794 or 0926-0795).
SIZE INTAKE EXHAUST GUIDE O.D. GUIDE I.D. IN GUIDE I.D. EX
FOR L79‑84 SHOVELHEAD
ENGINE Std. 0926‑2282 0926‑2287 0,6250” 0,3745” 0,3735”
+0,001” 0926‑2283 0926‑2288 0,6260” 0,3745” 0,3735”
+0,002” 0926‑2284 0926‑2289 0,6270” 0,3745” 0,3735”
+0,004” 0926‑2285 0926‑2290 0,6290” 0,3745” 0,3735”
+0,006” 0926‑2286 0926‑2291 0,6310” 0,3745” 0,3735”
TRANSMISSION +0,025” 0926‑2314 0926‑2315 0,6500” 0,3745” 0,3735”
& DRIVELINE FOR 66‑E79 SHOVELHEAD
Std. 0926‑2266 0926‑2274 0,5650” 0,3745” 0,3755”
+0,001” 0926‑2267 0926‑2275 0,5660” 0,3745” 0,3755”
+0,002” 0926‑2268 0926‑2276 0,5670” 0,3745” 0,3755”
GASKETS +0,003” 0926‑2269 0926‑2277 0,5680” 0,3745” 0,3755”
& SEALS
+0,004” 0926‑2270 0926‑2278 0,5690” 0,3745” 0,3755”
+0,006” 0926‑2271 0926‑2279 0,5710” 0,3745” 0,3755”
+0,008” 0926‑2272 0926‑2280 0,5730” 0,3745” 0,3755”
+0,010” 0926‑2273 0926‑2281 0,5750” 0,3745” 0,3755”
ELECTRICAL +0,025” 0926‑2300 0926‑2313 0,5900” 0,3745” 0,3755”
& LIGHTING
SPECIAL SHOULDERED BRONZE VALVE GUIDES
•Precision-machined from nickel bronze
HANDLEBARS, •Nickel content of 4-5% produces superior resistance to wear, and the approximately
CONTROLS & 80% copper content delivers outstanding heat conductivity
MIRRORS •Compatible with no-lead fuel and accept any type of valve-stem material 0926-1987 0926-1995
•Overall length of both intake and exhaust is 1,855” for L79-84 models
•Overall length of both intake and exhaust is 1,91” for 66-E79 models
•Accept special valve guide seals (sold separately)
CABLES •Sold each
•Made in the U.S.A.
NOTE: 66-E79 guides accept special seals; no machining required (use seals PART #s 0926-0792 or 0926-0793).
NOTE: L79-84 guides will require machining for seal installation (use seals PART #s 0926-0794 or 0926-0795).
BRAKES SIZE INTAKE EXHAUST GUIDE O.D. GUIDE I.D. IN GUIDE I.D. EX
FOR L79‑84 SHOVELHEAD
+0,004 0926‑1987 0926‑1995 0,6290” 0,3745” 0,3735”
+0,025 0926‑2032 0926‑2034 0,6500” 0,3745” 0,3735”
OIL TANKS, FOR 66‑E79 SHOVELHEAD
FILTERS & +0,004 ‑ 0926‑1981 0,5690” 0,3745” 0,3735”
GAS TANKS +0,006 0926‑1975 0926‑1982 0,5710” 0,3745” 0,3735”
+0,008 0926‑1977 0926‑1984 0,5730” 0,3745” 0,3735”
+0,010 0926‑1979 ‑ 0,5750” 0,3745” 0,3735”
+0,025 0926‑2022 0926‑2028 0,5900” 0,3745” 0,3735”
DASHES
& GAUGES SPECIAL SHOULDERED CAST IRON VALVE GUIDES
•Precision-machined from cast iron
•Compatible with no-lead fuel and accept any type of valve-stem material
CHASSIS, •Overall length of both intake and exhaust is 1,855” for L79-84 models
SUSPENSION, •Overall length of intake is 1,91” and exhaust is 1,855” for 66-E79 models
FENDERS •Accept special valve guide seals (sold separately) 0926-0759 0926-0760
& WHEELS •Sold each
•Made in the U.S.A.
FLOORBOARDS NOTE: 66-E79 guides accept special seals; no machining required (use seals PART #s 0926-0792 or 0926-0793).
& PEGS NOTE: L79-84 guides will require machining for seal installation (use seals PART #s 0926-0794 or 0926-0795).
SIZE INTAKE EXHAUST GUIDE O.D. GUIDE I.D. IN GUIDE I.D. EX
FOR L79‑84 SHOVELHEAD
Std. 0926‑0759 0926‑0760 0,6250” 0,3755” 0,3737”
+0,001” 0926‑0755 0926‑0756 0,6260” 0,3755” 0,3737”
HARDWARE
+0,002” 0926‑0757 0926‑0758 0,6270” 0,3755” 0,3737”
+0,003” 0926‑1986 0926‑1994 0,6280” 0,3745” 0,3735’
+0,004” 0926‑1988 0926‑1996 0,6290” 0,3745” 0,3735”
+0,005” 0926‑1989 0926‑1998 0,6300” 0,3745” 0,3735”
+0,006” 0926‑1991 0926‑2001 0,6310” 0,3745” 0,3735”
GENERAL +0,008” 0926‑1992 0926‑2004 0,6330” 0,3745” 0,3735”
+0,010” 0926‑1993 0926‑2013 0,6350” 0,3745” 0,3735”
+0,025” 0926‑2033 0926‑2035 0,6500” 0,3745” 0,3735”

68 ALL PART NUMBERS IN BLUE ARE NEW
