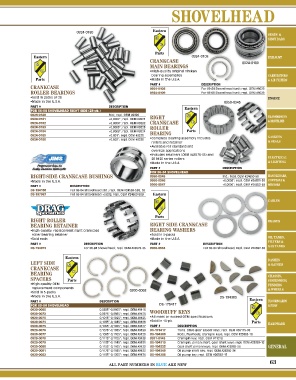

Page 65 - Oldbook 2017

SHOVELHEAD

0924-0180
SEATS &
SISSY BARS

0924-0108 EXHAUST
CRANKCASE 0924-0109
MAIN BEARINGS
•High-quality original Timken
bearing assemblies CARBURETORS
•Made in the U.S.A. & AIR FILTERS
CRANKCASE PART # DESCRIPTION
0924‑0108
For 69-84 Shovelhead (set); repl. OEM #9028
ROLLER BEARINGS 0924‑0109 For 66-68 Shovelhead (set); repl. OEM #9029
•Sold in packs of 28 ENGINE
•Made in the U.S.A. 0950-0345
PART # DESCRIPTION
FOR 66‑84 SHOVELHEAD RIGHT SIDE (28‑pk.)
0924‑0180 Std.; repl. OEM #9220 RIGHT TRANSMISSION
0924‑0181 +0,0002”; repl. OEM #9221
0924‑0182 +0,0004”; repl. OEM #9222 CRANKCASE & DRIVELINE
0924‑0183 +0,0005”; repl. OEM #9223 ROLLER
0924‑0184 +0,0008”; repl. OEM #9224 BEARING
0924‑0185 +0,001”; repl. OEM #9225 GASKETS
0924‑0186 +0,002”; repl. OEM #9226 •Complete bearing assembly includes & SEALS
rollers and retainer
•Available for standard and
oversize applications
•Includes retainers (OEM #43578-35) and
28 9120 series rollers ELECTRICAL
•Made in the U.S.A. & LIGHTING
PART # DESCRIPTION
FOR 66‑84 SHOVELHEAD
RIGHT-SIDE CRANKCASE BUSHINGS 0950‑0345 Std.; repl. OEM #24650-58 HANDLEBARS,
•Made in the U.S.A. 0950‑0346 +0,0002”; repl. OEM #24651-58 CONTROLS &
PART # DESCRIPTION 0950‑0347 +0,0004”; repl. OEM #24652-58 MIRRORS
DS‑194100 For 66-84 Shovelhead std.; repl. OEM #24599-58B, 93
DS‑197067 For 66-84 Shovelhead +0,002; repl. OEM #24600-58B

CABLES

RIGHT ROLLER BRAKES
BEARING RETAINER RIGHT SIDE CRANKCASE
•High-quality, replacement right crankcase BEARING WASHERS
roller bearing retainer •Sold in 5-packs
•Sold each •Made in the U.S.A. OIL TANKS,
FILTERS &
PART # DESCRIPTION PART # DESCRIPTION
DS‑194015 For 66-84 Shovelhead; repl. OEM #43578-35 0950‑0363 For 66-84 Shovelhead; repl. OEM #24692-58 GAS TANKS

DASHES
LEFT SIDE & GAUGES
CRANKCASE
BEARING CHASSIS,
SPACERS SUSPENSION,
•High-quality OEM FENDERS
replacement components & WHEELS
•Sold in 5-packs 0920-0068
•Made in the U.S.A. DS-194300
PART # DESCRIPTION FLOORBOARDS
FOR 69‑84 SHOVELHEAD DS-173417 & PEGS
0920‑0068 0,0895”-0,0905”; repl. OEM #9110 WOODRUFF KEYS
0920‑0072 0,0975”-0,0985”; repl. OEM #9123
0920‑0073 0,1015”-0,1025”; repl. OEM #9125 •All meet or exceed OEM specifications
0920‑0074 0,1035”-0,1045”; repl. OEM #9126 •Sold in 10-pk. HARDWARE
0920‑0075 0,1055”-0,1065”; repl. OEM #9127 PART # DESCRIPTION
0920‑0076 0,1075”-0,1085”; repl. OEM #9128 DS‑173417 Trans. drive gear spacer keys; repl. OEM #35175-38
0920‑0077 0,1095”-0,1105”; repl. OEM #9129 DS‑194300 Rods, flywheels, crankpin keys; repl. OEM #23985-18
0920‑0078 0,1115”-0,1125”; repl. OEM #9130 0921‑0143 Crankpin key; repl. OEM #11218
0920‑0079 0,1135”-0,1145”; repl. OEM #9131 DS‑194310 Crankpin, pinion shaft, gear shaft keys; repl. OEM #23985-12
0920‑0080 0,1155”-0,1165”; repl. OEM #9132 DS‑194325 Gear shaft pinion keys; repl. OEM #23985-54 GENERAL
0920‑0081 0,1175”-0,1185”; repl. OEM #9133 DS‑194349 Oil pump shaft key; repl. OEM #26340-36
0920‑0082 0,1195”-0,1205”; repl. OEM #9134 DS‑194206 Oil pump key; repl. OEM #26348-15

ALL PART NUMBERS IN BLUE ARE NEW 63
