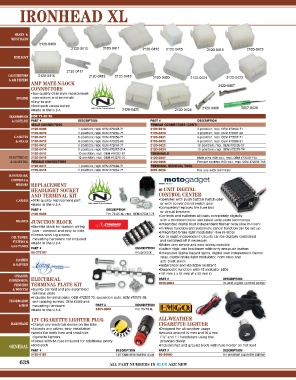

Page 640 - Oldbook 2017

IRONHEAD XL

SEATS &
SISSY BARS
2120-0409
2120-0410 2120-0411 2120-0412 2120-0413 2120-0414 2120-0415

EXHAUST

2120-0417
CARBURETORS 2120-0416 2120-0418 2120-0419 2120-0420 2120-0422
& AIR FILTERS 2120-0421
AMP MATE-N-LOCK
CONNECTORS 2120-0407
•Top-quality OEM-style replacement
ENGINE connectors and terminals
•Easy to use
•Sold each unless noted
•Made in the U.S.A. 2120-0423 2120-0424 2120-0408 3807-0029
TRANSMISSION FOR 71‑85 XL
& DRIVELINE PART # DESCRIPTION PART # DESCRIPTION
MALE CONNECTORS FEMALE CONNECTORS (CONT)
2120‑0409 1-position; repl. OEM #72043-71 2120‑0419 3-position; repl. OEM #72040-71
2120‑0410 2-position; repl. OEM #72035-71 2120‑0420 4-position; repl. OEM #70291-89
GASKETS 2120‑0411 3-position; repl. OEM #72036-71 2120‑0421 6-position; repl. OEM #72037-71
& SEALS 2120‑0412 4-position; repl. OEM #70292-89 2120‑0422 8-position; repl. OEM #70288-81
2120‑0413 6-position; repl. OEM #72041-71 2120‑0423 10-position; repl. OEM #70305-87
2120‑0414 8-position; repl. OEM #70287-81A 2120‑0424 12-position; repl. OEM #72276-74
2120‑0415 10-position; repl. OEM #70293-87 TERMINALS
ELECTRICAL 2120‑0416 12-position; repl. OEM #72278-74 2120‑0407 Male pins (100-pk.); repl. OEM #72039-71A
& LIGHTING FEMALE CONNECTORS 2120‑0408 Female sockets (100-pk.); repl. OEM #72038-71A
2120‑0417 1-position; repl. OEM #72044-71 TERMINAL REMOVAL TOOL
2120‑0418 2-position; repl. OEM #72034-71 3807‑0029 For use with terminals
HANDLEBARS,
CONTROLS &
MIRRORS REPLACEMENT
HEADLIGHT SOCKET m-UNIT DIGITAL
AND TERMINAL KIT CONTROL CENTER
CABLES •OEM-quality replacement part •Operates with push button switch gear
•Made in the U.S.A. or with conventional switch gear
PART # DESCRIPTION •Completely replaces the fuse box
or circuit breakers
2120‑0426 For 75-85 XL; repl. OEM #72047-71 •Controls and switches all loads completely digitally

BRAKES JUNCTION BLOCK with a microcontroller and latest solid-state technology
•Bakelite block for custom wiring •Integrated digital load independent flasher relay (like m-Flash)
•m-Wave function and automatic cancel function can be set up
jobs – compact and easy to hide •Integrated brake light modulator (like m-Stop)
•Comes with lug screws;
OIL TANKS, mounting hardware not included •Up to eight independent circuits can be digitally controlled
FILTERS & •Made in the U.S.A. and switched off if necessary
GAS TANKS •Makes very simple and easy wiring possible
PART # DESCRIPTION •Switch high- and low-beam with only one push button
DS‑272167 4-lug block •Integrated digital hazard lights, digital load independent flasher
relay, digital brake light modulator, horn relay and
DASHES anti-theft alarm
& GAUGES •Waterproof and vibration resistant
•Diagnostic function with 15 indicator LEDs
•101 mm L x 61 mm W x 28 mm D
CHASSIS,
SUSPENSION, ELECTRICAL PART # DESCRIPTION
FENDERS TERMINAL PLATE KIT 2020‑0461 m-Unit digital control center
& WHEELS •Quality painted and pre-assembled
terminal plate
•Includes terminal plate, OEM #72303-70; expansion nuts, OEM #70574-68;
FLOORBOARDS self-tapping screws, OEM #2809 and
& PEGS mounting hardware PART # DESCRIPTION
•Made in the U.S.A. 2401‑0604 For 70-74 XL

12V CIGARETTE LIGHTER PLUG ALL-WEATHER
HARDWARE •Charge any electrical device on the bike CIGARETTE LIGHTER
•Accepts any cables, easy installation •Designed for all weather usage
•Works for both Euro and small size •Mounts around 22 mm and 25,4 mm
7
cigarette lighters ( /8” and 1”) handlebars using the
•Comes with 8A fuse included for additional safety provided clamp
GENERAL •Sold each •Includes hot and ground leads with fuse holder on hot lead
PART # DESCRIPTION PART # DESCRIPTION
2130‑0185 12V Cigarette lighter plug 86‑44410 All-weather cigarette lighter

638 ALL PART NUMBERS IN BLUE ARE NEW
