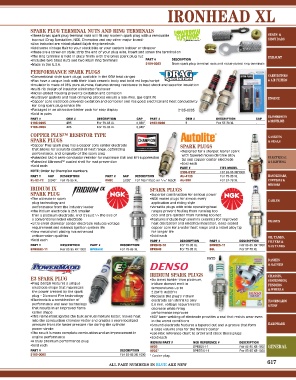

Page 619 - Oldbook 2017

IRONHEAD XL

SPARK PLUG TERMINAL NUTS AND RING TERMINALS
•These brass spark plug terminal nuts will fit any modern spark plug with a removable SEATS &
top nut (Drag Specialties, NGK, Champion and any other major brand) SISSY BARS
•Also included are nickel-plated Rajah ring terminals
•Add some vintage flair to your stock bike or your custom bobber or chopper
•These are a screw-on style; strip the end of your plug wire, insert and screw the terminal on
•The ring terminal is held in place firmly with the brass spark plug nut EXHAUST
•Includes two brass nuts and two Rajah ring terminals PART # DESCRIPTION
•Made in the U.S.A. 2104‑0263 Brass spark plug terminal nuts and nickel-plated ring terminals

PERFORMANCE SPARK PLUGS
•Conventional style spark plugs, available in the OEM heat ranges CARBURETORS
•Plus have a unique look with their black ceramic body and bold red logo/ script & AIR FILTERS
•Insulator is made of 95% pure alumina, features strong resistance to heat shock and superior insulation
•Multi-rib design of insulator eliminates flashover
•Nickel-plated housing prevents oxidation and corrosion
•Multilayer gaskets and heat-crimping process ensure a leak-free, gas-tight fit ENGINE
•Copper core electrode prevents oxidation and corrosion and has good electrical and heat conductivity
for long spark plug service life
•Packaged in an attractive blister pack for easy display 2103-0205
•Sold in pairs TRANSMISSION
PART # OEM # DESCRIPTION GAP PART # OEM # DESCRIPTION GAP
2103‑0205 4R5 For 79-85 XL 0,030” 2103‑0206 5 For 57-78 XL - & DRIVELINE
2103‑0204 4R5 For 79-85 XL 0,040”

COPPER PLUS™ RESISTOR TYPE GASKETS
SPARK PLUGS & SEALS
•Copper Plus spark plug has a copper core center electrode SPARK PLUGS
that allows for accurate control of heat range, optimizing •Designed for a sharper, leaner spark
performance, and longevity of the spark plug with tapered nickel/ chrome alloy
•Patented SAC-9 semi-conductor resistor for maximum EMI and RFI suppression tip and copper center electrode ELECTRICAL
•Patented Ultraseal™ coated shell for rust prevention •Sold each & LIGHTING
•Sold each PART # FITS MODEL
NOTE: Order by Champion numbers. 2103‑0117 For 83-85 XR1000
PART # GAP DESCRIPTION PART # GAP DESCRIPTION AU‑4123 For 79-85 XL HANDLEBARS,
7
RL‑82‑YC 0,040” For 79-85 XL RH8C 0,030” For 165/ 175cc w/ /16” reach AU‑996 For 57-78 XL CONTROLS &
MIRRORS
IRIDIUM IX SPARK PLUGS
SPARK PLUG •Superior construction for serious power
•The ultimate in spark •NGK makes plugs for almost every CABLES
plug technology and application and riding style
performance from the industry leader •Versatile plugs with wide operating heat
•The iridium electrode is 25% smaller ranges prevent fouling from running too
than a platinum electrode, and it’s just /4 the size of cool and pre-ignition from running too hot
1
a conventional nickel electrode •Features include high alumina ceramics for improved BRAKES
•Ultra-small diameter center electrode reduces voltage heat dissipation and electrical insulation, deep-seated
requirement and extends ignition system life copper core for a wider heat range and a nickel alloy tip
•New metal shell plating has enhanced for longer life
anticorrosion qualities •Sold each OIL TANKS,
•Sold each PART # DESCRIPTION PART # DESCRIPTION FILTERS &
PART # DESCRIPTION PART # DESCRIPTION BPR6HS‑10 For 79-85 XL BPR6ES‑11 For 83-85 XR 1000 GAS TANKS
BPR6EIX‑11 For 83-85 XR 1000 BPR6HIX For 79-85 XL BPR6HS For 79-85 XL B6L For 57-78 XL

IW20 DASHES
& GAUGES
IRIDIUM SPARK PLUGS CHASSIS,
E3 SPARK PLUG •Six times harder than platinum, SUSPENSION,
•Plug design features a unique iridium doesn’t melt in FENDERS
electrode shape that maximizes temperatures up to & WHEELS
the power created by the spark 2.204°C (4.000°F)
plug – Diamond Fire technology •Because the plug’s iridium
•Electrode is a combination of electrode can shrink to only FLOORBOARDS
performance and new technology 0,4 mm, voltage requirements & PEGS
that results in an improved flame decrease while firing
kernel shape performance improves
•This flame front ignites the bulk air/ fuel mixture faster, moves heat •360° laser welding of electrode provides a seal that resists wear even
into the combustion chamber faster and creates a more localized in the worst conditions
pressure front for faster pressure rise during the cylinder •Ground electrode features a tapered cut and U-groove that form HARDWARE
power stroke a large volume area for the flame’s center
•The result is more complete combustion and an improvement in •Use NGK reference chart to order and stock these plugs
engine performance •Sold each
•A truly premium performance plug IRIDIUM PART # NGK REFERENCE # DESCRIPTION
•Sold each IW20 BPR6ES-11 For 83-85 XR 1000 GENERAL
PART # DESCRIPTION IW22 1 BPR7EIX-11 For 83-85 XR 1000
2103‑0083 For 83-85 XR 1000 1 Cooler plug.

ALL PART NUMBERS IN BLUE ARE NEW 617
